Hobart Handler 175 User Manual

OM-944 Page 14

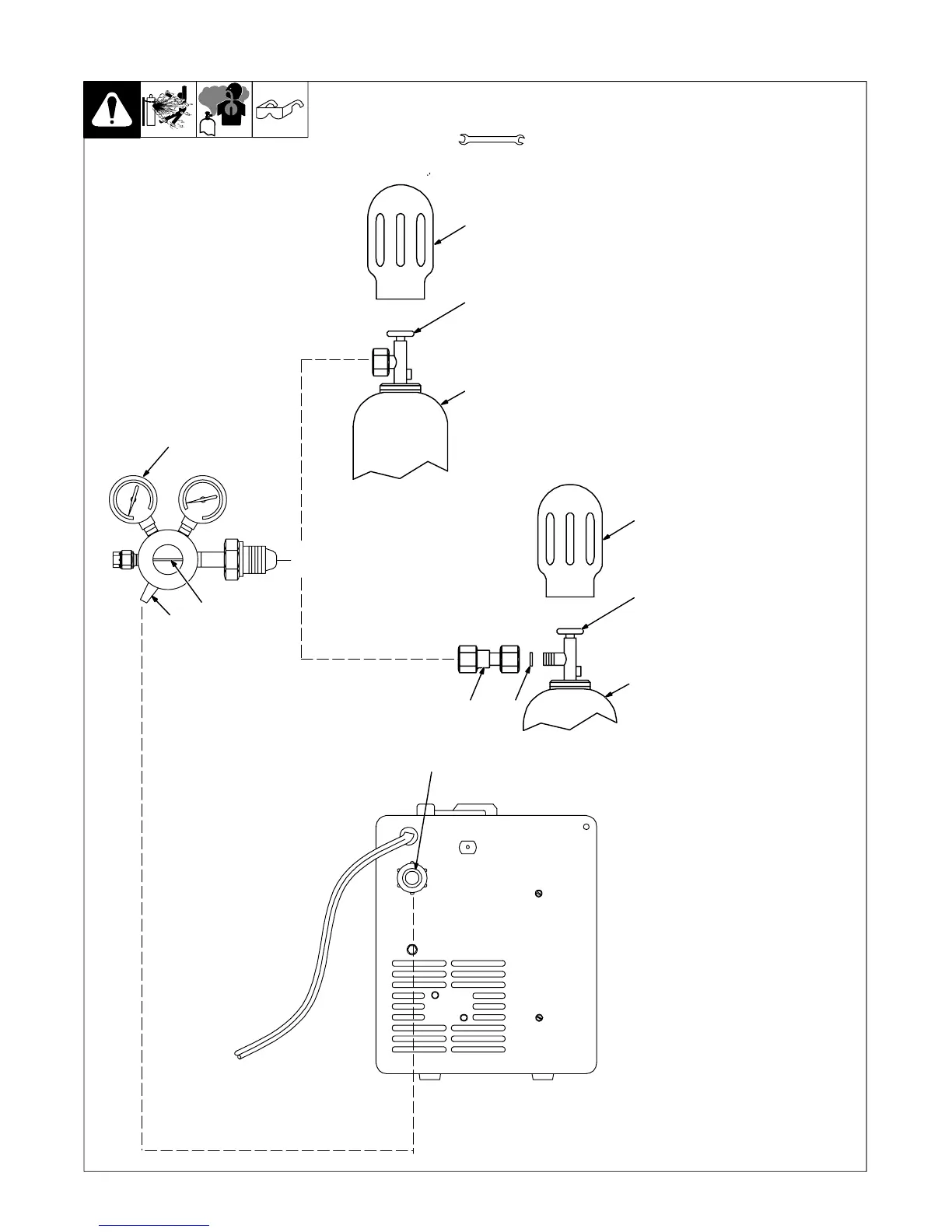

3-5. Installing Gas Supply
Obtain gas cylinder and chain to
running gear, wall, or other station-
ary support so cylinder cannot fall
and break off valve.
1 Cap
2 Cylinder Valve
Remove cap, stand to side of valve,
and open valve slightly. Gas flow
blows dust and dirt from valve.
Close valve.
3 Cylinder
4 Regulator/Flowmeter
Install so face is vertical.
5 Regulator/Flowmeter Gas
Hose Connection
6 Welding Power Source Gas
Hose Connection
Connect customer supplied gas
hose between regulator/flowmeter
gas hose connection, and fitting on
rear of welding power source.
7 Flow Adjust
Typical flow rate is 20 cfh (cubic feet
per hour). Check wire manufactur-
er’s recommended flow rate.
8CO
2
Adapter (Customer Sup-
plied)
9 O-Ring (Customer Supplied)
Install adapter with O-ring between
regulator/flowmeter and CO
2
cylinder.
Tools Needed:
CO
2
Gas
8 9
3
1
2
4
5
7
1
2
3
Argon Gas
OR
802 028 / 802 441
5/8, 1-1/8 in
6

Hobart Handler 175 Specifications

General

Input Voltage	230 V
Duty Cycle	30% at 130 A
Welding Processes	MIG (GMAW), Flux-Cored (FCAW)
Input Current	20 A
Input Phase	Single-phase
Input Frequency	60 Hz
Welding Amperage Range	25 - 175 A
Wire Feed Speed Range	40 - 700 IPM
Wire Size Capacity	4 or 8 inch spools
Output Current Range	30-175A
Wire Size Range	0.023-0.045 in
