OM-944 Page 24

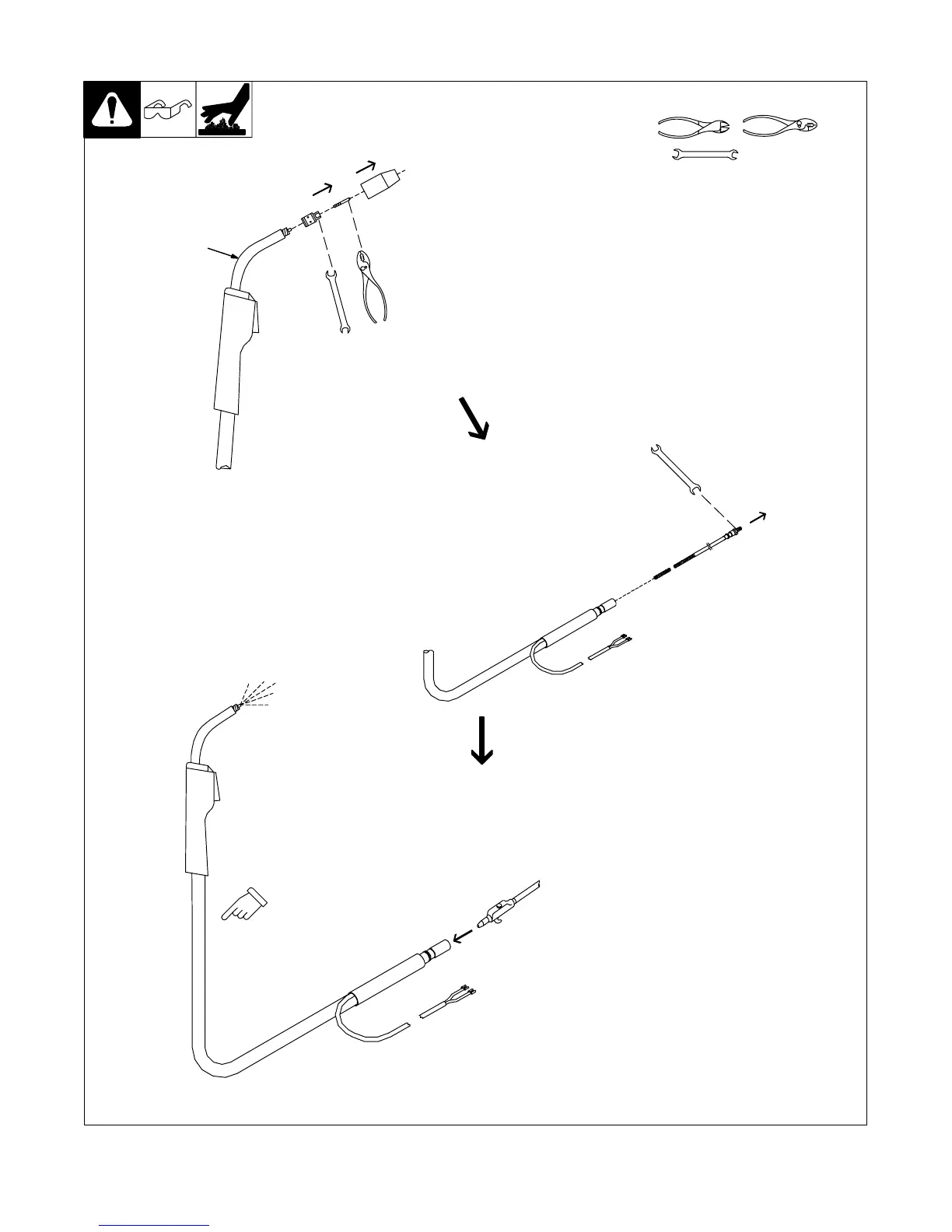

5-6. Cleaning Or Replacing Gun Liner
Ref. 802 446
8 mm / 10mm
Y Disconnect gun from unit.
Tools Needed:
To Reassemble Gun:
Insert new liner.
Install wire outlet guide so that 1/8
in (3 mm) of liner sticks out. Hand
tighten outlet guide, and then tight-
en two full turns more.
Cut liner off so that 3/4 in (19 mm)
sticks out of head tube.
Install gas diffuser, adapter, contact
tip, and nozzle.
Lay gun cable out straight
before installing new liner.
Head Tube
8 mm
Remove liner.
Remove nozzle, contact tip,
adapter, gas diffuser, and wire
outlet guide.
Blow out gun casing.
10 mm

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Hobart Handler 175 and is the answer not in the manual?

Hobart Handler 175 Specifications

General IconGeneral
Input Voltage230 V
Duty Cycle30% at 130 A
Welding ProcessesMIG (GMAW), Flux-Cored (FCAW)
Input Current20 A
Input PhaseSingle-phase
Input Frequency60 Hz
Welding Amperage Range25 - 175 A
Wire Feed Speed Range40 - 700 IPM
Wire Size Capacity4 or 8 inch spools
Output Current Range30-175A
Wire Size Range0.023-0.045 in
