Hobart Handler 175 User Manual

OM-944 Page 19
SECTION 4 – OPERATION

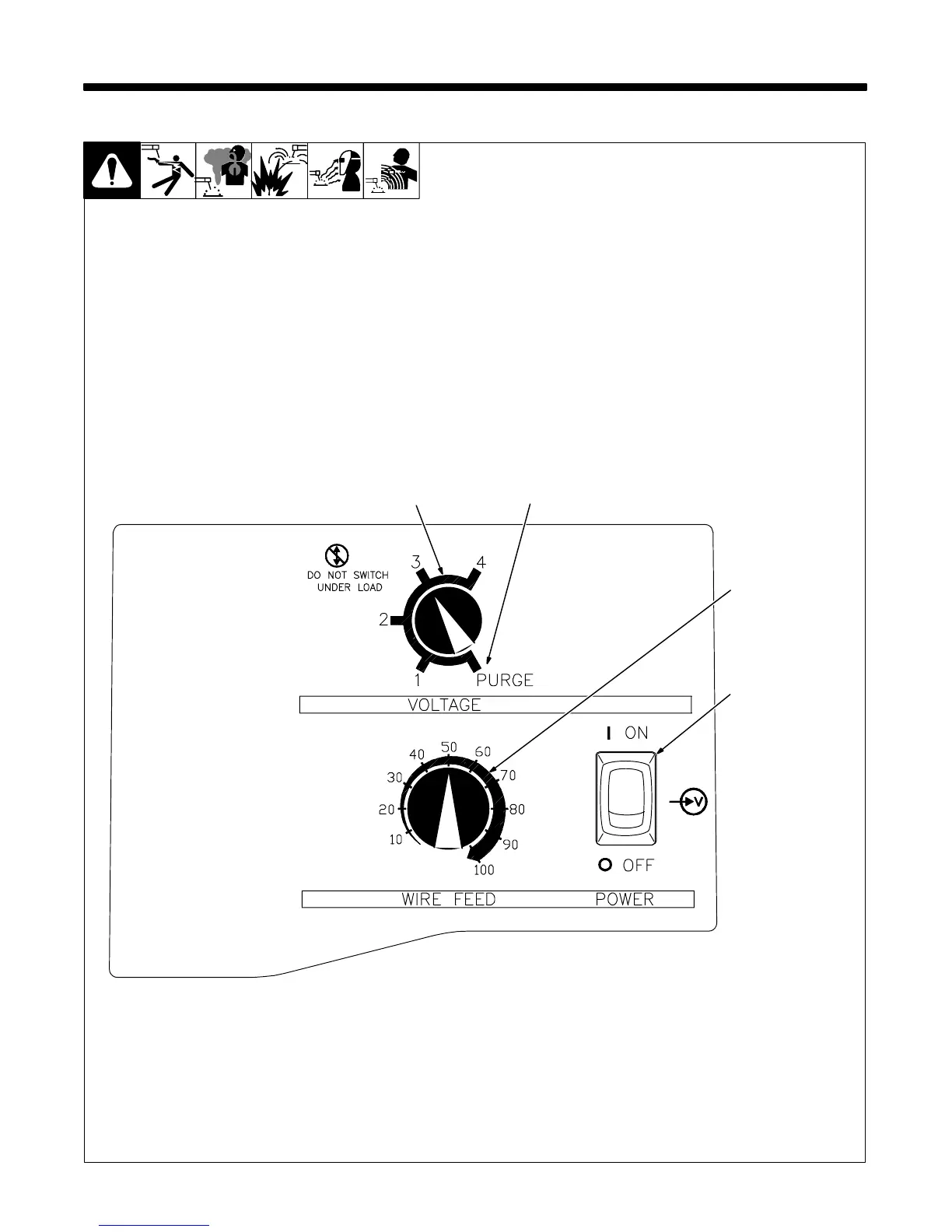

4-1. Controls
1 Voltage Switch
The higher the selected number,
the thicker the material that can be
welded (see weld setting label in
welding power source or Sections
4-2 and 4-3, as applicable). Do not
switch under load.
. Switch must “click” into detent
position 1, 2, 3, 4, or purge for
proper contact.
2 Voltage Switch - Purge “0”
Position
In purge position, fan runs but there
is no weld output.
3 Wire Speed Control
Use control to select a wire feed
speed. As Voltage switch setting in-
creases, wire speed range also in-
creases (see weld setting label in
welding power source or Sections
4-2 or 4-3, as applicable).
4 Power Switch
Ref. 196 082
2
1
3
4

Hobart Handler 175 Specifications

General

Input Voltage	230 V
Duty Cycle	30% at 130 A
Welding Processes	MIG (GMAW), Flux-Cored (FCAW)
Input Current	20 A
Input Phase	Single-phase
Input Frequency	60 Hz
Welding Amperage Range	25 - 175 A
Wire Feed Speed Range	40 - 700 IPM
Wire Size Capacity	4 or 8 inch spools
Output Current Range	30-175A
Wire Size Range	0.023-0.045 in
