Hobart Handler 175 User Manual

OM-944 Page 29
SECTION 7 – MIG WELDING (GMAW) GUIDELINES

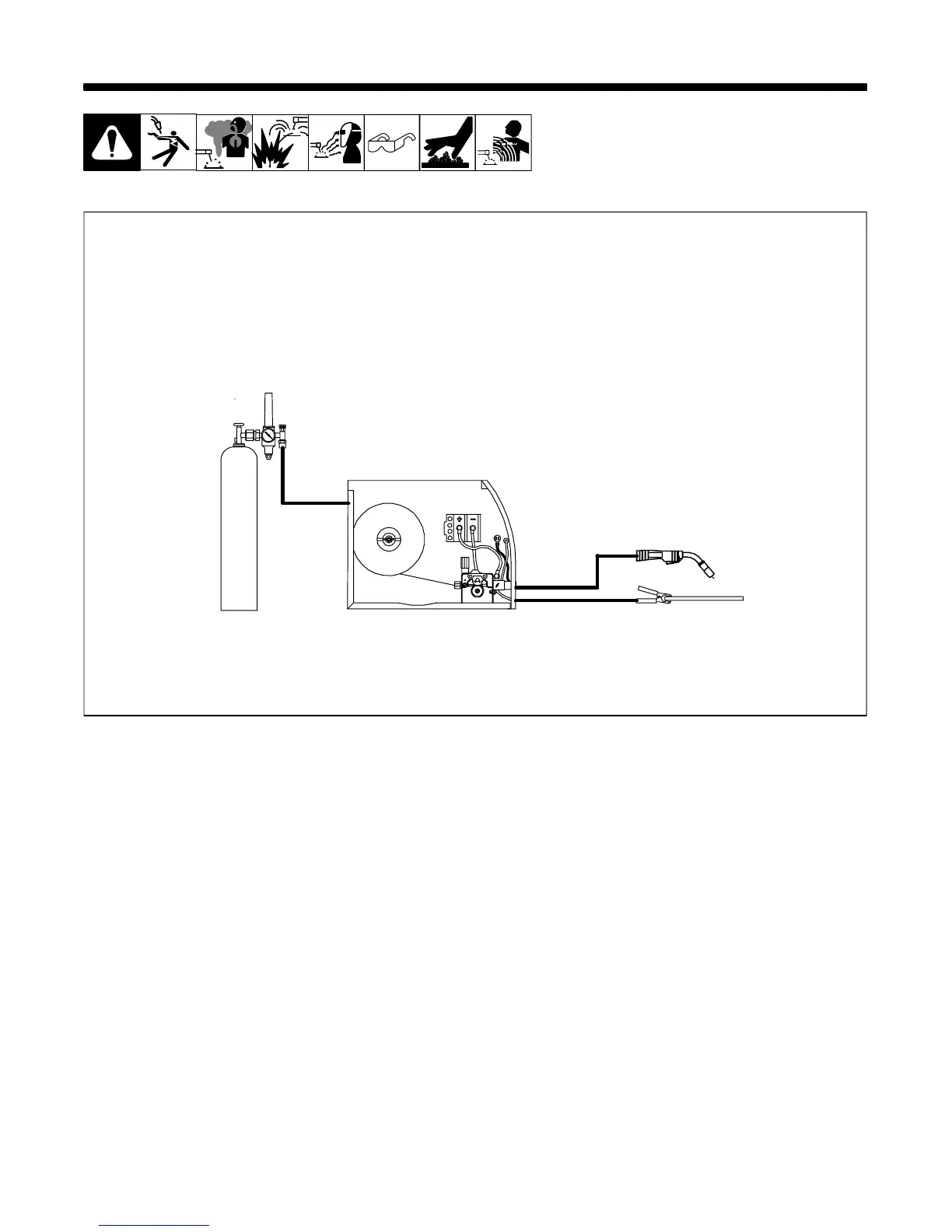

7-1. Typical MIG Process Connections
Y Weld current can damage
electronic parts in vehicles.
Disconnect both battery
cables before welding on a
vehicle. Place work clamp as
close to the weld as possible.
Wire Feeder/
Power Source
Workpiece
Gun
Regulator/
Flowmeter
Gas
Shielding Gas
Work Clamp
light mig 5/967 / Ref. 802 445

Hobart Handler 175 Specifications

General

Input Voltage	230 V
Duty Cycle	30% at 130 A
Welding Processes	MIG (GMAW), Flux-Cored (FCAW)
Input Current	20 A
Input Phase	Single-phase
Input Frequency	60 Hz
Welding Amperage Range	25 - 175 A
Wire Feed Speed Range	40 - 700 IPM
Wire Size Capacity	4 or 8 inch spools
Output Current Range	30-175A
Wire Size Range	0.023-0.045 in
