INSTALL
INSTALL MANUAL
Sol-Ark
Baery Inverter
CAN_H CAN_L CAN_H CAN_L
7 8 4 5
Schneider (Gateway)
Baery Inverter
CAN_H CAN_L CAN_H CAN_L
7 8 14 12
SMA
Baery Inverter
CAN_H CAN_L CAN_H CAN_L
7 8 4 5
Victron
Baery Inverter
CAN_H CAN_L CAN_H CAN_L
7 8 7 8
Growa
Baery Inverter
CAN_H CAN_L CAN_H CAN_L
1 2 1 2
LuxPower
Baery Inverter
CAN_H CAN_L CAN_H CAN_L
7 8 4 5
Schneider (Insight Home)
Baery Inverter
CAN_H CAN_L CAN_H CAN_L
7 8 12 10
Goodwe
Baery Inverter
CAN_H CAN_L CAN_H CAN_L
7 8 4 5

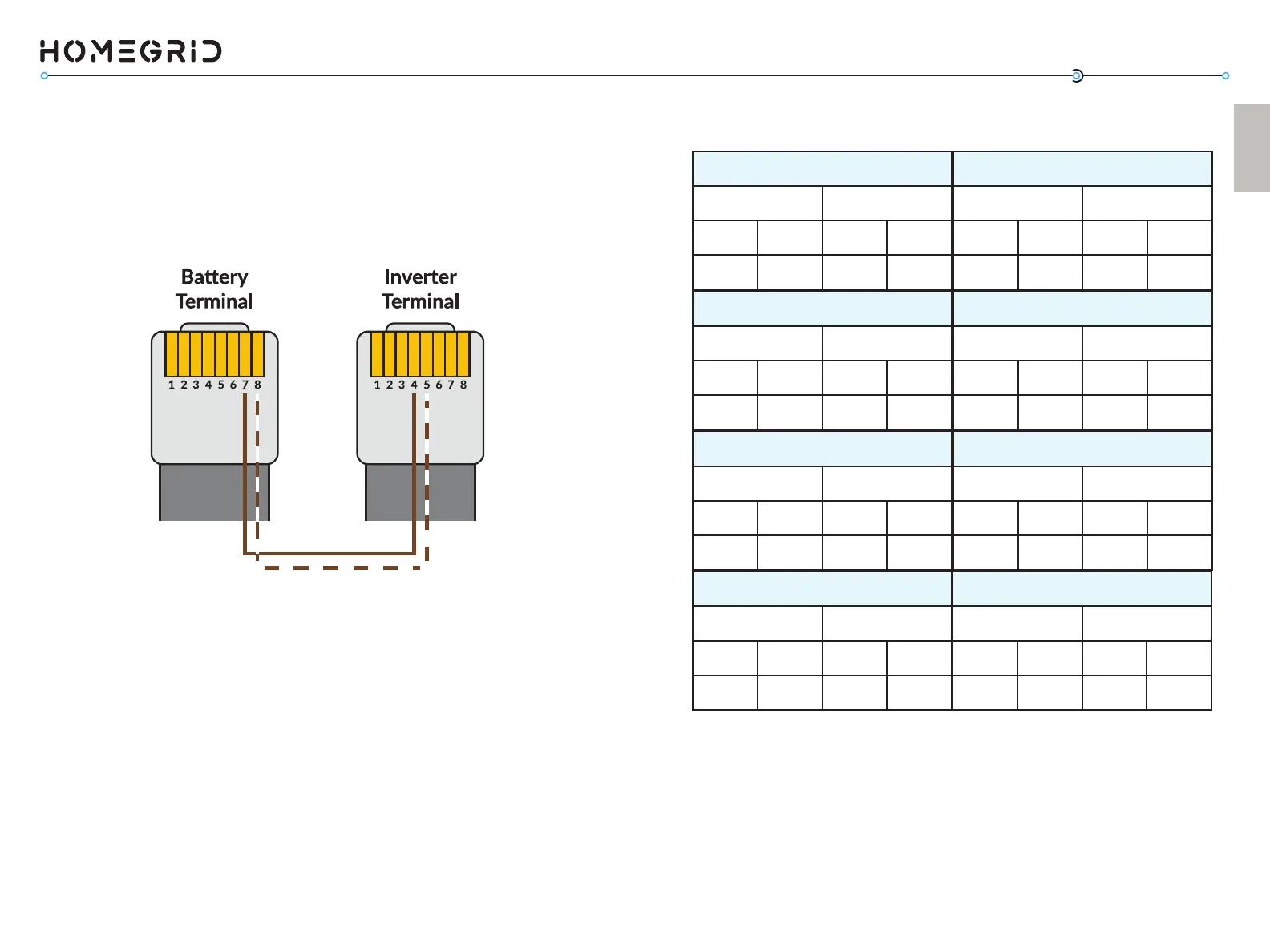

Pin-out Guide
If re-wiring the cable, please use the Brown and Brown/White
wires accordingly:
CAN_H - Brown
CAN_L - Brown/White
Example:
