Honda BF75D - T Type

106
OPERATION
Tilting the Outboard Motor
(T type)
Tilt the outboard motor to prevent the
propeller and gear case from hitting
the bottom when the boat is beached
or stopped in shallow water.
Please tilt up simultaneously, when
you mount the dual type outboard
motor.
1. Move the shift lever or the remote
control lever to the NEUTRAL
position and stop the engine.
2. Press the UP of the power trim/tilt
switch and tilt the outboard motor
to the best position in compliance.

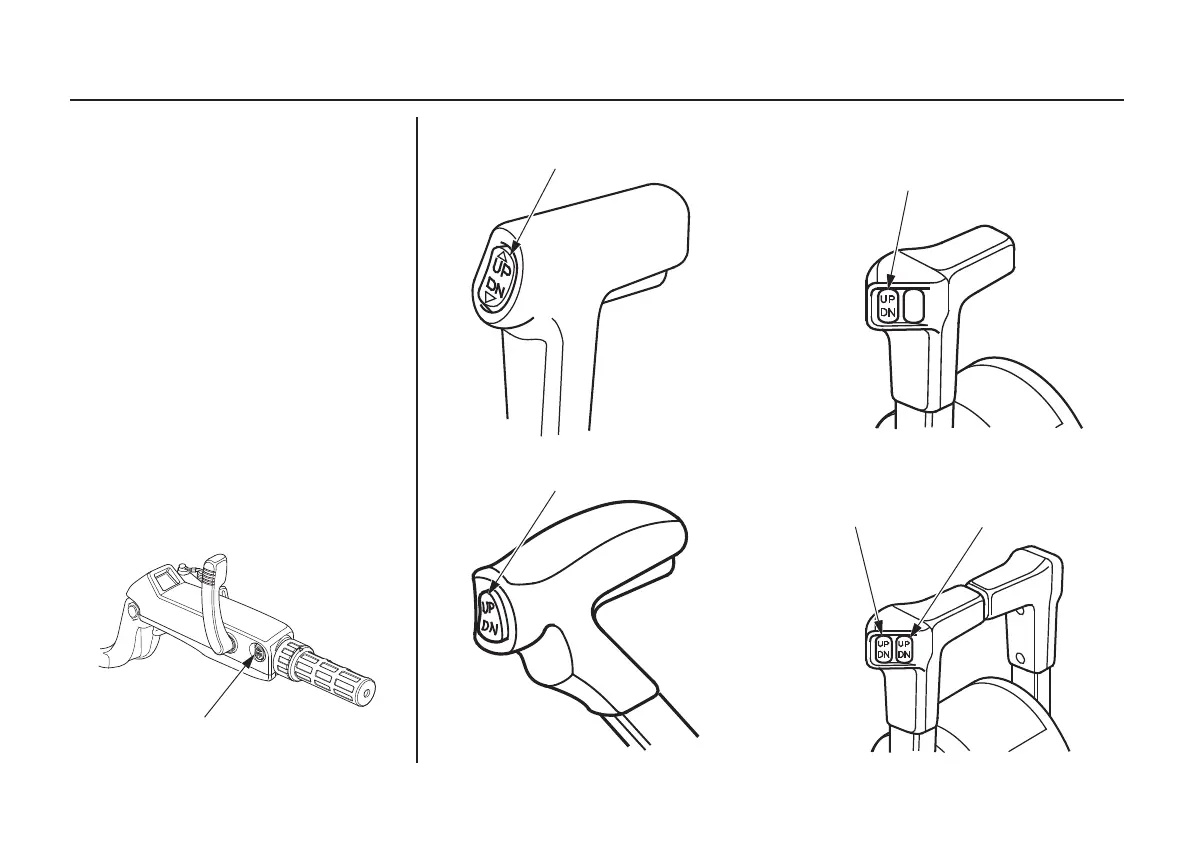

POWER TRIM/TILT SWITCH
(H type)
(R1 type)
POWER TRIM/TILT SWITCH
(R3 type)
(single type)
POWER TRIM/TILT SWITCH
(R2 type) (R3 type)
(dual type)
POWER TRIM/TILT SWITCH
POWER TRIM/TILT SWITCH
(LEFT) (RIGHT)
