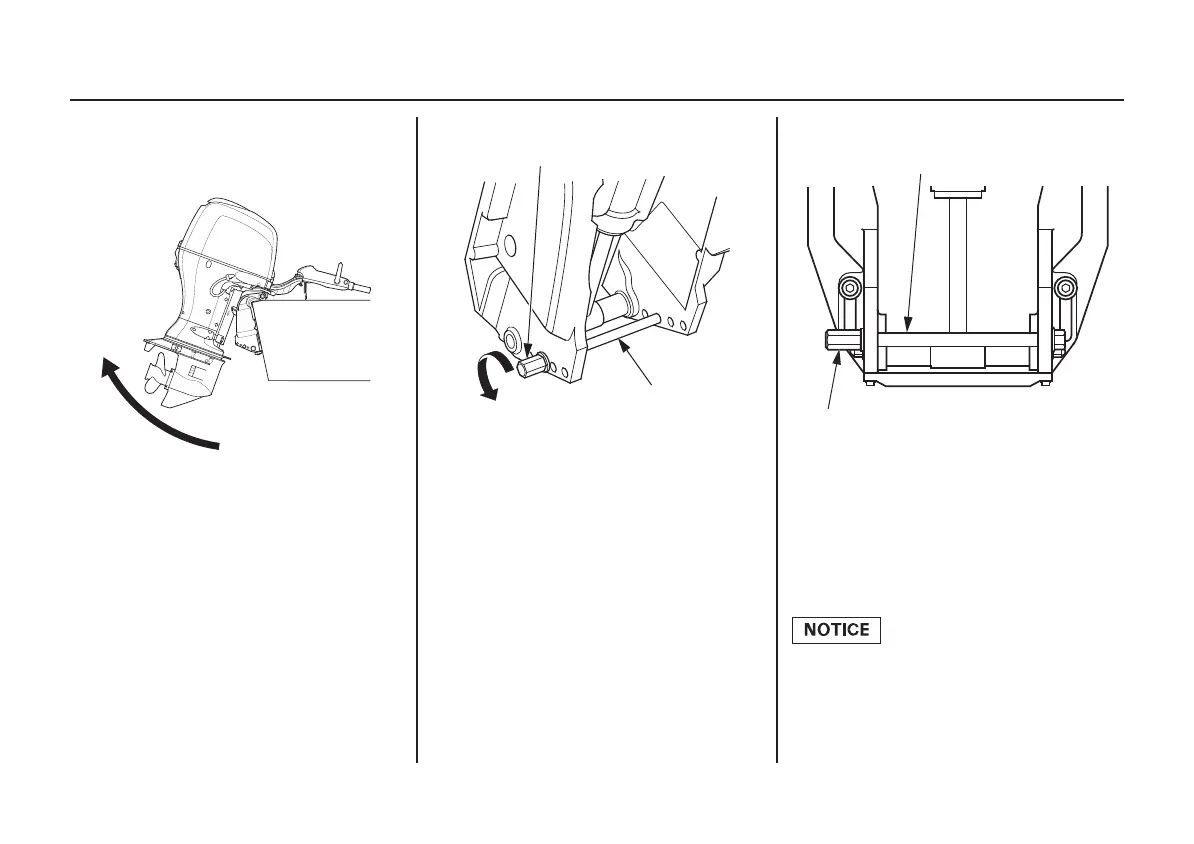

INSTALLATION
<Outboard Motor Angle
Adjustment>
(G type)
There are five adjusting stages.
1. Tilt the outboard motor to the
designated tilt angle.
2. Remove the transom angle
adjusting rod by turning it
counterclockwise.
3. Inserting the transom angle
adjusting rod in the proper hole,
tighten it securely by turning it
clockwise. After installing the
adjusting rod, pull it and be sure it
is not withdrawn.
To prevent damage to the motor or
boat, make sure the adjusting rod
is installed securely.
NUT
TRANSOM ANGLE
ADJUSTING ROD
TRANSOM ANGLE
ADJUSTING ROD
NUT
