Honda BF75D - Trim Meter (Equipped Type or Optional Equipment); Power Tilt Switch (Outboard Motor Pan)

35
CONTROLS AND FEATURES (T type)

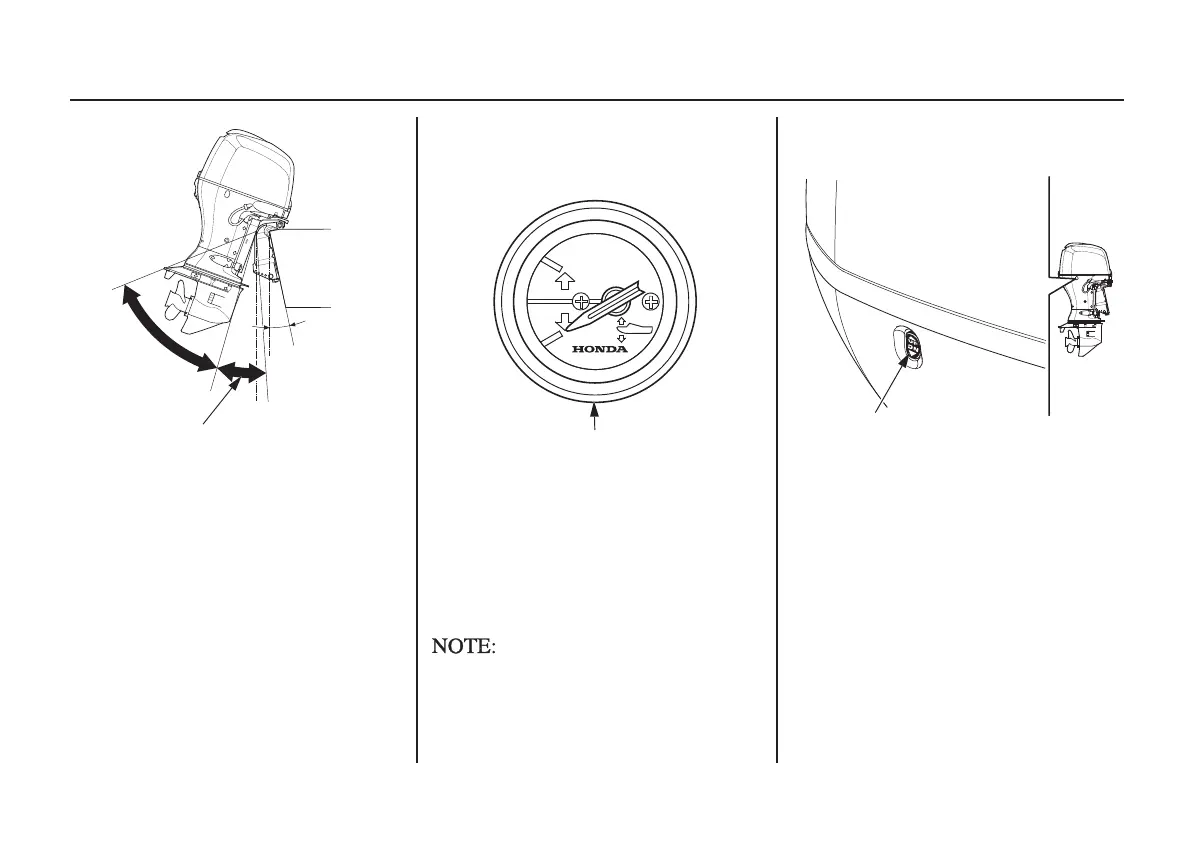

Power Tilt
Press the power trim/tilt switch to
adjust the outboard motor tilt angle 
of 16° to 68°.
By using the power trim/tilt switch
the operator can change the tilt angle
of the outboard motor for shallow
water operation, beaching, launching
from a trailer, or mooring.
Please tilt up simultaneously, when
you mount the dual type outboard
motor.
Trim Meter 
(equipped type or optional
equipment)
The trim meter has a range of
– 4° to
16° and indicates the trim angle of the
outboard motor. Refer to the trim
meter when using the power trim/tilt
switch to achieve proper boat
performance.
The outboard motor trim angle 
of
– 4° to 16° is the angle when the
outboard motor is installed on the
boat at 12°.
Power Tilt Switch 
(outboard motor pan)
The power tilt switch located on the
outboard motor pan is a convenience
switch for tilting the outboard motor
for trailering, or performing outboard
maintenance. This power tilt switch
should only be operated with the boat
being stopped and engine off.
TRIM ANGLE
68°
12°
0°
- 4°
TILT
ANGLE
16°
(when transom angle is 12°)
0° 
(VERTICAL LINE)
TRIM METER
POWER TILT SWITCH
