OPERATION
HONDA FC600 (E) xxxxxxxxxxxx -21-
Tilling Depth Adjustment
The drag bar is used to control the
tilling depth, which can be adjusted
by removing the pin and lock pin and
sliding the drag bar up and down as
necessary.
During operation, if the machine jerks
forward while tilling, press down on
the handlebars. This will cause the
drag bar to dig more deeply into the
soil.
Front Wheel
After getting to the tilling site, move the front wheel to the raised position
before tilling. Always stop the engine before lowering or raising the wheel.
To raise or lower the wheel, pull out the wheel assembly, move the wheel,
and then release the wheel assembly.

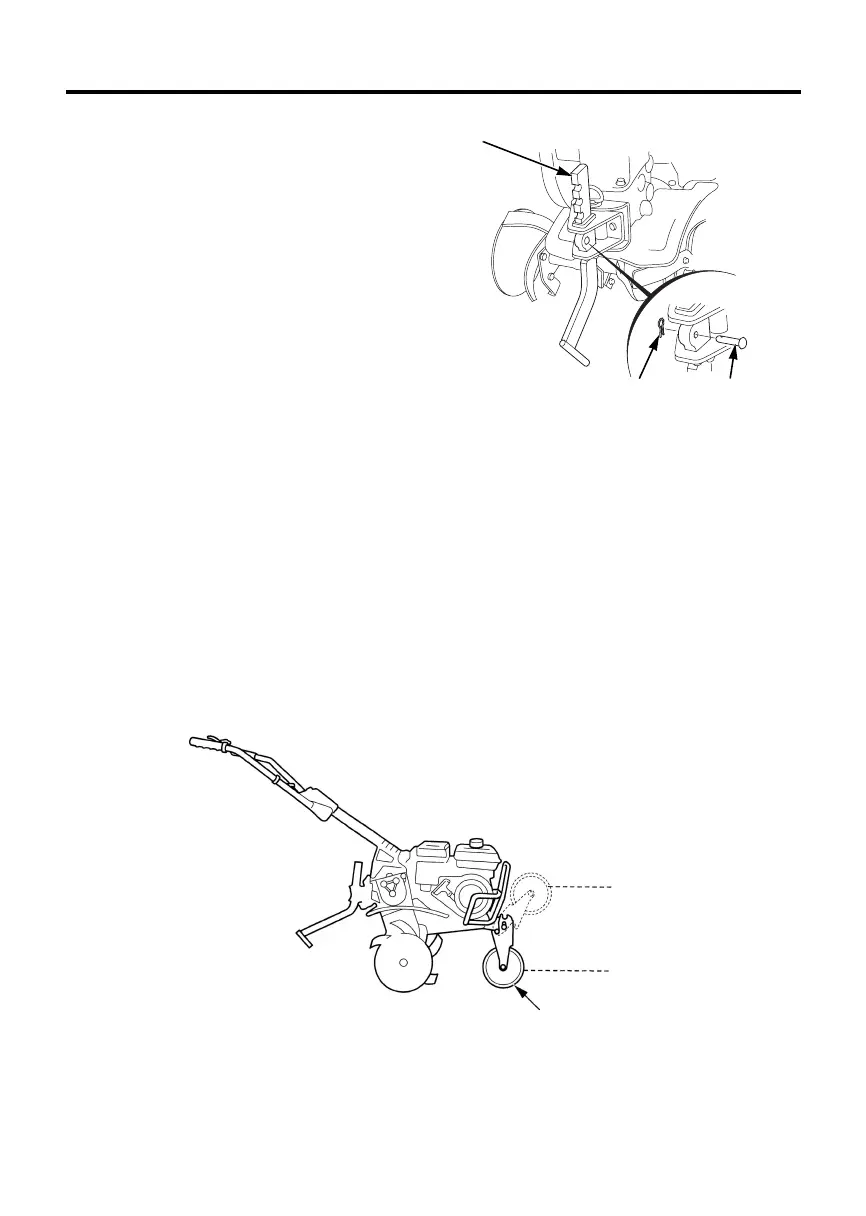

DRAG BAR
LOCK PIN
PIN
Tilling position.
Transport position.
FRONT WHEEL
