20
OPERATION
HONDA FC600 (E) xxxxxxxxxxxx -20-
OPERATING THE CONTROLS FOR TILLING
If the tines dig in but the machine will not move forward, move the handlebars
from side-to-side. When turning, push down on the handlebars to bring the
tiller’s weight to the rear; this will make turning easier.

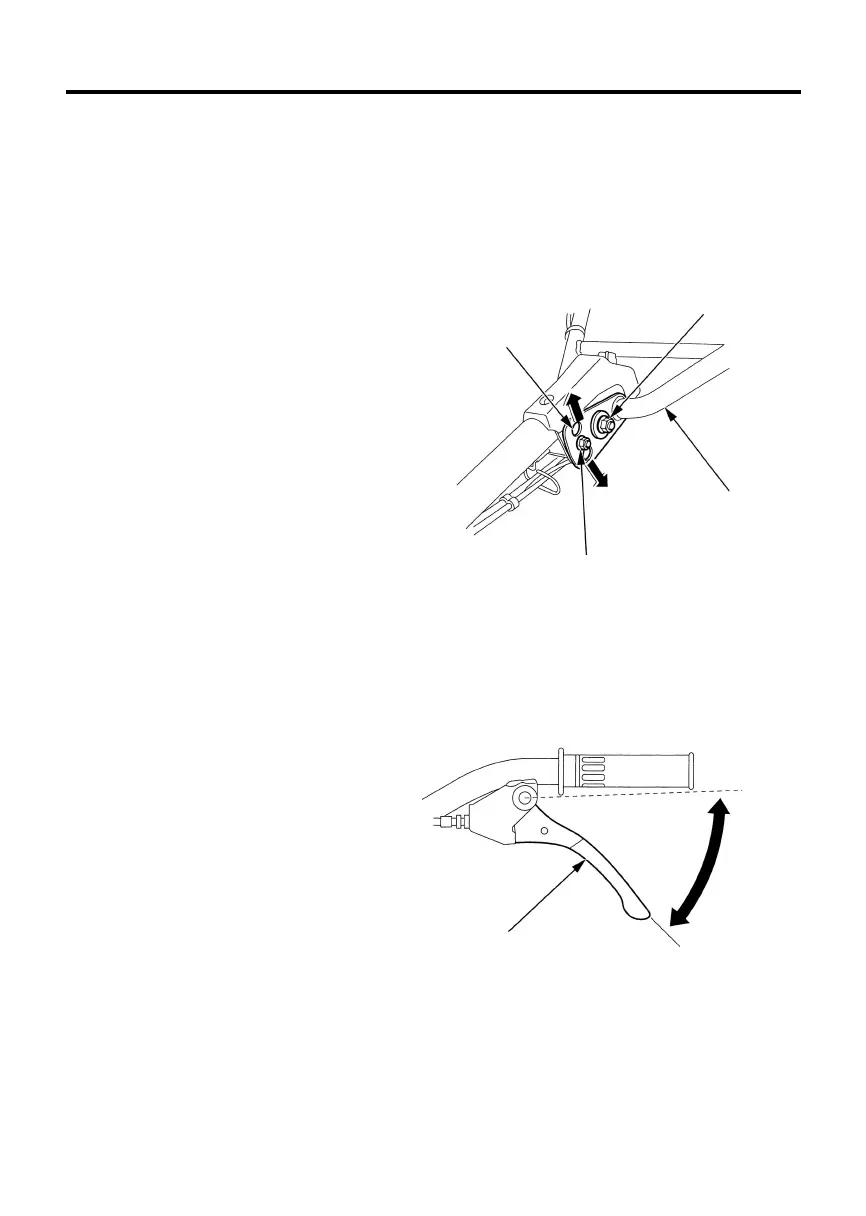

Handlebar Height Adjustment
Stop the engine before adjusting
the handlebar height.
To adjust the handlebar height:
1. Remove the 10 x 80 mm flange
bolt.
2. Loosen the 10 x 85 mm flange
bolt.
3. Reposition the handlebar.
4. Reinstall and tighten the 10 x 80
mm flange bolt.
5. Tighten the 10 x 85 mm flange
bolt.
Clutch
When the clutch lever is squeezed,
the clutch is engaged and power is
transmitted to the transmission.
When the lever is released, the
clutch is disengaged and power is
not transmitted.
HANDLEBAR
HEIGHT
ADJUSTER
10 x 85 mm
FLANGE BOLT
HANDLEBAR
10 x 80 mm FLANGE BOLT
ENGAGED
CLUTCH LEVER
DISENGAGED
