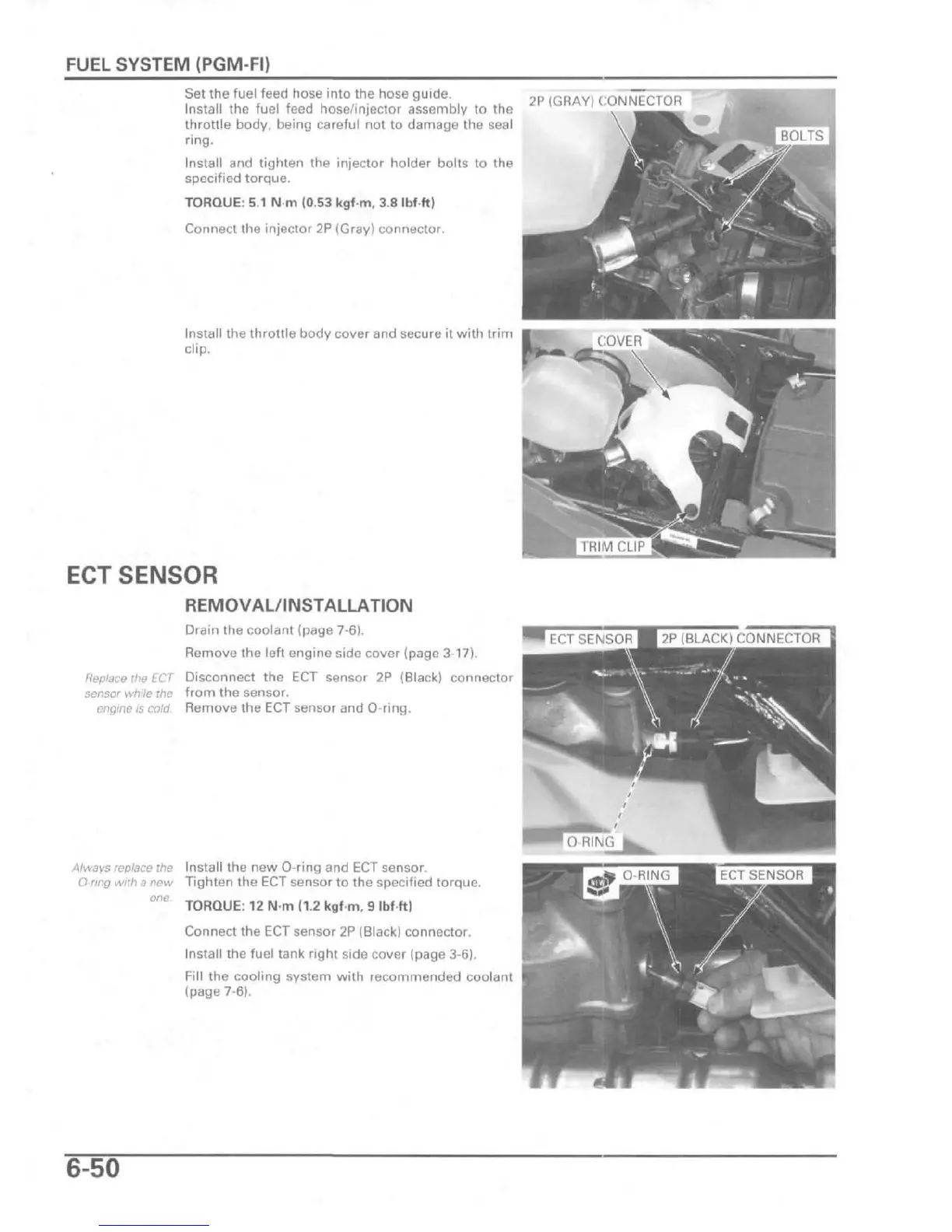

FUEL SYSTEM (PGM-FI)
Set the fuel feed hose into the hose guide.
Install the fuel feed hose/injector assembly to the
throttle body, being careful not to damage the seal
ring.
Install and tighten the injector holder bolts to the
specified torque.
TORQUE: 5.1 N m (0.53 kgf-m, 3.8 Ibf-ft)
Connect the injector 2P (Gray) connector.
2P (GRAY) CONNECTOR
Install the throttle body cover and secure it with trim
clip.
ECT SENSOR
REMOVAL/INSTALLATION
Drain the coolant (page 7-6).
Remove the left engine side cover (page 3-17).
Replace
the
ECT
Disconnect the ECT sensor 2P (Black) connector
sensor while
the from the sensor.
engine
is
cold.
Remove the ECT sensor and O-ring.
Always replace
the Install the new O-ring and ECT sensor.
O-ring
with a new Tighten the ECT sensor to the specified torque.
°
ne
TORQUE: 12 N-m (1.2 kgf m, 9 Ibf-ft)
Connect the ECT sensor 2P (Black) connector.
Install the fuel tank right side cover (page 3-6).
Fill the cooling system with recommended coolant
(page 7-6).
ECT SENSOR • 2P (BLACK) CONNECTOR
O-RING ^H ECT SENSOR
