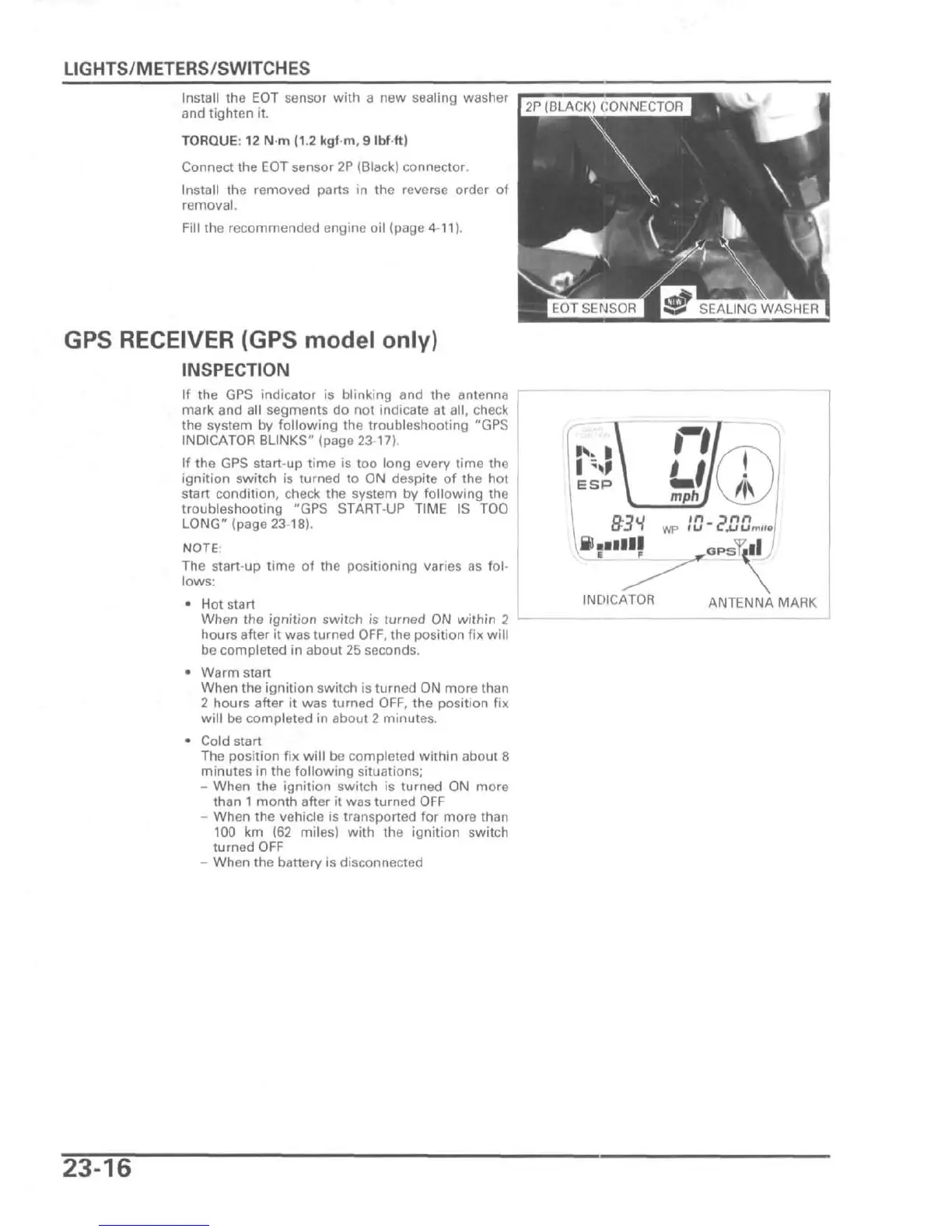

LIGHTS/METERS/SWITCHES
Install the EOT sensor with a new sealing washer
and tighten it.
TORQUE: 12 Nm (1.2 kgf m, 9 Ibfft)
Connect the EOT sensor 2P (Black) connector.
Install the removed parts in the reverse order of
removal.
Fill the recommended engine oil (page 4-11).
2P BLACK CONNECTOR
GPS RECEIVER (GPS model only)
INSPECTION
If the GPS indicator is blinking and the antenna
mark and all segments do not indicate at all, check
the system by following the troubleshooting "GPS
INDICATOR BLINKS" (page 23-17).
If the GPS start-up time is too long every time the
ignition switch is turned to ON despite of the hot
start condition, check the system by following the
troubleshooting "GPS START-UP TIME IS TOO
LONG" (page 23-18).
NOTE:
The start-up time of the positioning varies as fol-
lows:
• Hot start
When the ignition switch is turned ON within 2
hours after it was turned OFF, the position fix will
be completed in about 25 seconds.
• Warm start
When the ignition switch is turned ON more than
2 hours after it was turned OFF, the position fix
will be completed in about 2 minutes.
• Cold start
The position fix will be completed within about 8
minutes in the following situations;
- When the ignition switch is turned ON more
than 1 month after it was turned OFF
- When the vehicle is transported for more than
100 km (62 miles) with the ignition switch
turned OFF
- When the battery is disconnected
ESP
»n_ rjnn
IU C.UUmila
B3H
»••••!• ^
G
psT.llJ
INDICATOR ANTENNA MARK
23-16
