Honda TRX680FA - Meter Cover

FRAME/BODY PANELS/EXHAUST SYSTEM

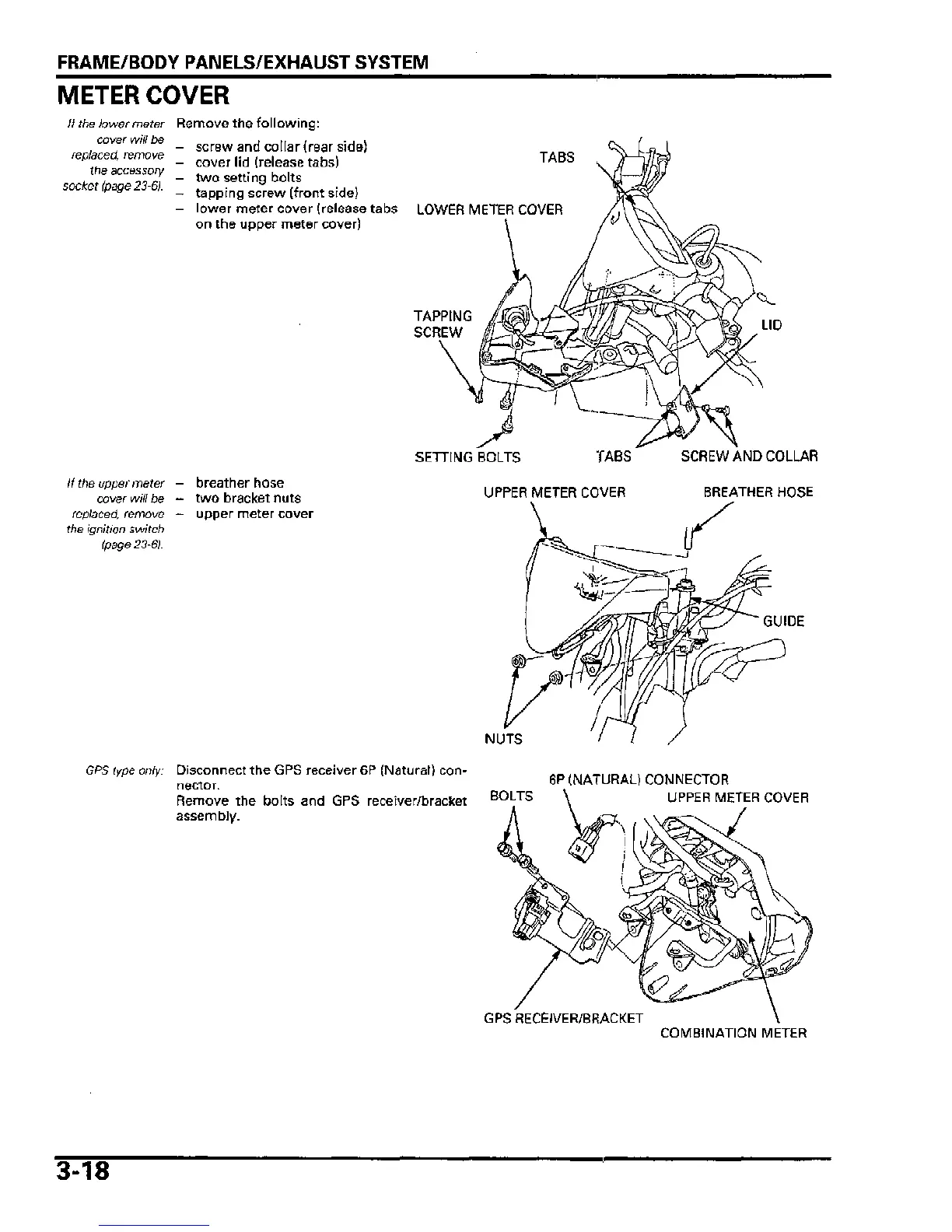

METER COVER
If the lower meter Remove the following:
cover will be
replaced, remove
the accessory
socket (page 23-6).
screw and collar (rear side)
cover lid (release tabs)
two setting bolts
tapping screw (front side)
lower meter cover (release tabs
on the upper meter cover)
TABS
LOWER METER COVER
TAPPING
SCREW
If the upper meter
cover will be
replaced, remove
the ignition switch
(page 23-6).
breather hose
two bracket nuts
upper meter cover
SETTING BOLTS TABS
UPPER METER COVER
SCREW AND COLLAR
BREATHER HOSE
GUIDE
GPS type only: Disconnect the GPS receiver 6P (Natural) con-
nector.
Remove the bolts and GPS receiver/bracket
assembly.
NUTS
6P (NATURAL) CONNECTOR
BOLTS \ UPPER METER COVER
GPS RECEIVER/BRACKET
COMBINATION METER
3-18
