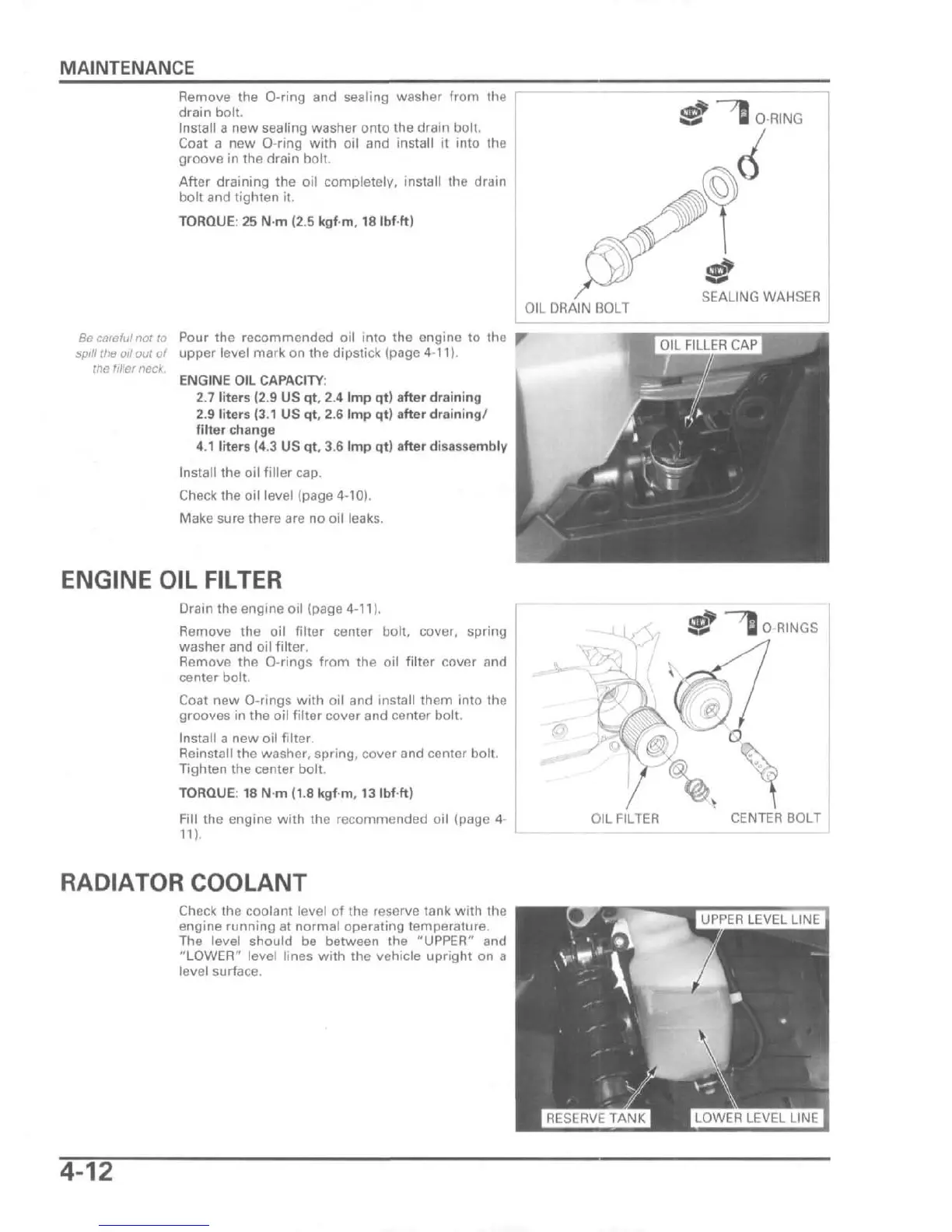

MAINTENANCE
Remove the O-ring and sealing washer from the
drain bolt.
Install a new sealing washer onto the drain bolt.
Coat a new O-ring with oil and install it into the
groove in the drain bolt.
After draining the oil completely, install the drain
bolt and tighten it.
TORQUE: 25 N-m (2.5 kgf m, 18 Ibf-ft)
Be
careful
not to Pour the recommended oil into the engine to the
spill the oil out of
the filler
neck.
upper level mark on the dipstick (page 4-11).
ENGINE OIL CAPACITY:
2.7 liters (2.9 US qt, 2.4 Imp qt) after draining
2.9 liters (3.1 US qt 2.6 Imp qt) after draining/
filter change
4.1 liters (4.3 US qt, 3.6 Imp qt) after disassembly
Install the oil filler cap.
Check the oil level (page 4-10).
Make sure there are no oil leaks.
ENGINE OIL FILTER
Drain the engine oil (page 4-11).
Remove the oil filter center bolt, cover, spring
washer and oil filter.
Remove the O-rings from the oil filter cover and
center bolt.
Coat new O-rings with oil and install them into the
grooves in the oil filter cover and center bolt.
Install a new oil filter.
Reinstall the washer, spring, cover and center bolt.
Tighten the center bolt.
TORQUE: 18 N m (1.8 kgf m, 13 Ibf-ft)
Fill the engine with the recommended oil (page 4-
11).
O-RING
OIL DRAIN BOLT
SEALING WAHSER
O-RINGS
OIL FILTER
CENTER BOLT
RADIATOR COOLANT
Check the coolant level of the reserve tank with the
engine running at normal operating temperature.
The level should be between the "UPPER" and
"LOWER" level lines with the vehicle upright on a
level surface.
4-12
