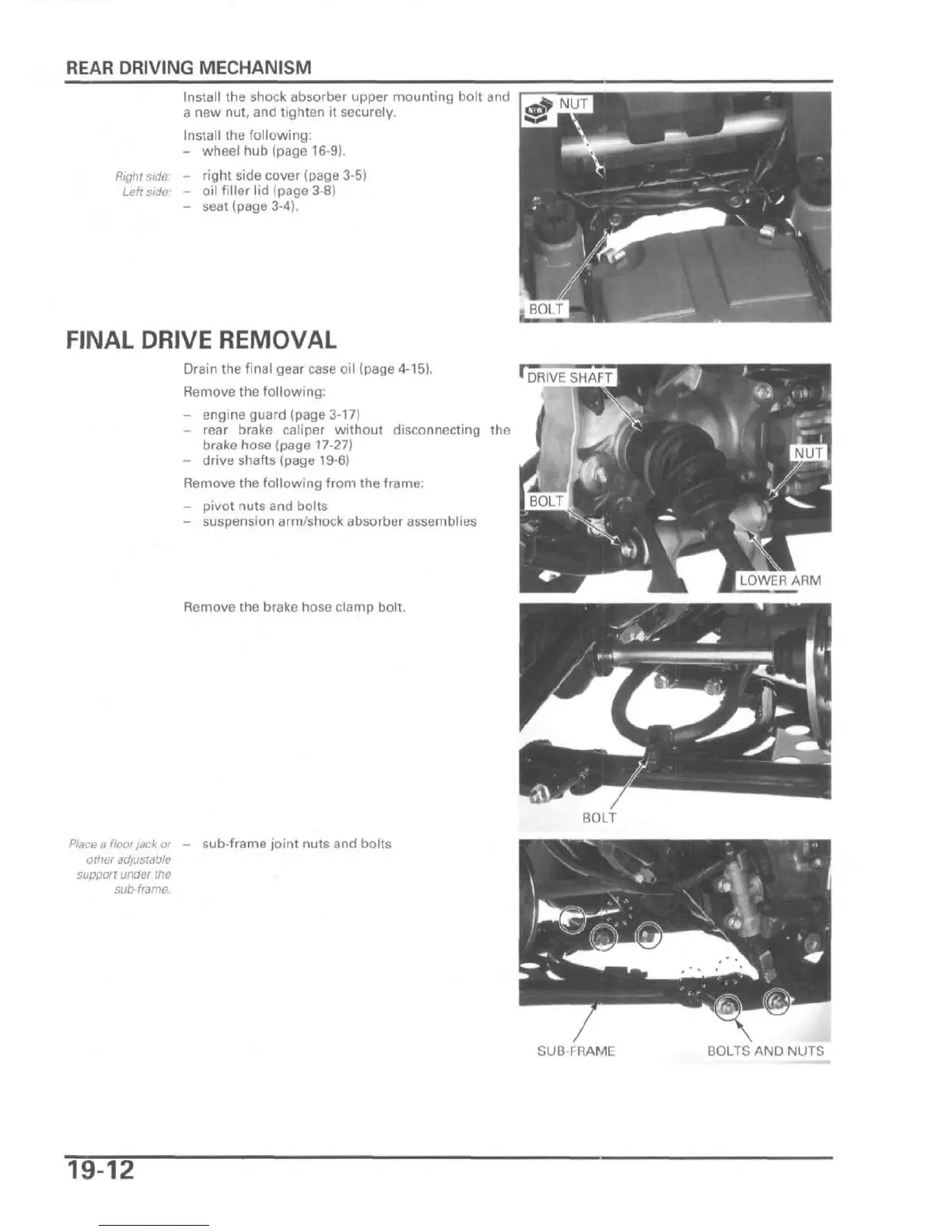

Honda TRX680FA - Final Drive Removal

REAR DRIVING MECHANISM
Install the shock absorber upper mounting bolt and
a new nut, and tighten it securely.
Install the following:
- wheel hub (page 16-9).
Right side: - right side cover (page 3-5)
Leftside: - oil filler lid (page 3-8)
- seat (page 3-4).
FINAL DRIVE REMOVAL
Place a floor jack or
other adjustable
support under the
sub-frame.
Drain the final gear case oil (page 4-15).
Remove the following:
- engine guard (page 3-17)
- rear brake caliper without disconnecting the
brake hose (page 17-27)
- drive shafts (page 19-6)
Remove the following from the frame:
- pivot nuts and bolts
- suspension arm/shock absorber assemblies
Remove the brake hose clamp bolt.
BOLT
- sub-frame joint nuts and bolts
SUB-FRAME BOLTS AND NUTS
19-12
