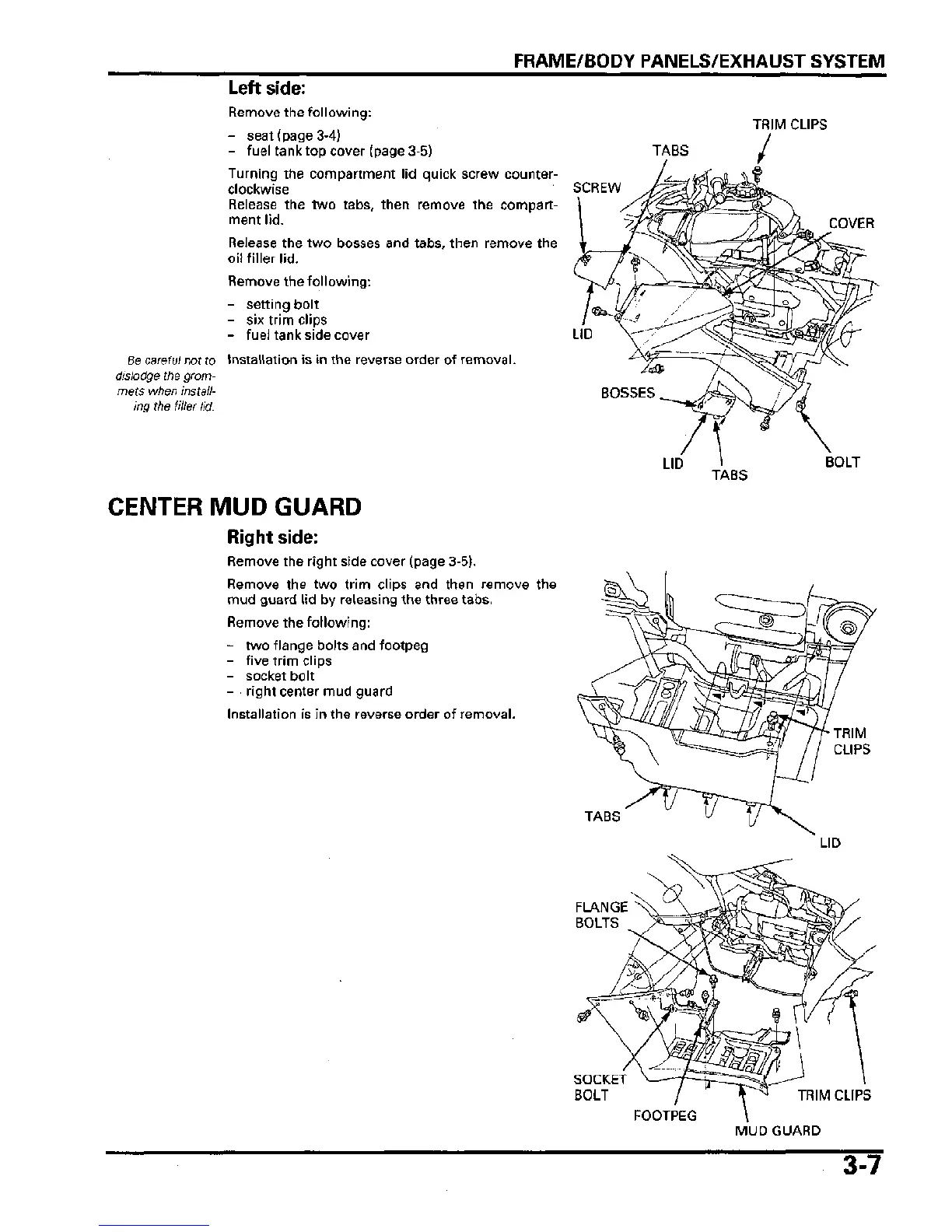

Honda TRX680FA - Center Mud Guard

FRAME/BODY PANELS/EXHAUST SYSTEM
Be careful not to
dislodge the grom-
mets when install-
ing the filler lid.
Left side:
Remove the following:
- seat (page 3-4)
- fuel tank top cover (page 3-5)
Turning the compartment lid quick screw counter-
clockwise
Release the two tabs, then remove the compart-
ment lid.
Release the two bosses and tabs, then remove the
oil filler lid.
Remove the following:
- setting bolt
- six trim clips
- fuel tank side cover
Installation is in the reverse order of removal.
TRIM CLIPS
TABS
SCREW
COVER
LID
CENTER MUD GUARD
Right side:
Remove the right side cover (page 3-5).
Remove the two trim clips and then remove the
mud guard lid by releasing the three tabs.
Remove the following:
- two flange bolts and footpeg
- five trim clips
- socket bolt
- • right center mud guard
Installation is in the reverse order of removal.
SOCKET
BOLT
FOOTPEG
TRIM CLIPS
MUDGUARD
3-7
