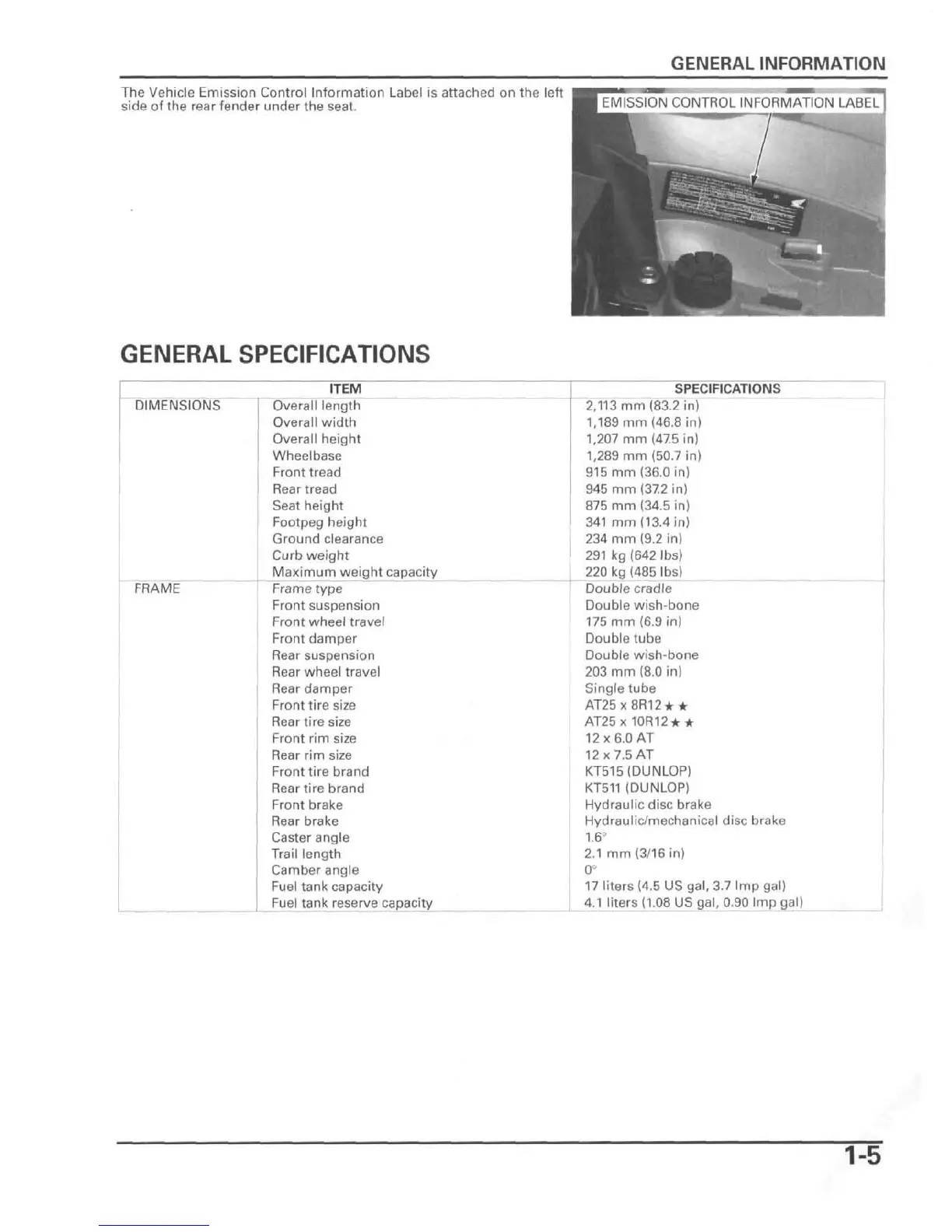

GENERAL INFORMATION
The Vehicle Emission Control Information Label is attached on the left
side of the rear fender under the seat.
EMISSION CONTROL INFORMATION LABEL
GENERAL SPECIFICATIONS
ITEM
DIMENSIONS
FRAME
Overall length
Overall width
Overall height
Wheelbase
Front tread
Rear tread
Seat height
Footpeg height
Ground clearance
Curb weight
Maximum weight capacity
Frame type
Front suspension
Front wheel travel
Front damper
Rear suspension
Rear wheel travel
Rear damper
Front tire size
Rear tire size
Front rim size
Rear rim size
Front tire brand
Rear tire brand
Front brake
Rear brake
Caster angle
Trail length
Camber angle
Fuel tank capacity
Fuel tank reserve capacity
SPECIFICATIONS
2,113 mm (83.2 in)
1,189 mm (46.8 in)
1,207 mm (47.5 in)
1,289 mm (50.7 in)
915 mm (36.0 in)
945 mm (37.2 in)
875 mm (34.5 in)
341 mm (13.4 in)
234 mm (9.2 in)
291 kg (642 lbs)
220 kg (485 lbs)
Double cradle
Double wish-bone
175 mm (6.9 in)
Double tube
Double wish-bone
203 mm (8.0 in)
Single tube
AT25x8R12**
AT25x 10R12**
12x6.0 AT
12x7.5 AT
KT515(DUNLOP)
KT511 (DUNLOP)
Hydraulic disc brake
Hydraulic/mechanical disc brake
1.6°
2.1 mm (3/16 in)
0°
17 liters (4.5 US gal, 3.7 Imp gal)
4.1 liters (1.08 US gal, 0.90 Imp gal)
1-5
