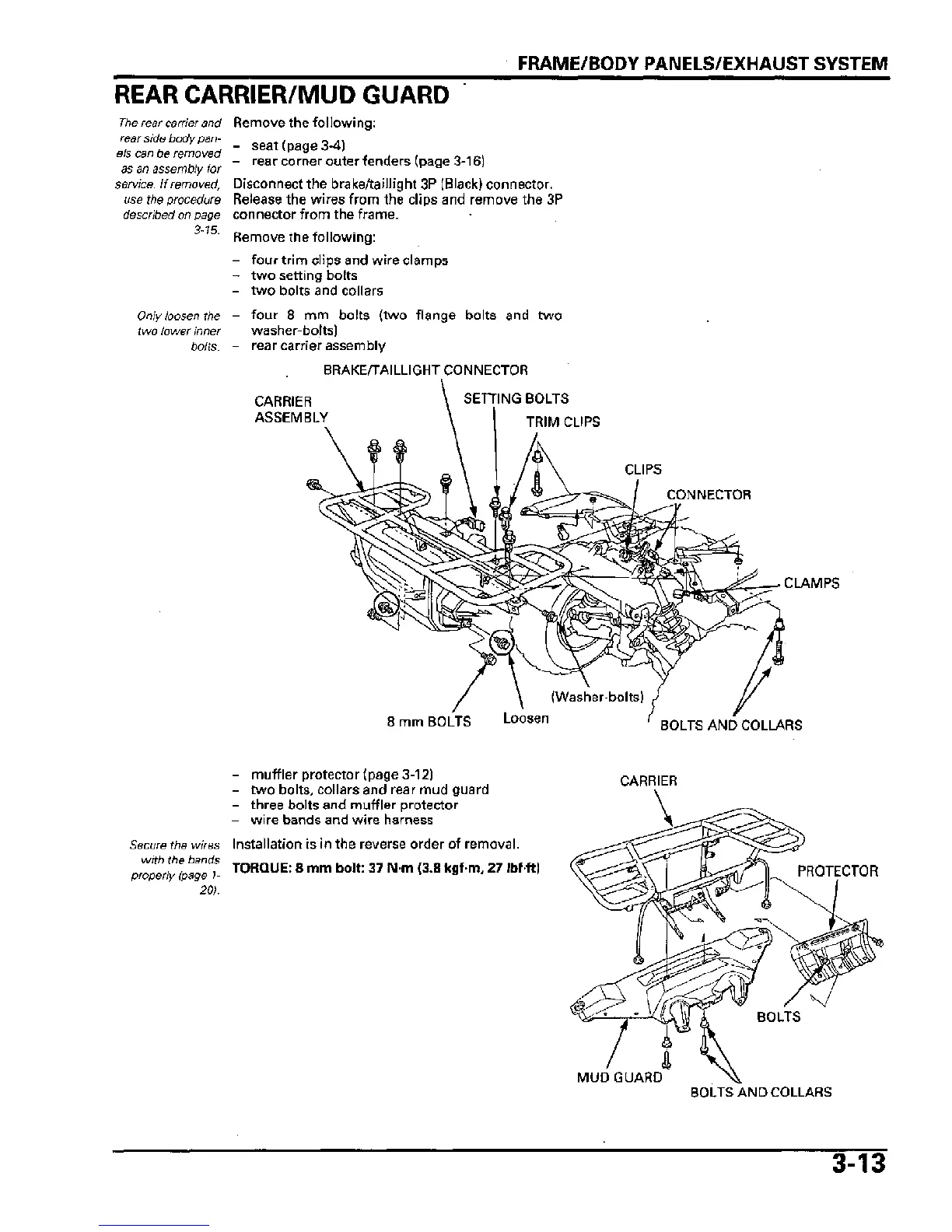

FRAME/BODY PANELS/EXHAUST SYSTEM
REAR CARRIER/MUD GUARD
The rear carrier and Remove the following:
rear side body pan- _
(
es can be removed
K a
' , , , _ „_,
as an assembly for " rear corner outer fenders (page 3-16)
service.
If
removed.
Disconnect the brake/taillight 3P (Black) connector.
use
the procedure
Release the wires from the clips and remove the 3P
connector from the frame.
Remove the following:
- four trim clips and wire clamps
- two setting bolts
- two bolts and collars
- four 8 mm bolts (two flange bolts and two
washer-bolts)
- rear carrier assembly
described on page
3-15.
Only loosen the
two lower inner
bolts.
BRAKE/TAILLIGHT CONNECTOR
CARRIER
ASSEMBLY
SETTING BOLTS
TRIM CLIPS
CLIPS
CONNECTOR
v
CLAMPS
8 mm BOLTS
Loosen
BOLTS AND COLLARS
- muffler protector (page 3-12)
- two bolts, collars and rear mud guard
- three bolts and muffler protector
- wire bands and wire harness
CARRIER
Secure
the wires Installation is in the reverse order of removal.
with the bands
properly (page 1-
20).
TORQUE: 8 mm bolt: 37 N-m (3.8 kgf-m, 27 Ibfft)
PROTECTOR
MUDGUARD
BOLTS AND COLLARS
3-13
