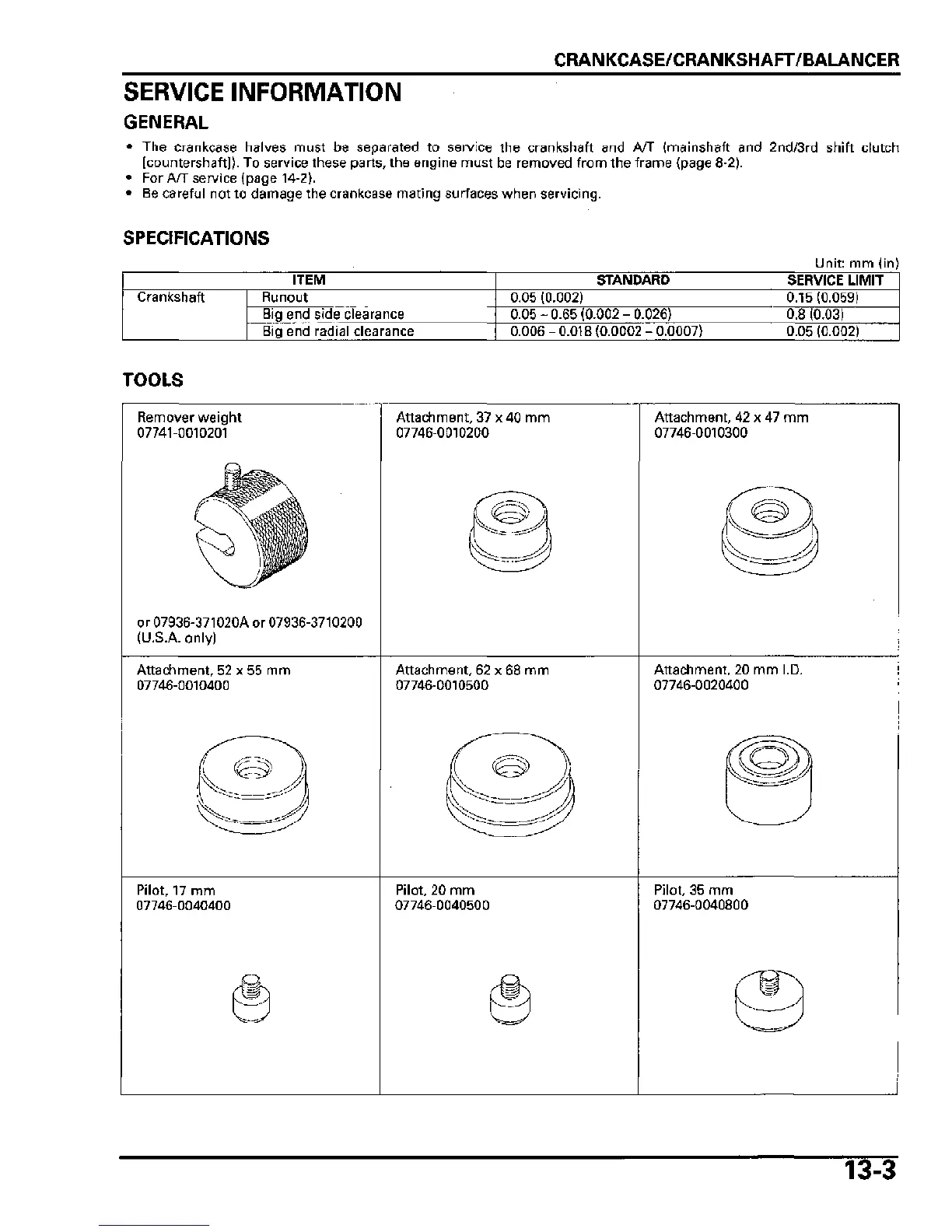

Honda TRX680FA - SERVICE INFORMATION

CRANKCASE/CRANKSHAFT/BALANCER
SERVICE INFORMATION
GENERAL
• The crankcase halves must be separated to service the crankshaft and A/T (mainshaft and 2nd/3rd shift clutch
[countershaft]). To service these parts, the engine must be removed from the frame (page 8-2).
• For A/T service (page 14-2).
• Be careful not to damage the crankcase mating surfaces when servicing.
SPECIFICATIONS
TOOLS
Unit: mm (in)
ITEM
Crankshaft Runout
Big end side clearance
Big end radial clearance
STANDARD
0.05 (0.002)
0.05-0.65(0.002-0.026)
0.006 - 0.018 (0.0002 - 0.0007)
SERVICE LIMIT
0.15(0.059)
0.8 (0.03)
0.05 (0.002)
Remover weight
07741-0010201
or 07936-371020A or 07936-3710200
(U.S.A. only)
Attachment, 37 x 40 mm
07746-0010200
Attachment, 42 x 47 mm
07746-0010300
Attachment, 52 x 55 mm
07746-0010400
Attachment, 62 x 68 mm
07746-0010500
Attachment, 20 mm I.D.
07746-0020400
Pilot, 17 mm
07746-0040400
Pilot, 20 mm
07746-0040500
Pilot, 35 mm
07746-0040800
13-3
