Honeywell 60 Series IP Camera Software Configuration Guide

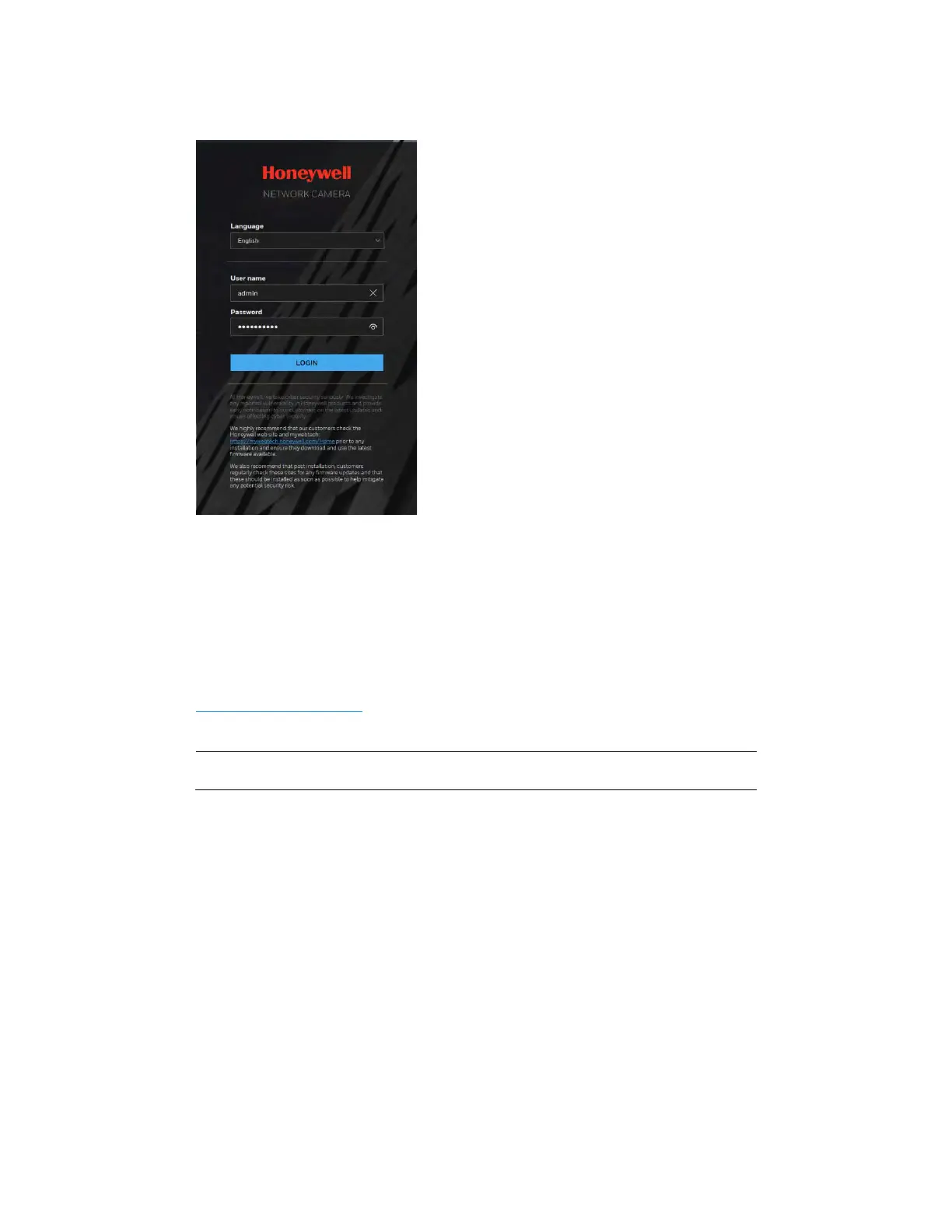

Figure 3-3 Login Page

If you are logging in for the first time, you will be prompted to download and install the plugin.

Follow the on-screen instructions to install it. When the installation is complete, the web

client automatically refreshes and the main page opens (Figure 3-7).

Logging in via Google Chrome

Open Google Chrome, type the camera’s IP address in the address bar, and then click

Enter. For example, if your camera’s IP address is 192.168.1.108, you would type

https://192.168.1.108.

Note Chrome 79.0 is supported.

The following window is displayed. Click Advanced.

Main Page
