Honeywell 60 Series IP Camera Software Configuration Guide
30
Configuring Exposure Settings
Go to Setup Camera Setup Exposure.
On this page, you can set the Exposure measurement window, Exposure level, Exposure
mode, Exposure time, Gain control, and Day/Night mode settings.
Two sets of exposure settings are available:
• In Normal Light Mode tab, configure normal situations for image settings.
• In Profile Mode tab, configure special situations for image settings.
• Night Mode: Check Enable to apply these settings at and select this mode to apply
the settings at night.
• Schedule Mode: Check Enable to apply these settings at and select this mode to
apply the settings at a specific period. Enter the time manually in the field.

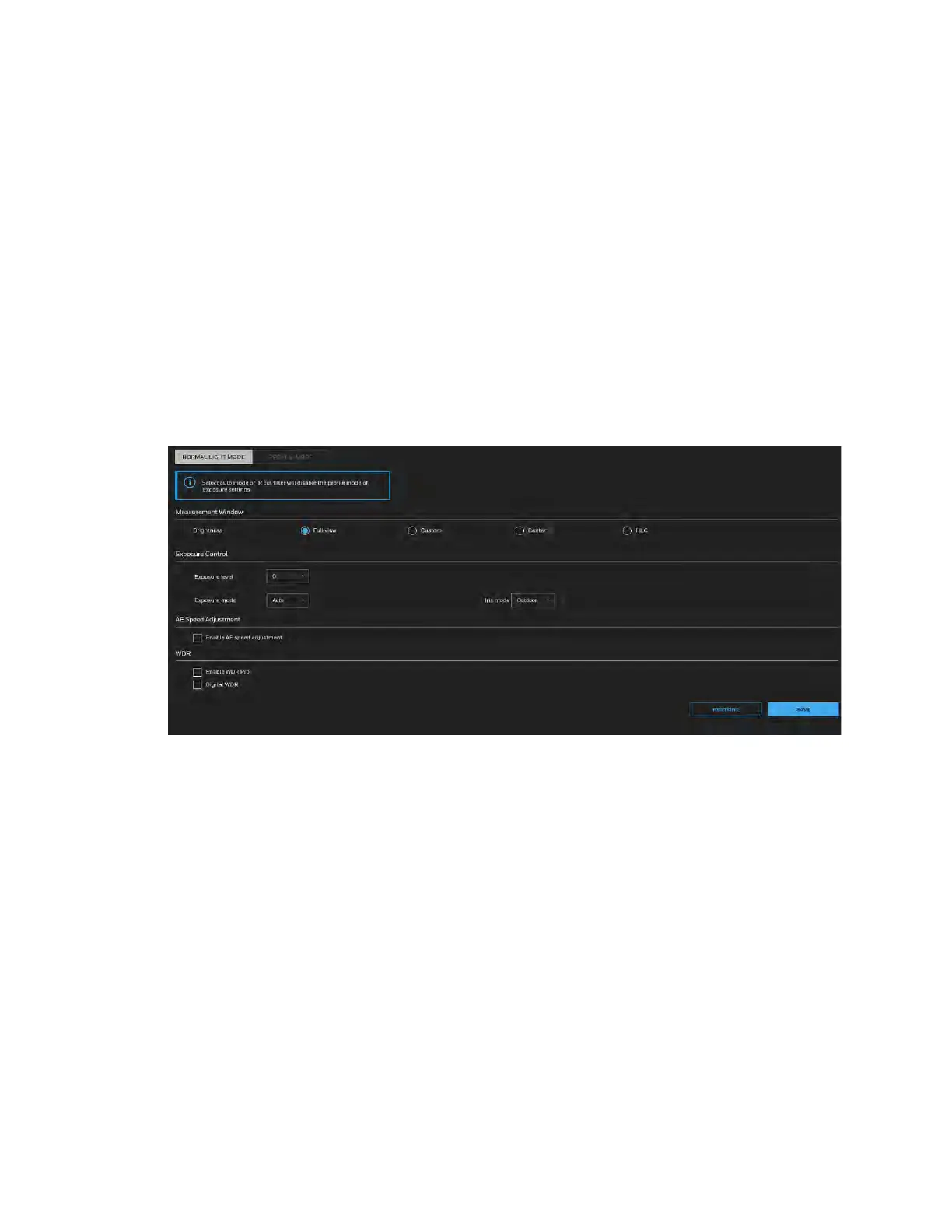

Figure 4-9 Exposure
Measurement Window
Measurement Window: This function allows users to set measurement window(s) for low light
compensation. For example, where low-light objects are posed against an extremely bright
background. You may want to exclude the bright sunlight shining through a building's
corridor.
• Full view: Calculate the full range of view and offer appropriate light compensation.
• Custom: Manually add customized windows as inclusive or exclusive regions. A total of 10
windows can be configured.
The inclusive windows have a higher priority. You can overlap these windows, and, if you
place an exclusive window within a larger inclusive window, the exclusive part of the
overlapped windows will be deducted from the inclusive window. An exposure value will
then be calculated out of the remaining of the inclusive window.
• Center: This option will automatically add an inclusive window in the middle of the window
and give the necessary light compensation.
