Honeywell Design and Application User Manual

Section 11 - W7220 JADE™ Economizer Module
63-8594-02 Honeywell Economizers 130

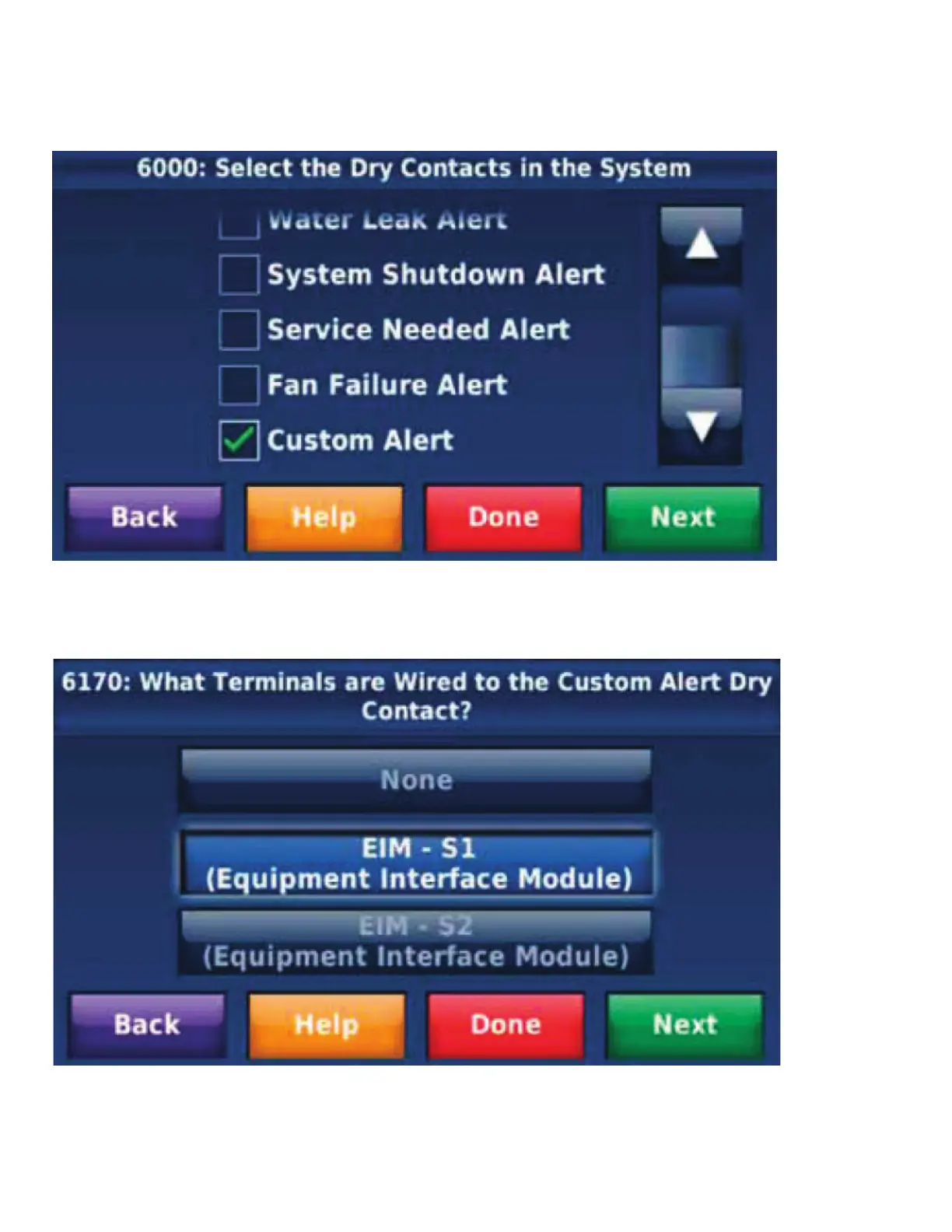

2. At installer setup 6000 (Select the Dry Contacts in the System) > “Custom Alert”.
3. At Installer Setup 6170, select the terminals wired to the dry contact device (S1 or S2).
Connect a Normally Open Relay Contact to the S1 or S2 terminals.
