Honeywell Design and Application User Manual

Section 8- W6215, W7215 And W7460 Economizer Modules
63-8594-02 Honeywell Economizers 72
W6215, W7215, W7460 Inputs and Outputs
This series of economizer modules includes
input and output contacts for use in controlling
the fans and conditioning equipment on the air
handler. Some of these contacts are not
available on all modules.

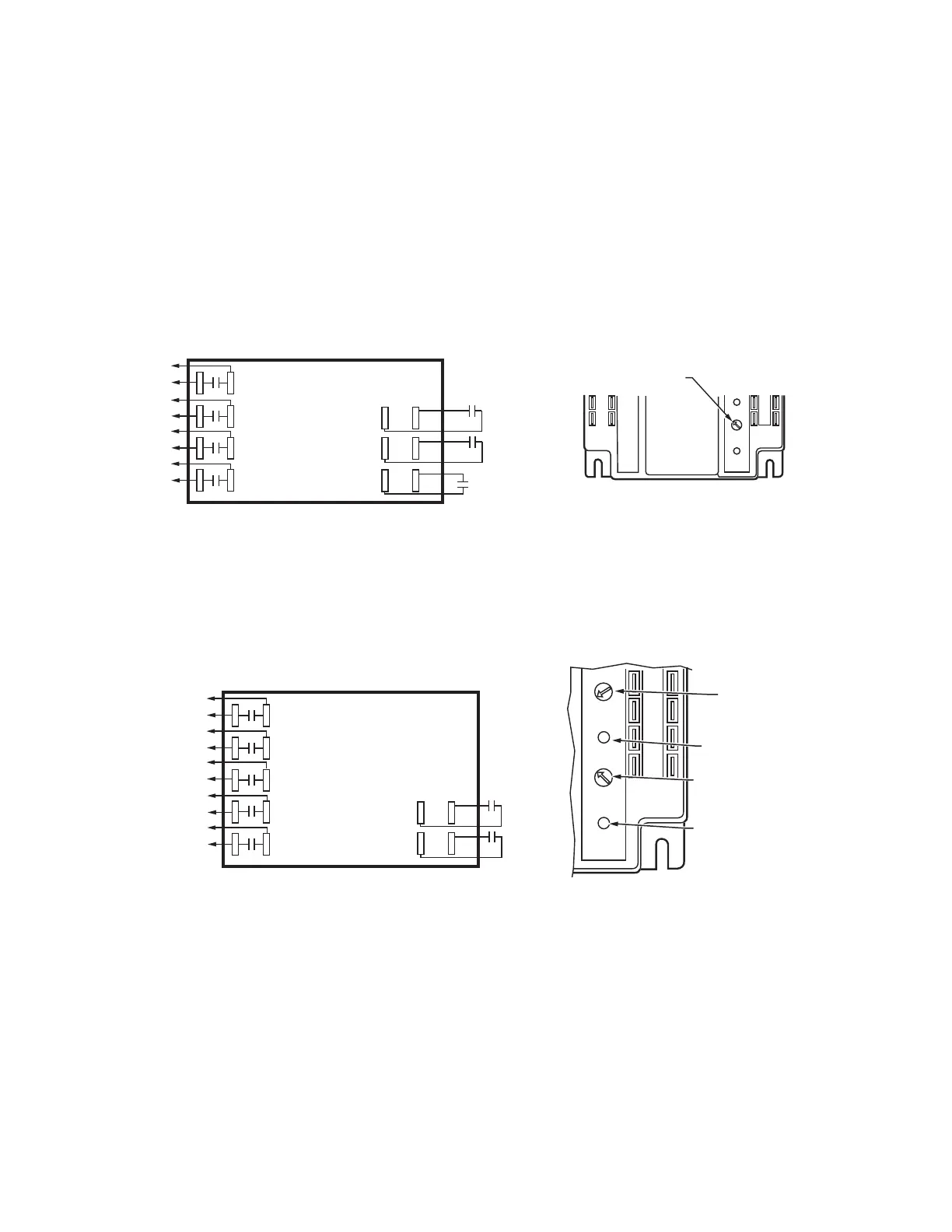

Input and Output Applications
Options Available on A Models
Options Available on B Models
M13841A
FAN
HEATING COIL
COOLING COIL
NOT TO BE USED AS A LIFE SAFETY DEVICE
SD1
AC1
PG1
SD
AC
PG
FREE
COOL
UNIT
CONTROL
EXHAUST
FAN
INDOOR
FAN
OCCUPANCY
TIMER
SMOKE, FIRE
DETECTION
CIRCUIT
W6215A
W7215A
W7460A
ECONOMIZER
MODULES
FREE
COOLING
HOUR
COUNTER
Exhaust
Fan
Indoor
Fan
ISI
Exhaust
Exhaust
Set Pt
0%
100%
50%
AC1
AC
PG1
PG
EXHAUST FAN
SETPOINT
EXHAUST AIR
M13842A
FAN
HEATING COIL
COOLING COIL
NOT TO BE USED AS A LIFE SAFETY DEVICE
SD1
AC1
SD
AC
FREE
COOL
UNIT
CONTROL
EXHAUST
FAN
INDOOR
FAN
OCCUPANCY
TIMER
W7215B
W7460B
ECONOMIZER
MODULES
FREE COOLING
HOUR COUNTER
ALARM
TO AIR CLEANER OR
AIR CONTENT ALARM
ISI
OSI
OSI
Set Pt
2V
100%
6V
2V
6V
10V
ISI
Set Pt
AQ1
AQ
SD1
SD
AC1
AC
0A1
0A
DCV SENSOR
SETPOINT
OUTDOOR AIR
CONTENT SENSOR
SETPOINT
+
–
DCV MODE LIGHT
OUTDOOR AIR
CONTENT
MODE LIGHT
EXHAUST AIR
