Section 14 - Simulator for W7212
63-8594-02 Honeywell Economizers 174
Honeywell created a simulator to help teach
users how the product functions. The program
is a 10.5 MB file that can be easily loaded onto
your computer desk top. In addition there is a
power point presentation that can also be
downloaded from the same web page to guide
you on how to use the simulator.

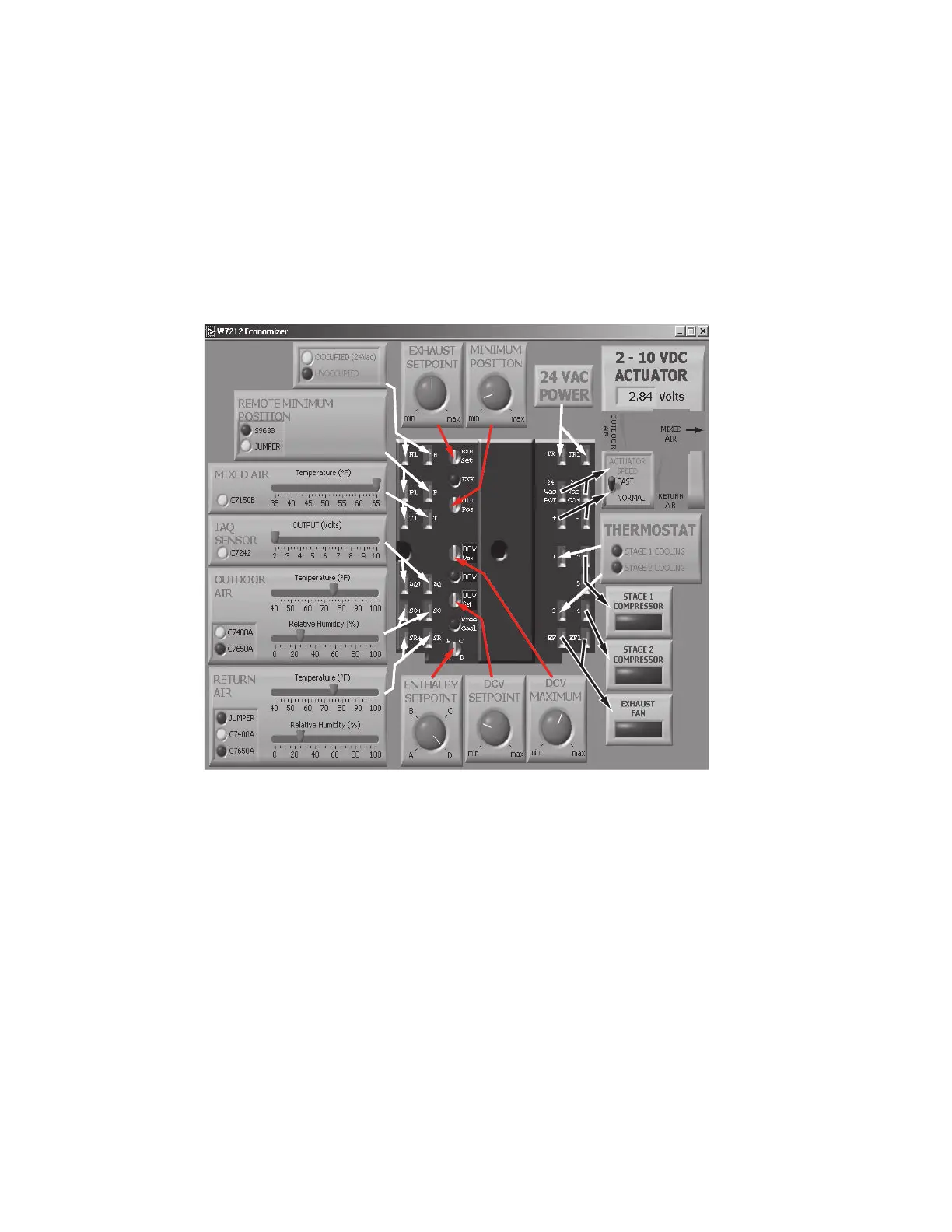

On the picture shown below all of the white
arrows are inputs to the economizer logic from
sensors or a commercial thermostat. All of the
red arrows denote changes (potentiometers)
or settings that can be made by the user. And
the black arrows are out puts of the logic
module to the actuator to change the damper
position or to the stages of mechanical cooling
equipment and exhaust fan.
M23992A
