Honeywell Design and Application User Manual

Section 17 - Retrofit and Upgrades
63-8594-02 Honeywell Economizers 196

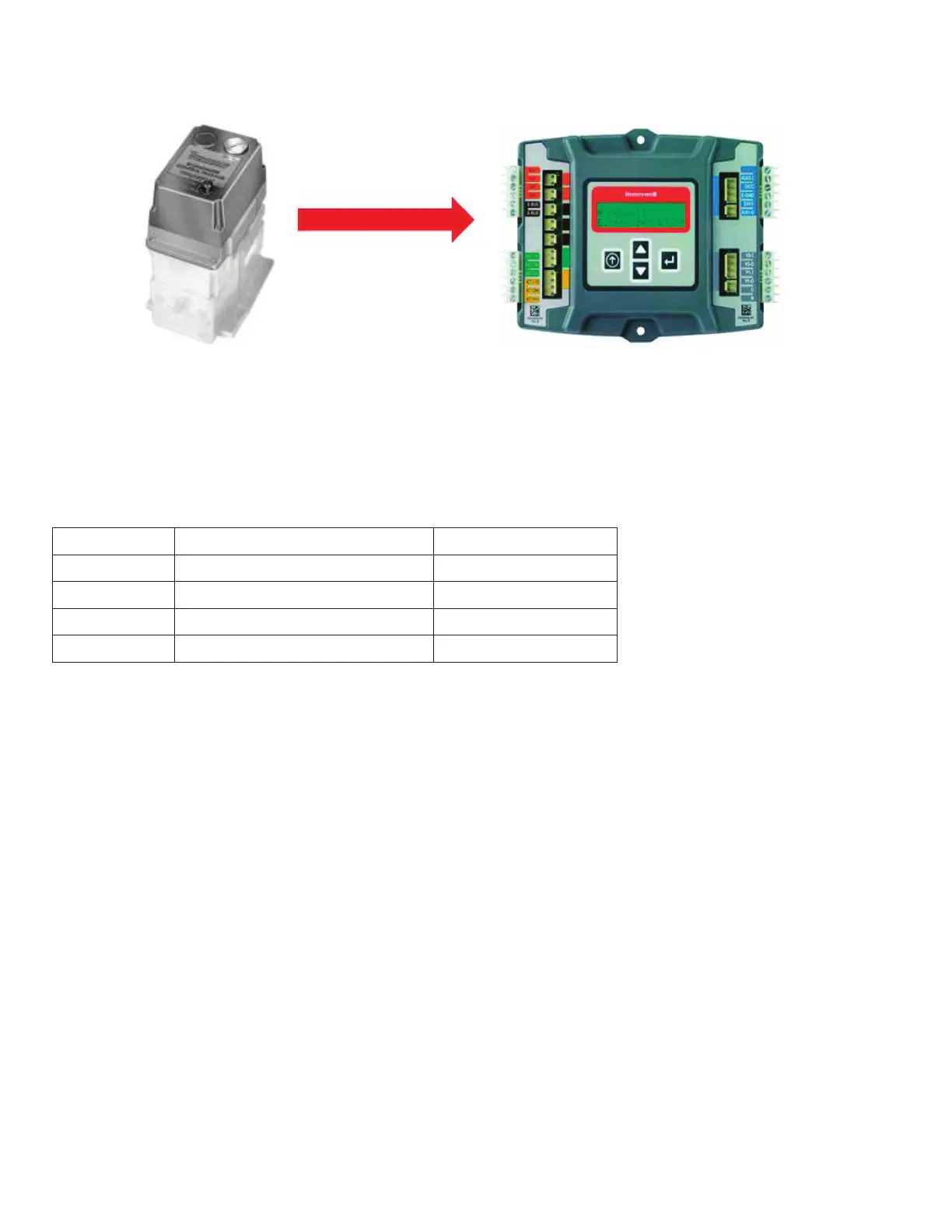

The M7285A1045 is powered with transformer connected to T1 and T2 (L1 and L2 as shown
above). The MAT internal to the W859 is replaced with a C7250A1001 sensor connected to the
MAT on the W7220. Add a C7400S1000 S-Bus sensor for the outdoor air changeover. Use
separate transformers for the motor and for W7220. The W7220 must be earth grounded.
There is no longer a need for Minimum Position and Changeover Curve (A, B, C, D)
potentiometers. The changeover curve boundaries and minimum position are set using the LCD
display menu item "Setpoints" and the 4 buttons on JADE
TM
.
For programming JADE
TM
refer to the Installation Instructions (62-0331).
Old Sensor Description New Sensor
C7046A Discharge Air C7400S1000
C7150B Mixed Air C7250A1001
C7400 Solid State Enthalpy C7400S1000
C7660 Solid State Dry Bulb C7250A1001
