E-MON CLASS 3200 METER
23 62-0397—02
6.7 RS-485 Wiring (continued)
6.7.1 RS-485 Bias Resistors
When interfacing the E-Mon Class 3200 meter to certain RS-485 communication
equipment, it may be necessary to add bias resistance to the circuit. If this is
required, there is a 2-position DIP switch on the meter’s door mounted (display)
circuit board. With both positions in the “ON” position, bias resistance is added to
the RS-485 circuit. When both positions are in the “OFF” position, no bias is
added to the RS-485 circuit.

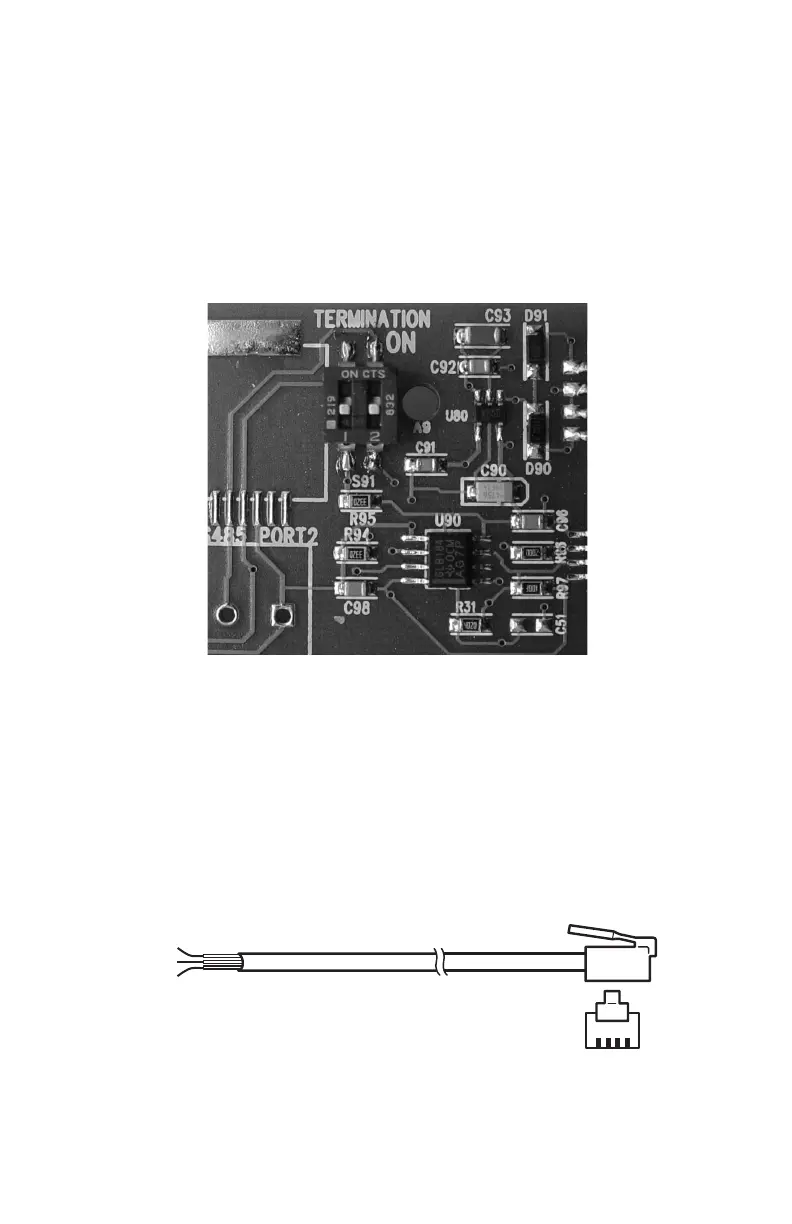

Fig. 13. Bias Resistors DIP Switch.
After performing these steps, all of the meters will be connected in a daisy chain
configuration. This network of meters can then be connected to the RS-485
network and communication can be established.
Local Computer
A local computer installed in the building can communicate with the RS-485
network utilizing Honeywell’s RS-232 conversion key. The RS-232 key is
connected to the RS-485 terminals in the closest meter using a cable with an RJ-
11 plug terminating the end that is plugged into the key and is open wiring on the
other end for attachment to the meter’s 3-screw RS-485 terminal block.
Fig. 14. RS-485 Wiring.
RJ−11
PLUG
FRONT VIEW
M33196
1 - NC
2 - GND
3 - HIGH
4 - LOW
GND (GREEN)
HIGH (BLACK)
LOW (RED)
2 3 4
62-0397_C.fm Page 23 Wednesday, May 9, 2018 9:28 AM
