E-MON CLASS 3200 METER
33 62-0397—02
9.0 LITHIUM BATTERY REPLACEMENT
The E-Mon Class 3200 meter has a lithium coin cell battery, which is used to
retain the contents of SRAM and the RTC during power outages. The battery’s life
expectancy is greater than 5 years.
Table 1. Battery specifications at 25 degrees Celsius.
Replace battery with Panasonic part number CR2032 only. Use of
another battery may present a risk of fire or explosion. See owner’s
manual for safety instructions.
The battery cell is mounted in a coin cell holder on the upper right side of the
main power board. The internal unit firmware will set a flag to indicate the low
battery condition. When the unit data is next downloaded, the monitoring facility
will be alerted of the low battery condition and will schedule a service call.

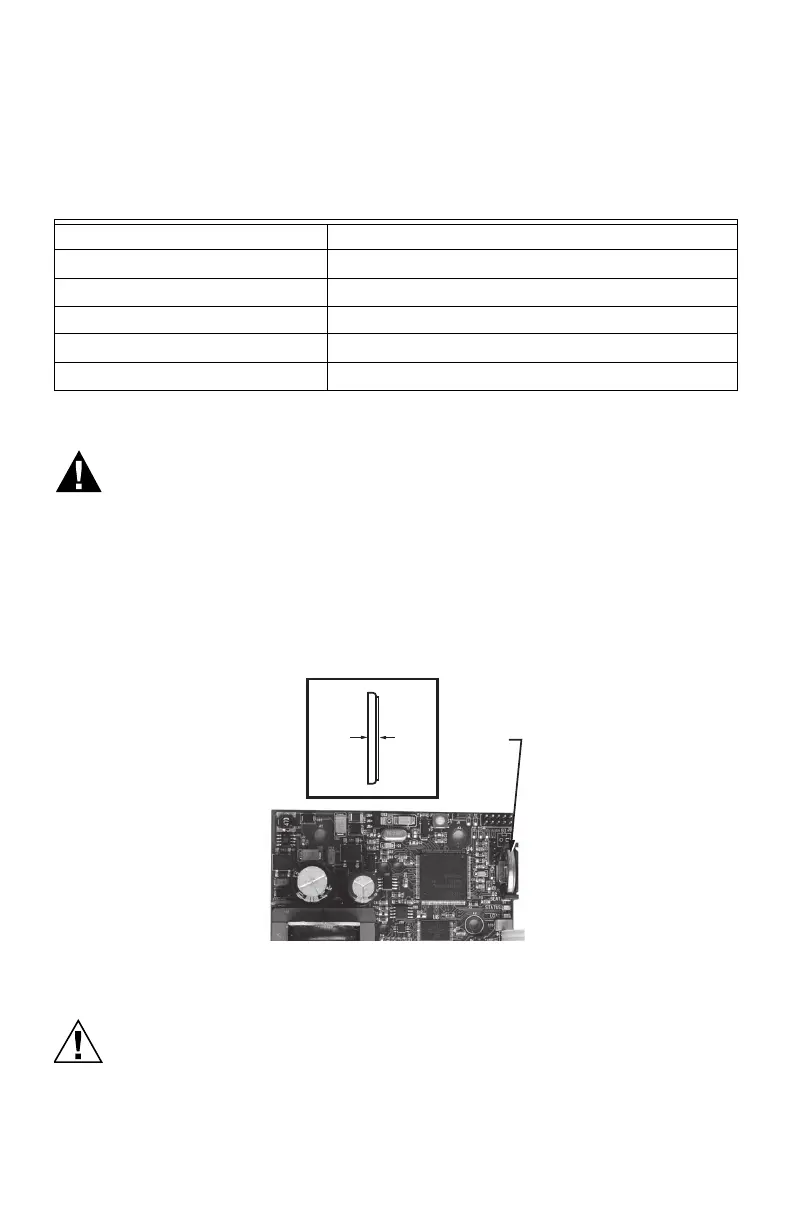

Fig. 23. Lithium Battery Cell.
Battery may explode if mistreated. Do Not recharge, disassemble, or
dispose of in fire.
Nominal Working Voltage 3 Vdc Output
Nominal Current Capacity 225 mAHr
Cell Chemical Manganese Dioxide Lithium
Operating Temperature Range -30 to +60 Degrees Celsius
Manufacturer Panasonic
Manufacturer’s Part Number CR2032
