E-MON CLASS 3200 METER
62-0397—02 12
6.0 METER INSTALLATION
6.1 Mounting the E-Mon Class 3200 Meter

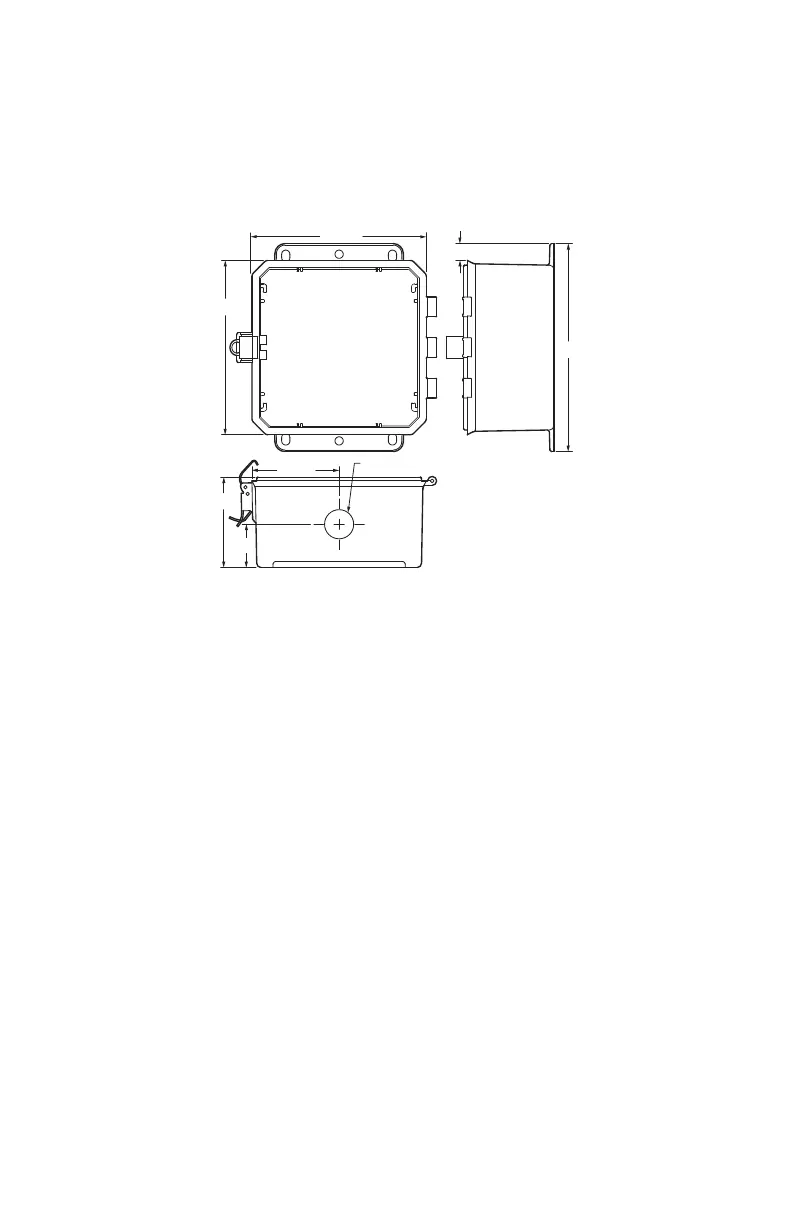

Fig. 4. Meter Dimensions.
Use appropriately sized mounting hardware to fasten the E-Mon Class 3200
enclosure to the selected mounting surface. The four housing mounting holes
are centered 6.75” H x 4” W. When the meter is provided in the 4X rain tight plastic
enclosure, the hub must be mounted to the conduit first before connecting it to
the enclosure.
NOTE: Units housed in UL type 1 steel enclosures must only be installed in
indoor locations, where they will not be affected by the elements.
M34684
6-35/64 (166)
6-35/64
(166)
5/8 (16)
7-51/64
(198)
3-17/64 (83)
1-5/8
(41)
3-25/64
(86)
Ø 1-3/32 (28) THROUGH
NEAR SIDE ONLY
