Honeywell ECS Series Installation And Operation Guide

ECS Series Emergency Communication System Installation Manual 151455
3-10
3.4.7 Recessed Mounting Instructions
This section describes how to recess mount the cabinet IFP-100ECS, IFP-1000ECS or IFP-2000ECS
into a wall. To recess mount the cabinet you will need to have the optional trim ring P/N VIP-TR
(ordered separately). Follow these steps to recess mount the cabinet:
1. Remove the cabinet door and the dead front panel. See Section 3.4.7.1.
2. Cut a recess hole. There should be 1.5" to 1.75" of cabinet extruding from the wall, this should be
measured from either the top edge or bottom edge to the exterior side of the sheet rock. (See Fig-
ure 3-9.)
3. Mount the cabinet to wall studs by inserting a screw through the cabinets side mounting holes into
the wall stud.

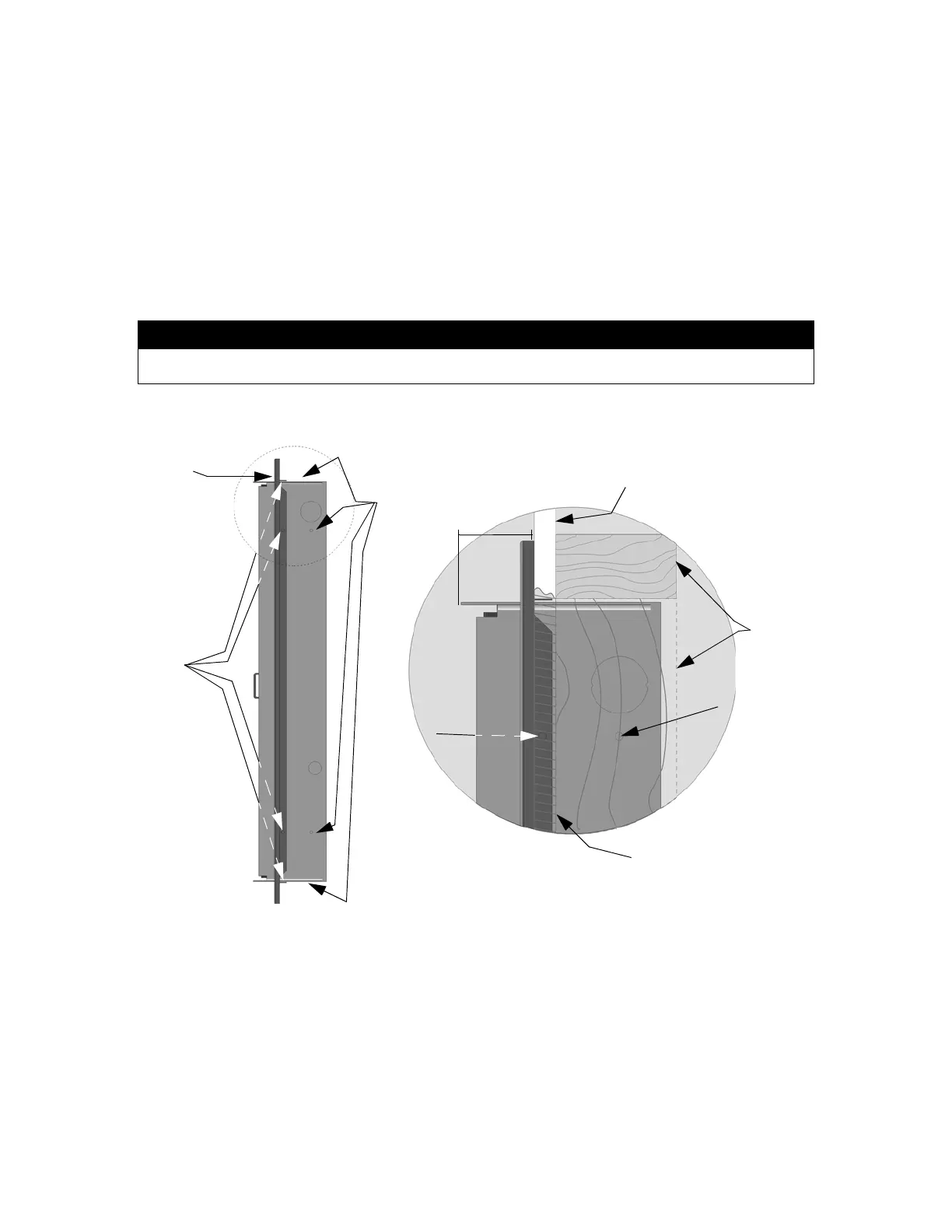

Figure 3-9 Detail of Flush Mounting with Trim Ring
Important!
Do not insert the cabinet deeper than recommend above. If the cabinet is mounted to deep you will not be able to re-attach
the door assembly.
Side View of Cabinet
Sheet Rock
Sheet Rock
Mounting
Studs
Cabinet
Mounting Hole
Trim Ring
Mounting
Hole
Cabinet
Mounting Hole
and Trim Ring
Trim Ring
1.5 to 1.75"
Trim Ring
Mounting
Hole
