Honeywell ECS Series Installation And Operation Guide

ECS Device Installation 151455
4-11

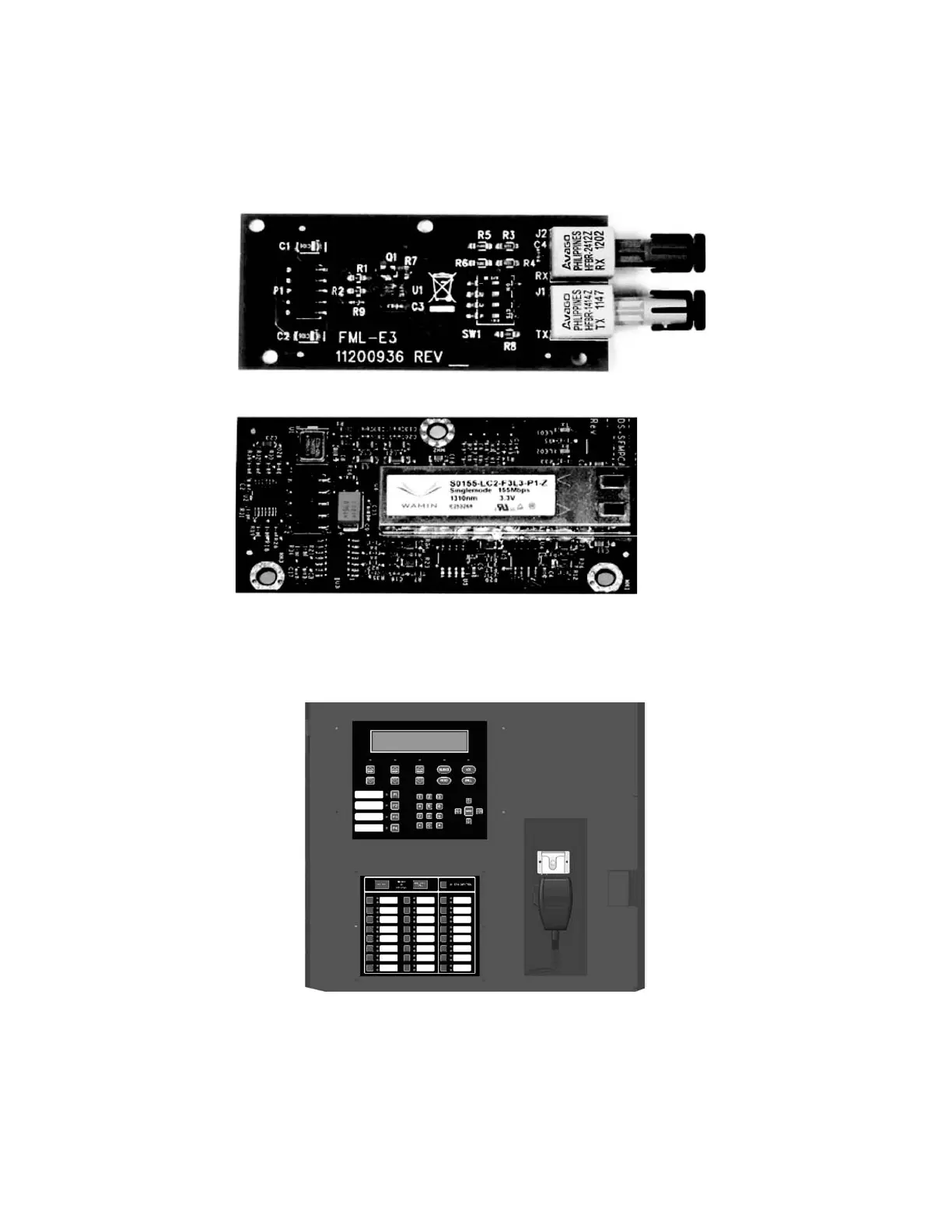

4.3.3 ECS-NVCM Fiber Modules
The ECS-NVCM supports two types of fiber-option modules to convert wire to fiber. For more
information see Installation sheet PN LS10178-001SK-E.
• SK-FML (Fiber-Optic Multi-Mode, Receiver)
• SK-FSL (Fiber-Optic Single-Mode, Transmitter)
4.3.4 Installing the Microphone
To install the microphone follow these steps:
1. Clip the microphone into the micro phone clip. See Figure 4-18.
Figure 4-18 Hang Microphone on to Microphone Clip
2. Insert Microphone cord through hole at the bottom of the dead front panel. See
