Honeywell ECS Series Installation And Operation Guide

ECS Device Installation 151455
4-61
4.11.2 Wiring the ECS-RVM
1. Refer to Figure 4-79 to properly connect the ECS-RVM to the FACPs SBUS.

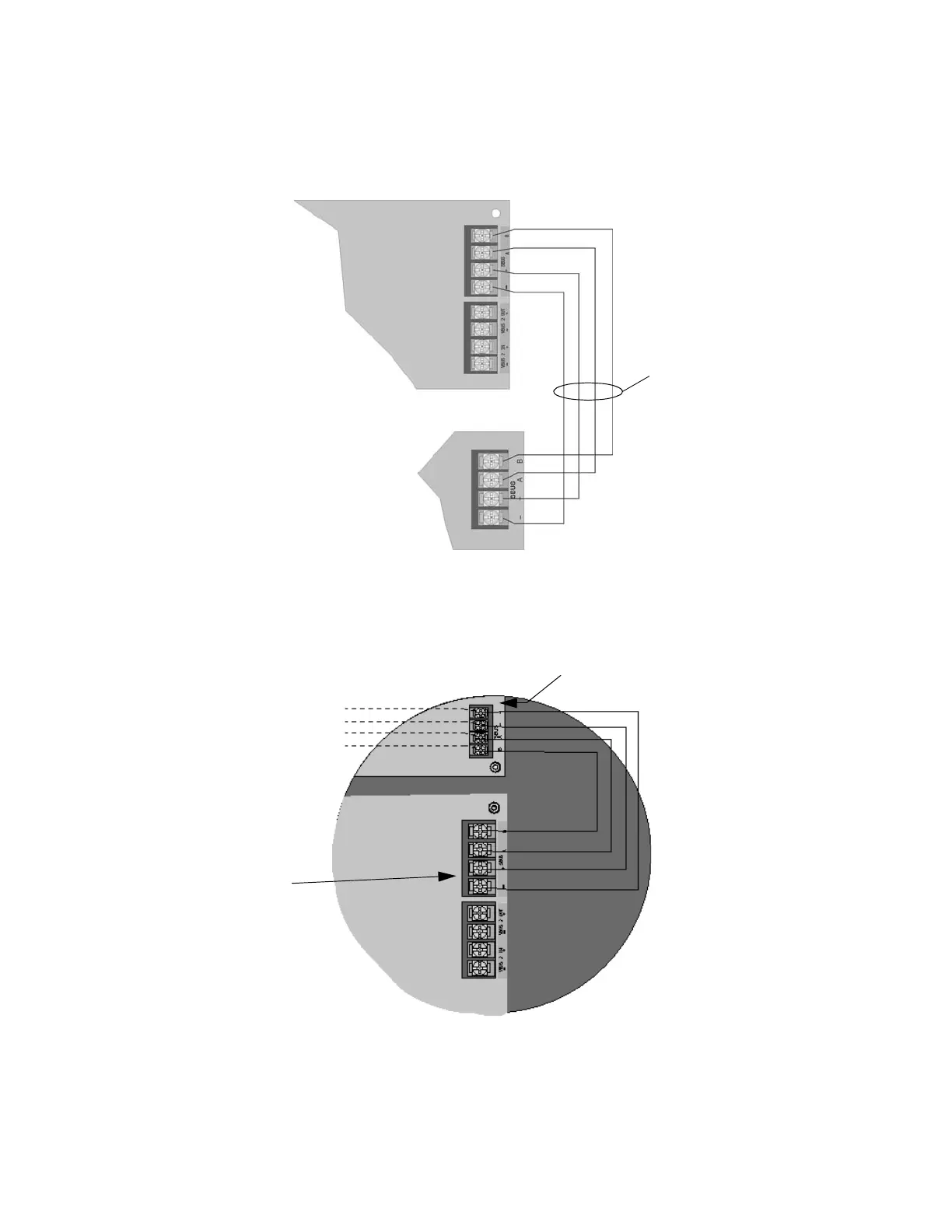

Figure 4-79 SBUS Connections
2. See Section 4.12 to set SBUS addressing.
3. Connect the SBUS to the annunciator and ECS-RVM. See Figure 4-80.
Figure 4-80 SBUS Wiring for ECS-RVM
4. Set the SBUS address on the annunciator and the ECS-RVM board. See Section 4.12.
FACP
Supervised
Power Limited
ECS-RVM
From Previous
SBUS Device
Annunciator
ECS-RVM
