Honeywell ECS Series Installation And Operation Guide

ECS Device Installation 151455
4-5

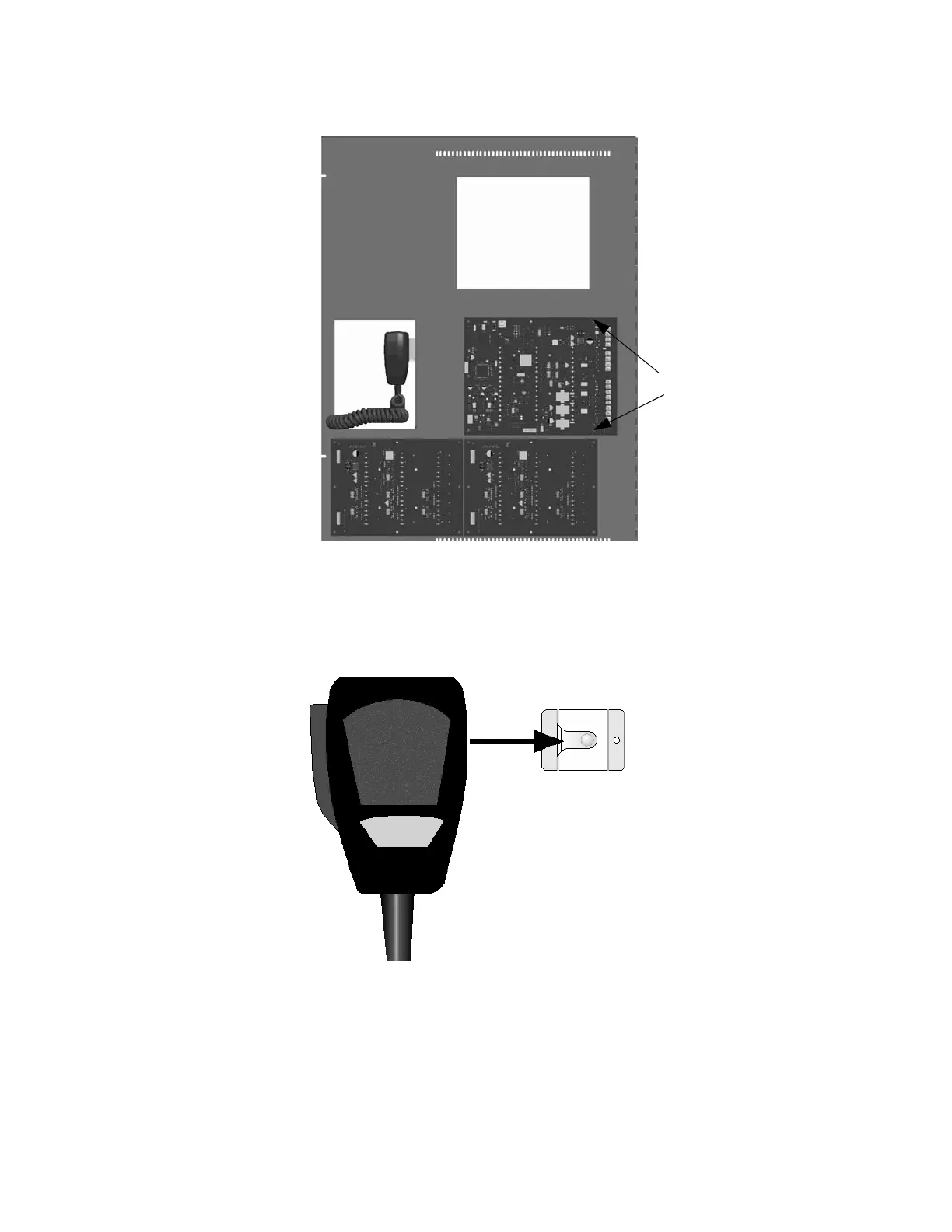

Figure 4-7 Back View of IFP-2000ECS Dead Front Panel
4.2.4 Installing the Microphone
To install the microphone follow these steps:
1. Clip the microphone into the micro phone clip. See Figure 4-18.
Figure 4-8 Sliding Microphone into Microphone Clip
2. Insert Microphone cord through hole at the bottom of the dead front panel. See
Mounting
Studs
ECS-SW24
VCM
