ECS Series Emergency Communication System Installation Manual 151455
4-6
Figure 4-19.

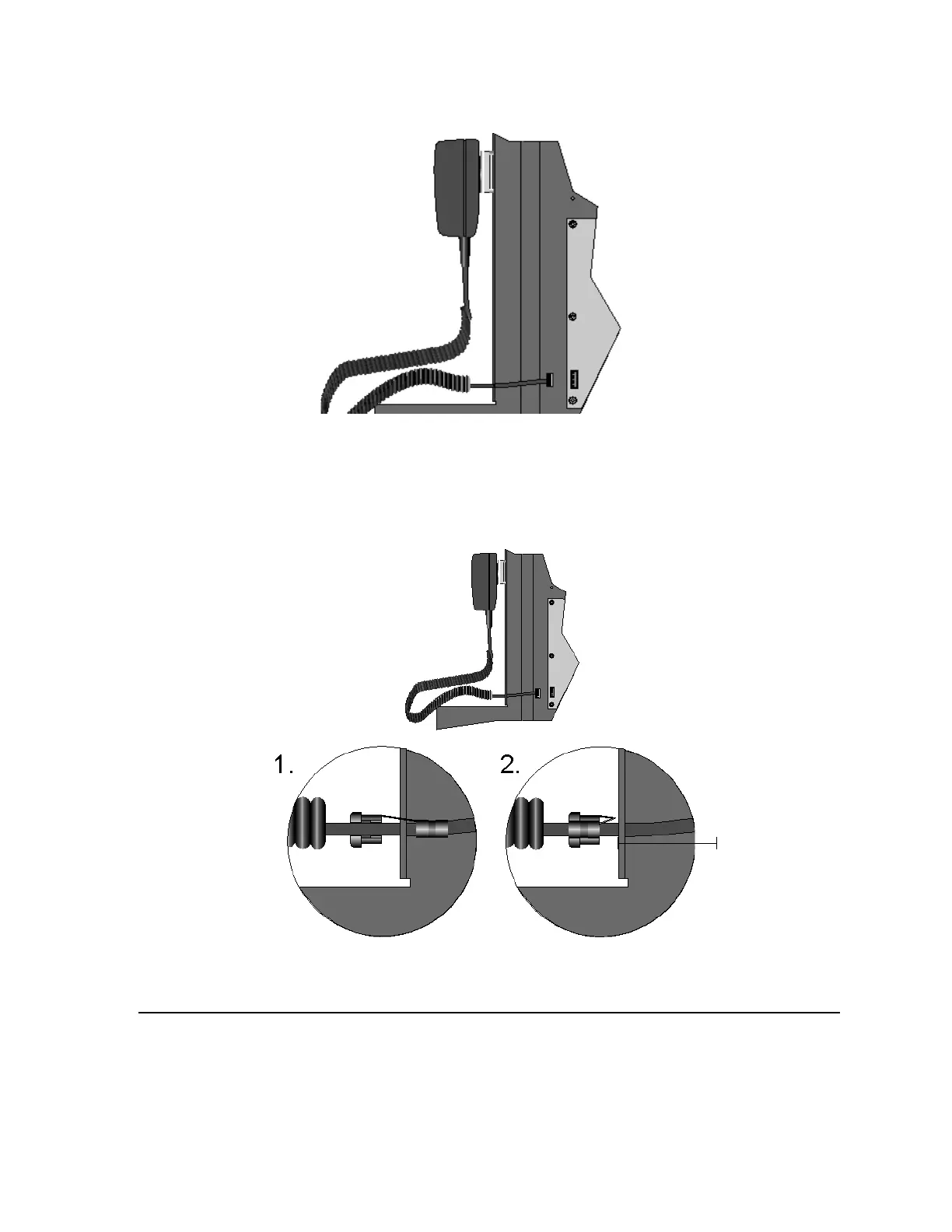

Figure 4-9 Microphone Cord Inserted Through Dead Front Panel Hole
3. Attach strain relief clip to microphone cord. The strain relief clip should have about 2-3/4” of micro
phone cord through it. See Figure 4-20.
4. Push the strain relief into the hole in the dead front panel.
5. Connect microphone to appropriate connector on ECS-NVCM Keypad.
Figure 4-10 Installing Strain Relief Clip
4.3 Installing the ECS-NVCM
This section provides information on the ECS-NVCM, Network Voice Control Module.The ECS-NVCM
is compatible with the IFP-2100ECS, and IFP-300ECS FACPs.
For more information on how to install or remove the ECS-NVCM Network Voice Control Module, see
installation Sheet PN LS10169-001SK_E.
