Honeywell ESSER FACP User Manual

Periphery components for ESSER FACP
TI 798960.GB0 / 04.20 27
Flush-mounting housing for detector base (Part No. 805571)
The flush-
mounting housing for detector bases is used for the installation of
the fire detector on suspended ceilings or in places where a concealed
mounting of the detector base is necessary. The detector base is locked
into the flush-mounting housing and visually concealed from the outside by
the attached cover ring. The detector base is then no longer visible.

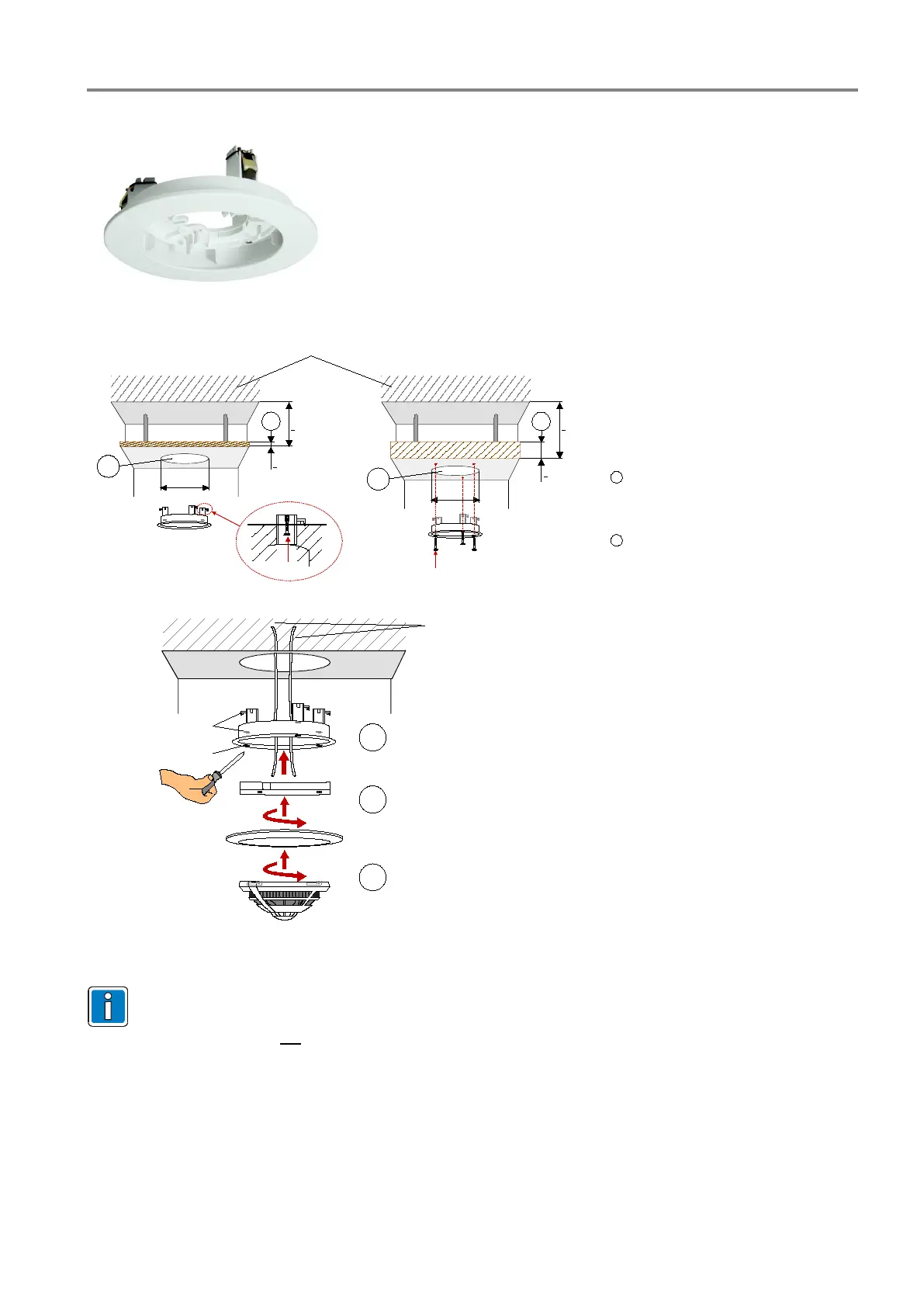

Fig. 9: Flush-mounting housing for detector bases
< 20
∅
140
> 60
> 20
B
A
∅
140
> 60
Decke / Ceiling
3x
3x
Abgehängte Decke /
Suspended ceiling
1
1

Prepare an installation opening of
∅ 140 mm, necessary installation
depth ≥ 60 mm.
A
Attach with the 3 screw claws
for a ceiling thickness of up to
20 mm max.
B
Attach with three screws for a
ceiling thickness of over
20 mm.
2
3
4
Installation cable
3x
or
3x

Place flush-mounting housing in
the installation opening and screw
in place.

Connect detector base and insert
into the plastic mounts of the flush-
mounting housing and click in
place.

Fit fire detector and put on cover
ring.
If installed out of arm's reach, the
detector removal tool (Part No.
805580) is needed to remove the
fire detector.
Fig. 10: Installation
When installing, pay attention to the markings on the plastic components.
Detector removal lock
Fire detectors may not be removed using the removal tool (Part No. 805580) if there is a removal lock
installed. Take off the cover ring before removing the detector.
