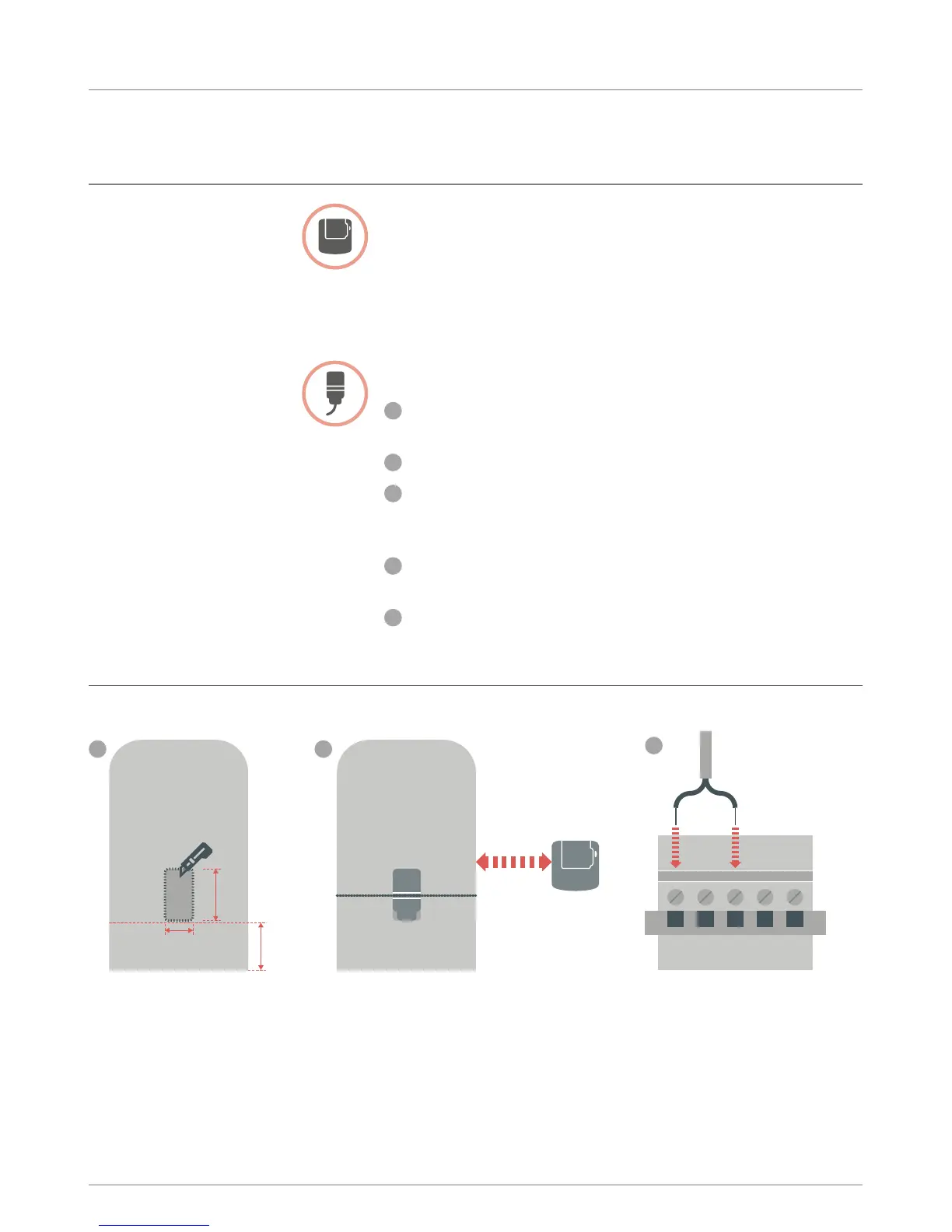

If you’re fitting a Wireless Cylinder
Thermostat (CS92)
You will need to install the CS92 Transceiver
and only one of the two sensors (CS92 Strap-
on Sensor or CS92 Insertion Sensor).
To fit the CS92 Strap-on Sensor
1
Cut away a section of cylinder insulation
slightly larger than the sensor unit
2
Clean the exposed cylinder surface
3
Place the sensor on the cylinder surface
and secure it using the fixing strap – cut
the strap to size if it’s too long
4
Install the CS92 Transceiver in a suitable location
close enough for the cable from the sensor to reach
5
Connect the cable from the sensor
to the CS92 Transceiver
Position the sensor from one quarter to a
third of the way up the cylinder.
1 3
1/4 – 1/3
TOTAL
HEIGHT
45MM
80MM
MINIMUM
30CM
A x B Cy
A x B Cy
Wire to CS92 Transceiver
5
Wireless Cylinder Thermostat (CS92)
5evohome Installation Guide
