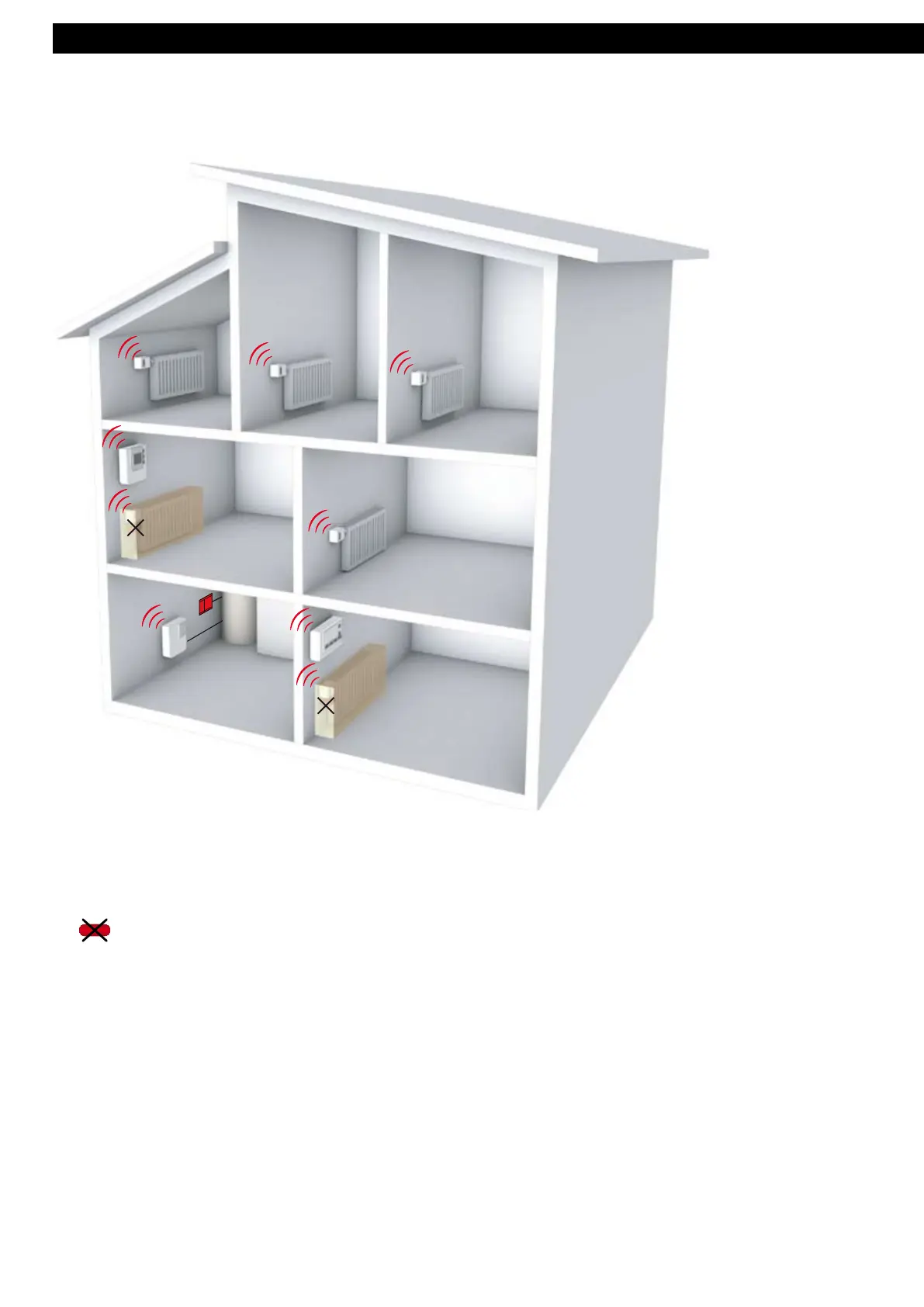

Multizone system with radiators and remote sensor2.4
Example: 6 zones, up to 8 zones are possible
evotouch
BDR91
Zone 2
Zone 4
Zone 5
Zone 6 ... 8
Zone 3
Boiler room
Zone 1
HR80
HR80
HR80
DT92
HR80
HR80
HR80
Notes
The internal room sensor of the • evotouch controller must be activated for zone 1
Instead of DT92 the HCW82 / HCF82 room units can be used•
• Zones 1 and 2: HR80 internal room sensor not used
Optional heat demand: BDR91 relay module or OPENTHERM-Bridge•
