Generic Binding4.
New components of the zoning system, which have capabilities to communicate wireless based on 868 MHz technology,
have to be integrated into the system before they can be taken into operation. This process is called BINDING
The binding procedure in the evotouch controller is guided by help screens which lead the installer through the
procedure.
Only the peripheral devices like actuators, sensors etc. have to be set into the individual bind mode by pressing e.g. the
BIND button.
After BINDING, the peripherals are able to communicate with the evotouch controller to receive or transmit data. In
addition, the RF communication can be checked and the signal strength is indicated and displayed.
As an example the following procedures are described for a living room.
Conguration modes 4.1
The zone conguration of the evotouch controller basicly can be done by the GUIDED Conguration and EXPERT
Conguration.
Particularly if you have mixed applications e.g. 4 zones radiator control and 2 zones underoor heating control the
conguration mode which should be applied is described in the specic application Multizone system with radiators
and underoor heating and Multizone system with mixing valve and radiators.
GUIDED conguration4.1.1

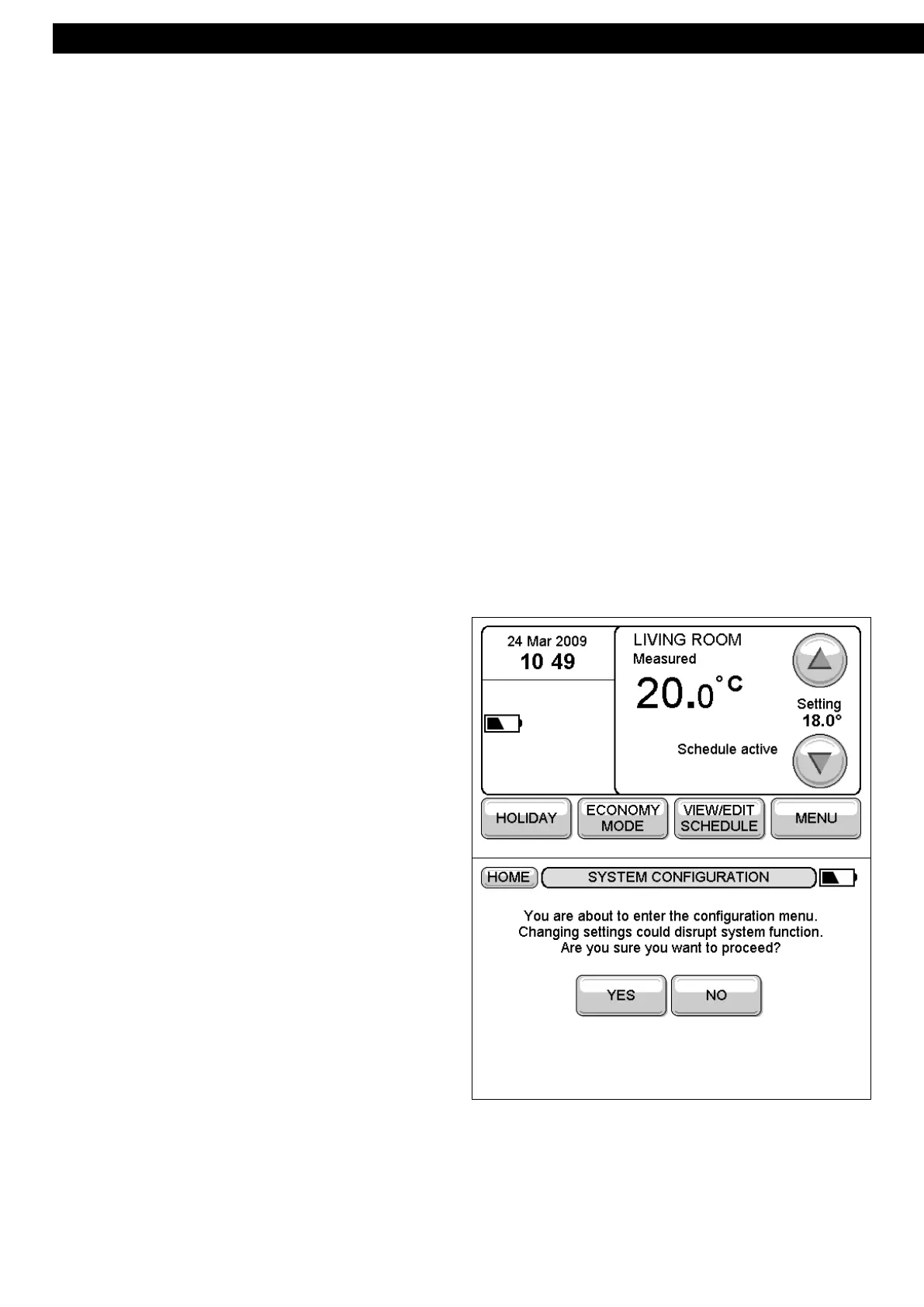

Press and hold the MENU button until the next screen f
appears.
Press the YES button. f
