Checking RF communication4.4.2
BDR91

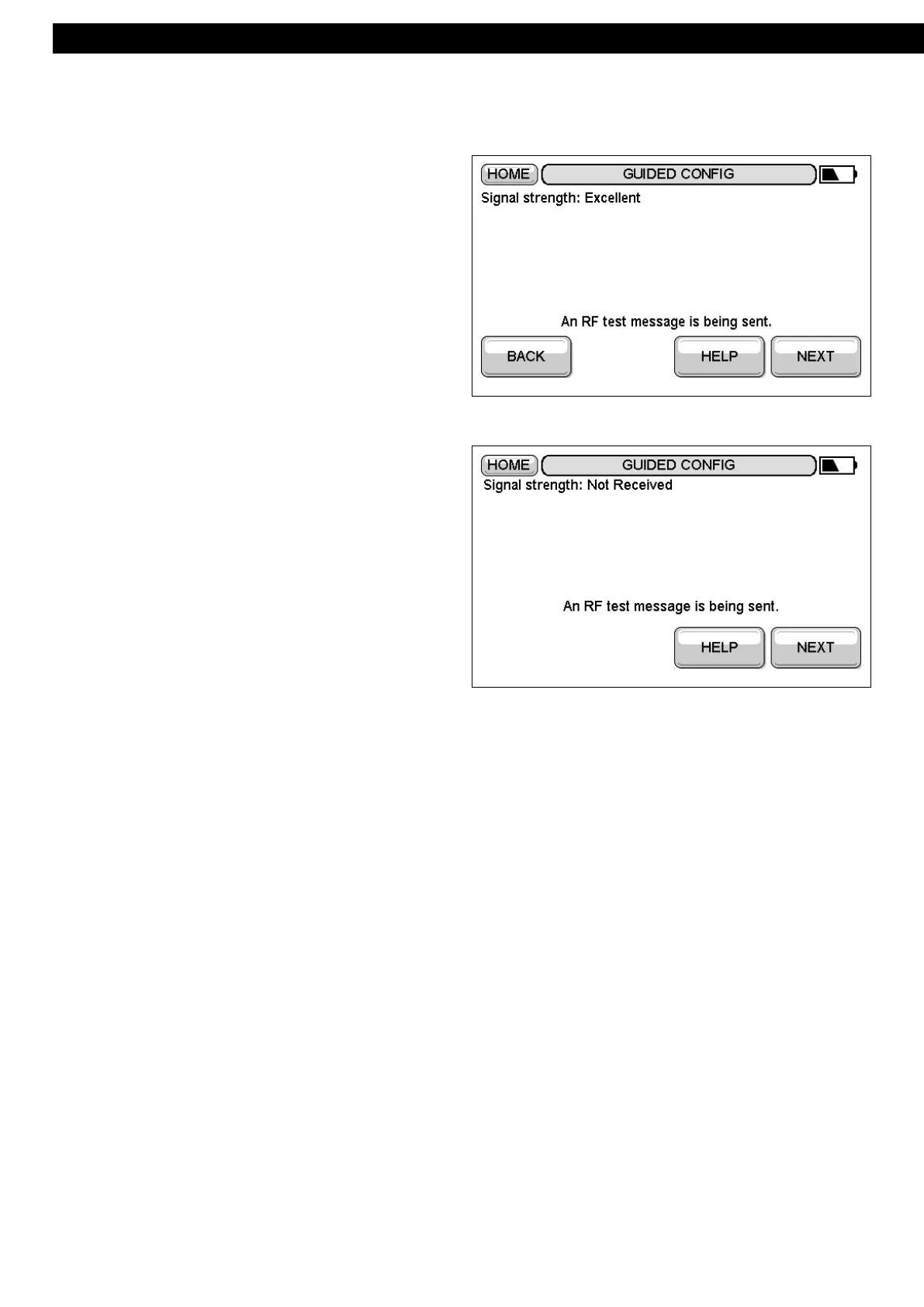

The evotouch controller sends test signals to and from the
assigned relay module BDR91 in order to test the signal
strength.
i
The signal strength can be EXCELLENT, GOOD, POOR
or not received
HC60NG / R6660D
The evotouch controller sends test signals to the assigned
relay module HC60NG / R6660D in order to test the signal
strength.
When HC60NG / R6660D receives the test signal, the eld
strength is indicated by ashing of the red LED.
1 pulse = sufficient
5 pulses = strong
Deactivating the RF communication check
Press the NEXT button. f
Completing conguration
In the following screen press the DONE button. f
Configuration of the relay module is completed.
