H-SERIES GREEN CLASS NET METER
31 62-0424-02
6.10 Ethernet Communications
Ethernet/IP communications connections are provided through an RJ-45
connector(J8) in the lower right corner of the main power board. This port can be
connected directly to a network port of a PC using a Cat. 5e crossover cable.
Two LEDs are provided directly above the connector. The LINK LED is yellow and
when lit, indicates ethernet connectivity. The ACT led is green and when lit, indicates
communication activity. The communication protocol for the Ethernet port is selected
when ordering the meter.
Green Class Net Ethernet/IP Addressable meters can be tied into a local Ethernet
network individually, or, for EZ-7 protocol only, a single EZ-7 Ethernet-connected meter
can communicate with multiple EZ-7 RS-485 daisy-chained conventional Green Class
Net meters using a single IP address. Each device that is connected directly to the
ethernet network requires a unique IP address.
SEE SECTION 10 FOR INSTRUCTIONS ON CHANGING ID AND IP ADDRESSES.

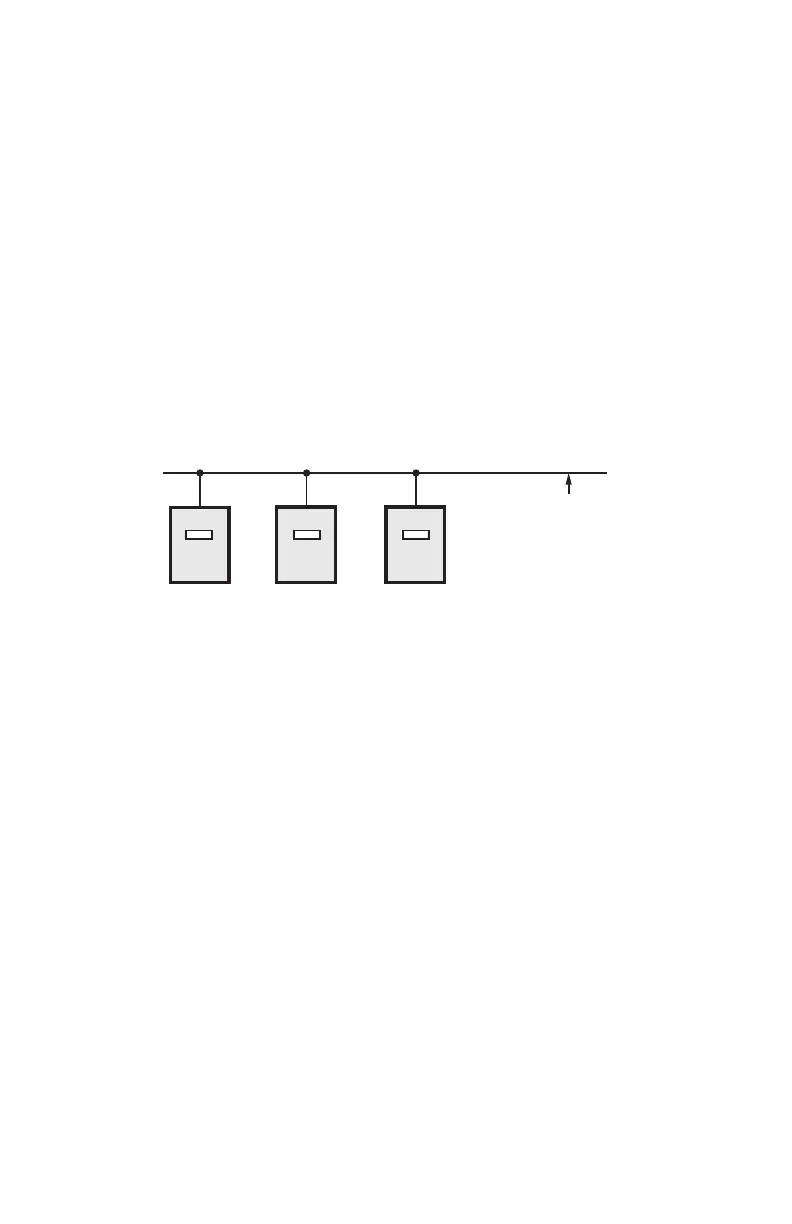

Fig. 16. Ethernet EZ-7 Network.
ETHERNET EZ-7,
NETWORK
M33445
