Honeywell HC30WF5R1 User Manual

7
Honeywell 30 Series IP Cameras User Guide
After the scanning, all scanned devices in the same subnet and different subnet will be
displayed in the devices list.

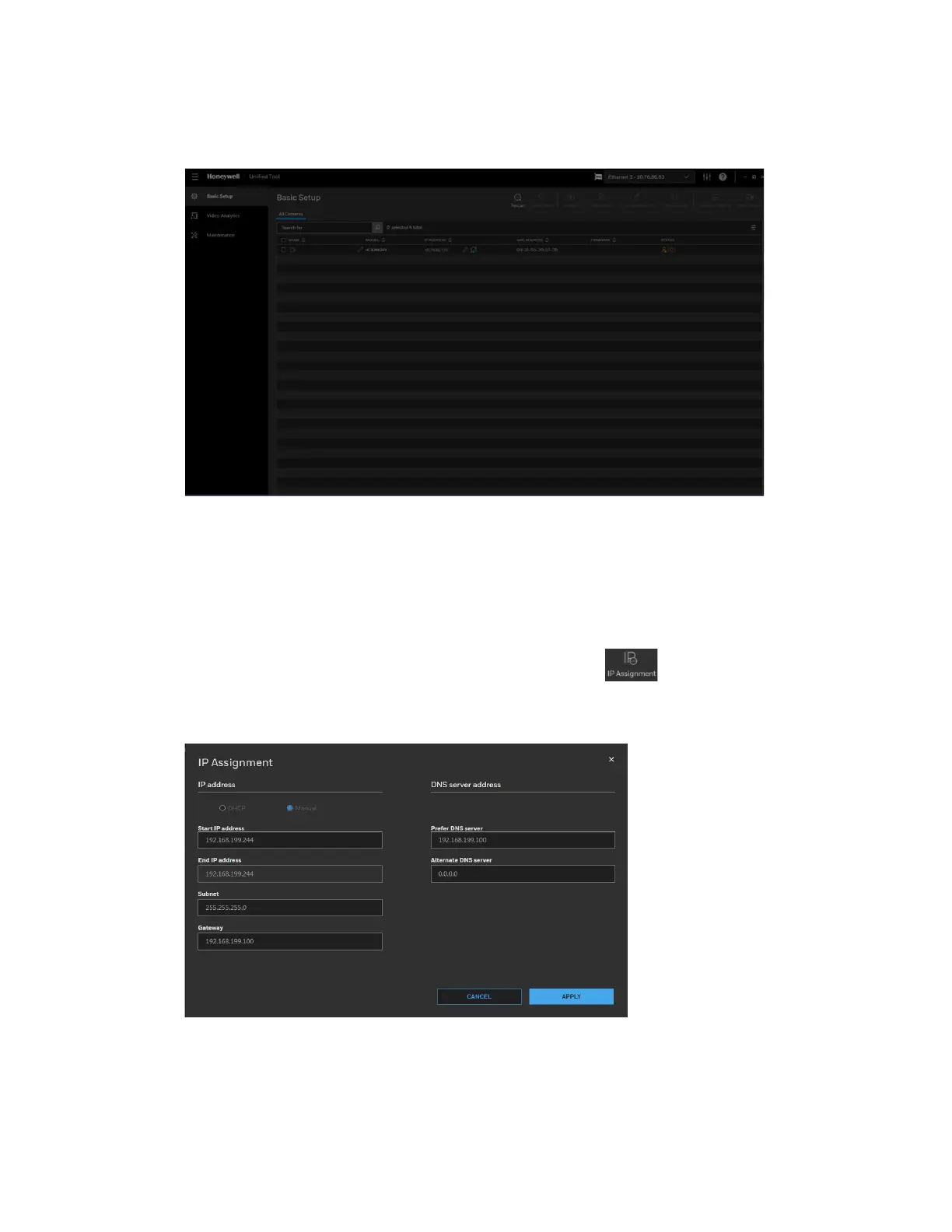

Figure 6 Device List
Assigning a New IP Address to a Camera
The current IP address of a camera appears in the IP ADDRESS column of the devices
list. You can assign a new static IP address to the camera.
Select the target device(s) as shown in Figure 6, click and the following figure is
displayed:
Figure 7 IP Assignment
Configure IP Address Setting
• To obtain IP address, subnet mask, and default gateway settings automatically,
check DHCP.

Honeywell HC30WF5R1 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \
Number of effective pixels (H x V)	2560 x 1920 pixels
Number of lenses	-
Night vision distance	20 m
Total megapixels	- MP
Maximum resolution	1920 x 1920 pixels
Video formats supported	H.264, H.265, M-JPEG
Thermal frame rate (NTSC)	30 Hz
Supported graphics resolutions	1536 x 1536, 1920 x 1920
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Maximum memory card size	256 GB
Ethernet LAN (RJ-45) ports	1
DC output voltage	12
Power source type	DC, PoE
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	59.7 mm
Weight	820 g
Diameter	159.95 mm
Package weight	1500 g
