Honeywell 30 Series IP Cameras User Guide

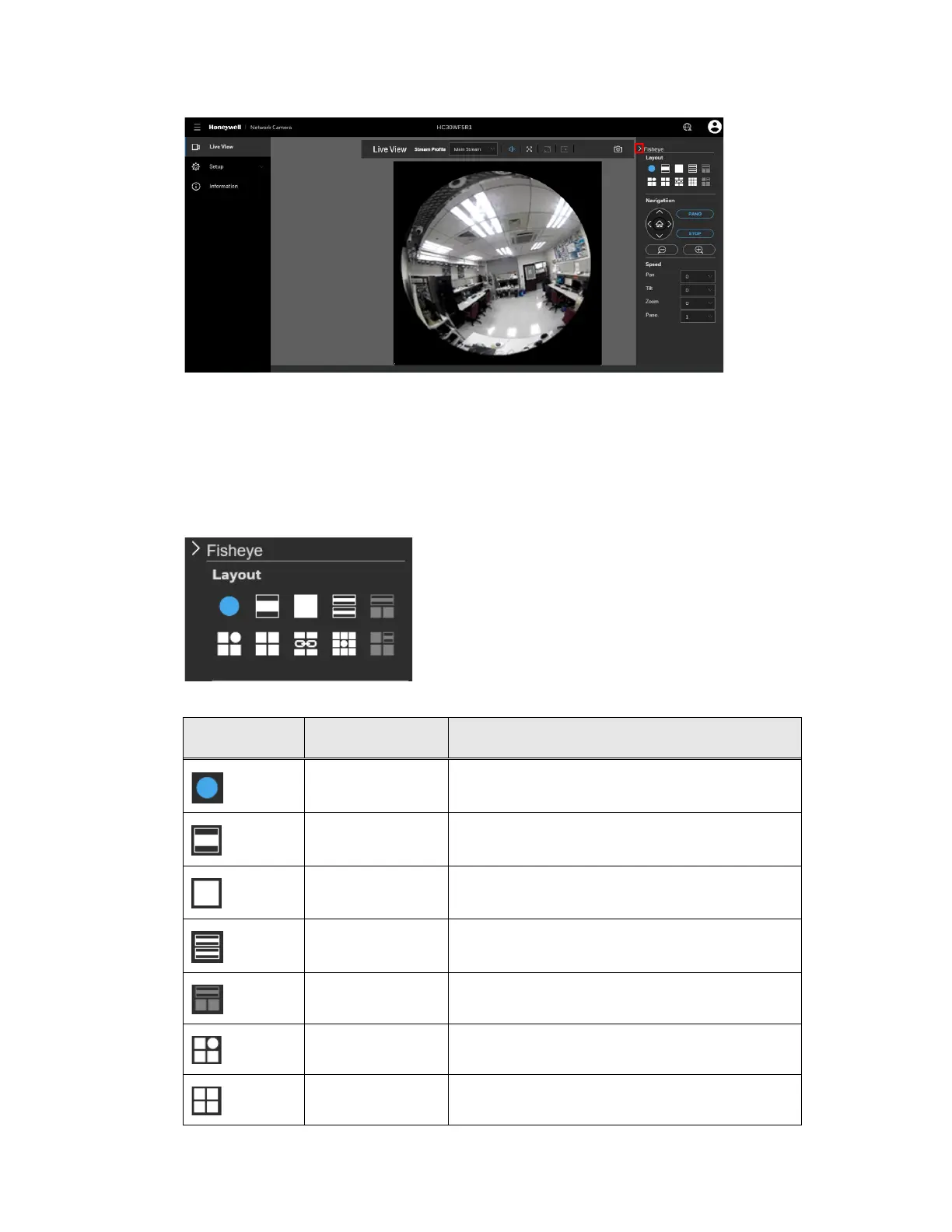

Figure 21 Fisheye Panel
Fisheye Layout
Due to the fisheye lens’ wide coverage of 180º hemispheric and 360º panoramic views
and to manipulate the details within, the following types of layout are provided:
Figure 22 Fisheye Layout
Table 2 Fisheye Layout
Layout Display Mode Description
1O One original view
1P One panoramic view
1R One regional view
2P Two panoramic views
1P2R One panoramic and two regional views (Wall mount)
1O3R One original and three regional views
4R Four regional views

Honeywell HC30WF5R1 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \
Number of effective pixels (H x V)	2560 x 1920 pixels
Number of lenses	-
Night vision distance	20 m
Total megapixels	- MP
Maximum resolution	1920 x 1920 pixels
Video formats supported	H.264, H.265, M-JPEG
Thermal frame rate (NTSC)	30 Hz
Supported graphics resolutions	1536 x 1536, 1920 x 1920
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Maximum memory card size	256 GB
Ethernet LAN (RJ-45) ports	1
DC output voltage	12
Power source type	DC, PoE
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	59.7 mm
Weight	820 g
Diameter	159.95 mm
Package weight	1500 g
