Honeywell HC30WF5R1 User Manual

65
Honeywell 30 Series IP Cameras User Guide

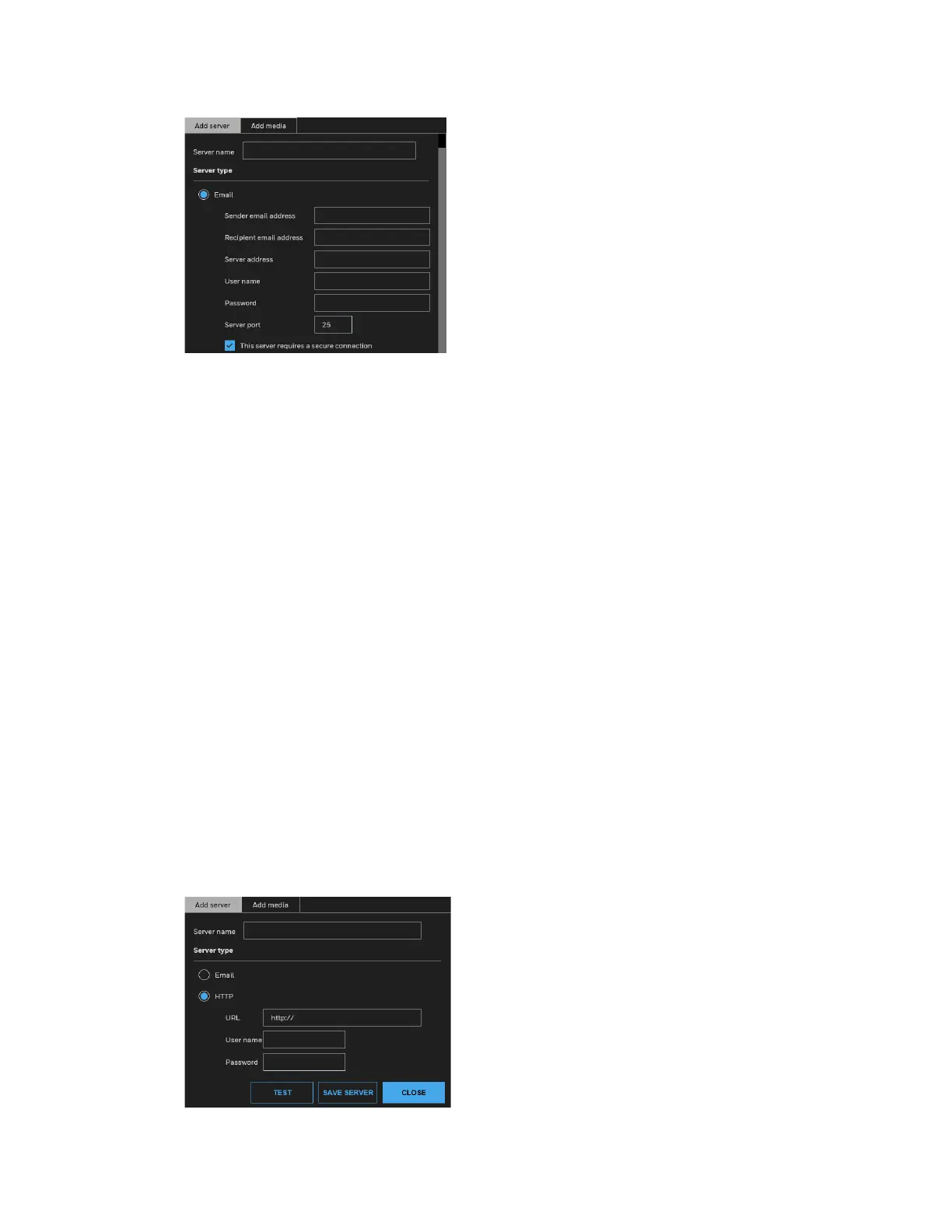

Figure 76 Server Type - Email
• Server name: Enter a name for the server setting.
• Sender email address: Enter the email address of the sender.
• Recipient email address: Enter the email address of the recipient.
• Server address: Enter the domain name or IP address of the email server.
• User name: Enter the user name of the email account if necessary.
• Password: Enter the password of the email account if necessary.
• Server port: The default mail server port is set to 25. You can also manually set
another port.
• If your SMTP server requires a secure connection (SSL), select This server requires a
secure connection.
• To verify if the email settings are correctly configured, click TEST. The result will be
shown in a pop-up window. If successful, you will also receive an email indicating the
result.
Click SAVE SERVER to enable the settings.
After you configure the first event server, the new event server will be automatically
display on the Server list. If you wish to add other server options, click Add server.
Server type - HTTP
Select to send the media files to an HTTP server when a trigger is activated.
Figure 77 Server Type – HTTP
• Server name: Enter a name for the

Honeywell HC30WF5R1 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \
Number of effective pixels (H x V)	2560 x 1920 pixels
Number of lenses	-
Night vision distance	20 m
Total megapixels	- MP
Maximum resolution	1920 x 1920 pixels
Video formats supported	H.264, H.265, M-JPEG
Thermal frame rate (NTSC)	30 Hz
Supported graphics resolutions	1536 x 1536, 1920 x 1920
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Maximum memory card size	256 GB
Ethernet LAN (RJ-45) ports	1
DC output voltage	12
Power source type	DC, PoE
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	59.7 mm
Weight	820 g
Diameter	159.95 mm
Package weight	1500 g
