Honeywell 30 Series IP Cameras User Guide
HTTPS
Go to Setup  Network Setup  HTTPS  HTTPS.
This section explains how to enable authentication and encrypted communication. It
helps protect streaming data transmission over the Internet on higher security level.

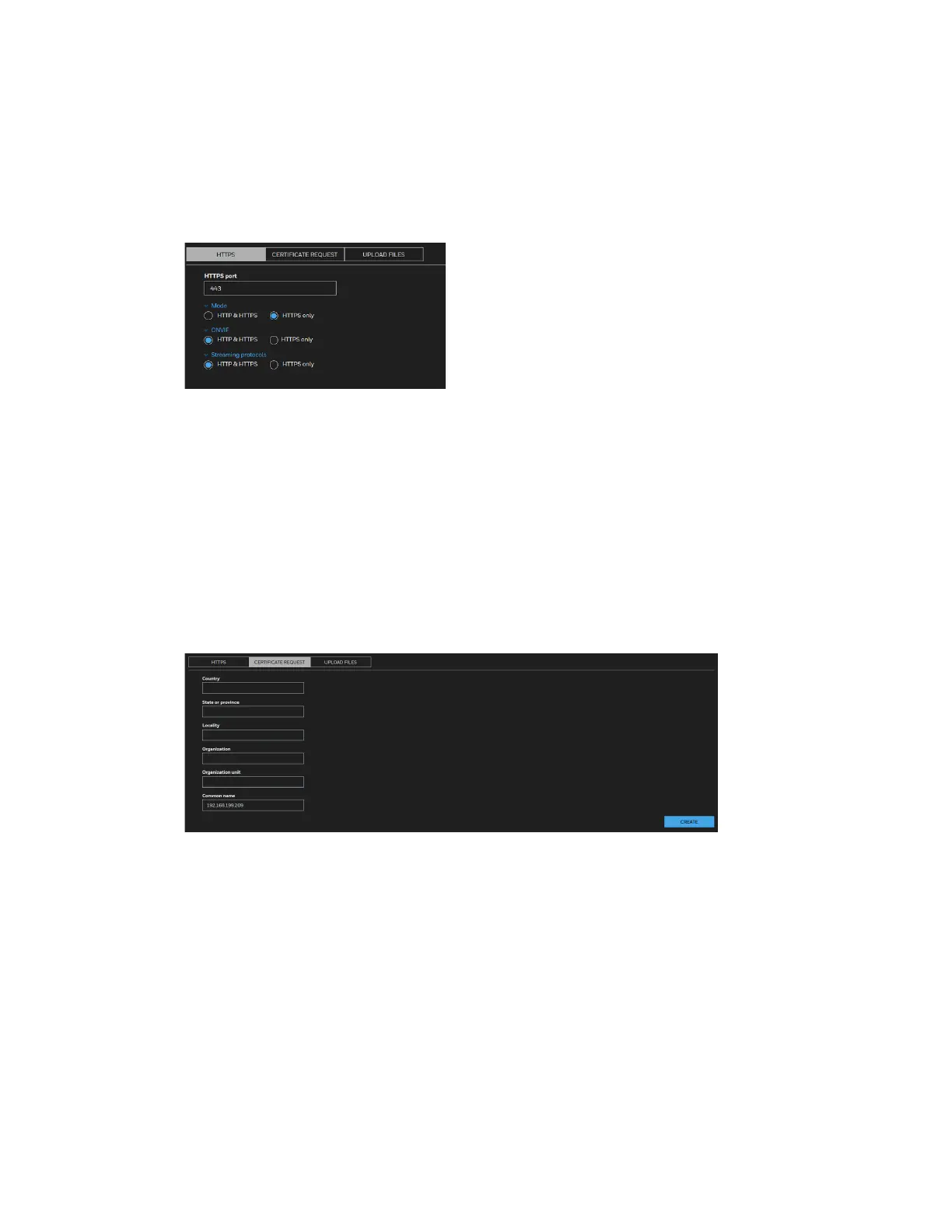

Figure 59 HTTPS
HTTP & HTTPS: Check to enable the web browser to be accessed via HTTP or HTTPS.
HTTPS only: Check to enable the web browser to be accessed via only HTTPS with
higher security level. This option is selected by default.
Certificate Request
Go to Setup  Network Setup  HTTPS  CERTIFICATE REQUEST.
You can fill in certificate information and the certificate request file can be exported to
the certificate issuing authority for signing and then being imported to camera.
Figure 60 Certificate Request
Enter the information of Country, State or province, Locality, Organization and
Organization unit. Click CREATE.
Click EXPORT to export the certificate request to your local computer. After you get the
signing certificate from the certificate issuing authority, click CHOOSE FILE and
UPLOAD to import it to the camera. The imported certificate will replace the original
self-signed certificate of the camera.
After the certificate file is uploaded successfully, if you want to remove the certificate,
click REMOVE.
Upload files
Go to Setup  Network Setup  HTTPS  UPLOAD FILES.

Honeywell HC30WF5R1 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \
Number of effective pixels (H x V)	2560 x 1920 pixels
Number of lenses	-
Night vision distance	20 m
Total megapixels	- MP
Maximum resolution	1920 x 1920 pixels
Video formats supported	H.264, H.265, M-JPEG
Thermal frame rate (NTSC)	30 Hz
Supported graphics resolutions	1536 x 1536, 1920 x 1920
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Maximum memory card size	256 GB
Ethernet LAN (RJ-45) ports	1
DC output voltage	12
Power source type	DC, PoE
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	59.7 mm
Weight	820 g
Diameter	159.95 mm
Package weight	1500 g
