Honeywell 30 Series IP Cameras User Guide
The main page includes the following areas: system menu, live view tool bar, language
selection and user account settings.

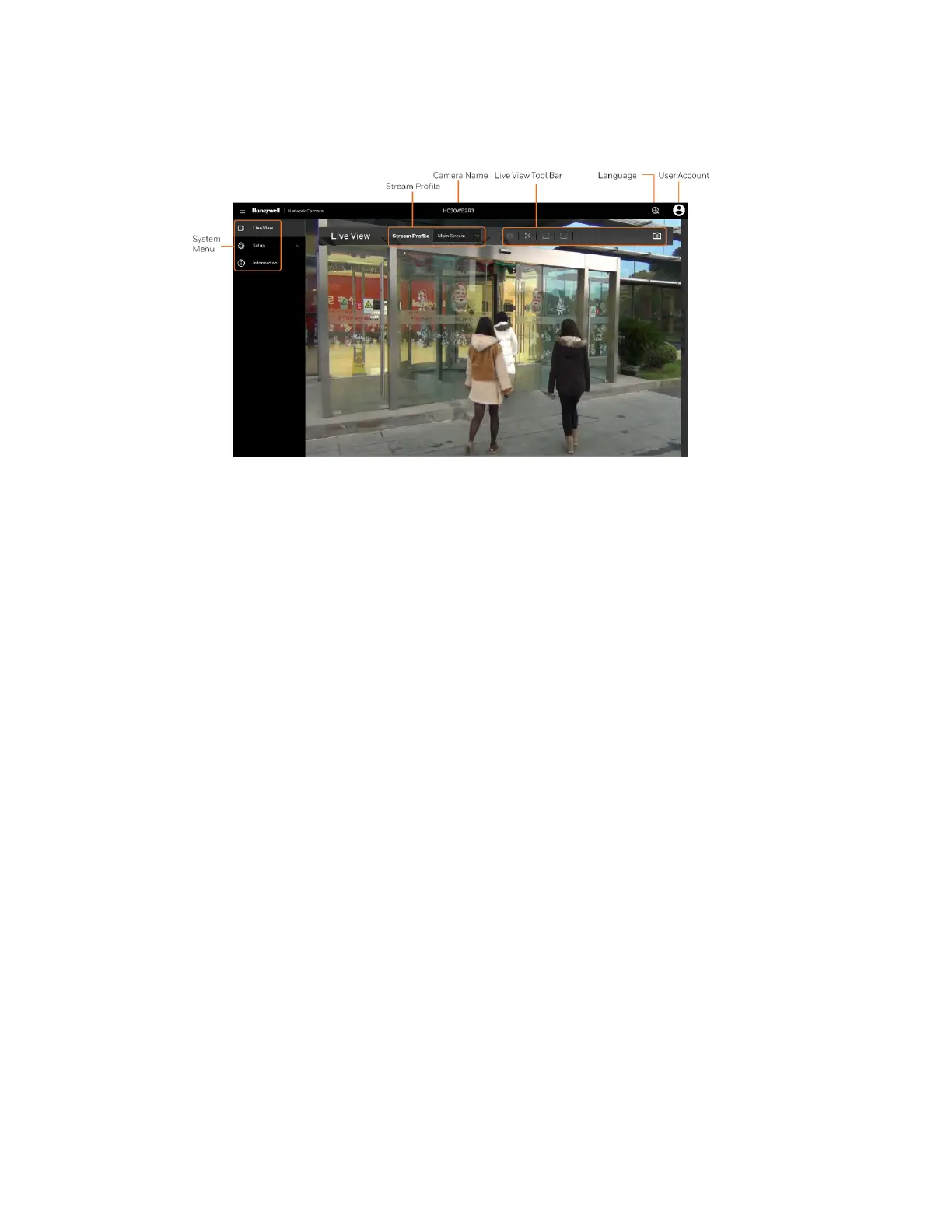

Figure 17 Main Page
The main page of the Fisheye model (HC30WF5R1) is different from the other models.
For the main page of the Fisheye model, see Fisheye Main Page on page 16.
System Menu
When you log in to the camera via the web client, the main page opens by default. To
access the Setup page or Information page, select the corresponding tab.
Stream Profile
In the Stream Profile list, select Main Stream, Sub Stream, or Third Stream to set the
stream profile.
Main Stream
Delivers high definition video for real-time monitoring, recording,
and storage. Uses the most bandwidth.
Sub Stream Delivers low/standard definition video, typically for remote
monitoring in lower network bandwidth environments.
Third Stream
Delivers low definition video.
The properties for each stream type are configured on the Setup  Camera Setup 
Video page (see
Configuring Video Settings on page 27).
Camera Name
You can change the camera name according to your needs. For more information, see
Configuring System General Settings on page 76.

Honeywell HC30WF5R1 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \
Number of effective pixels (H x V)	2560 x 1920 pixels
Number of lenses	-
Night vision distance	20 m
Total megapixels	- MP
Maximum resolution	1920 x 1920 pixels
Video formats supported	H.264, H.265, M-JPEG
Thermal frame rate (NTSC)	30 Hz
Supported graphics resolutions	1536 x 1536, 1920 x 1920
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Maximum memory card size	256 GB
Ethernet LAN (RJ-45) ports	1
DC output voltage	12
Power source type	DC, PoE
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	59.7 mm
Weight	820 g
Diameter	159.95 mm
Package weight	1500 g
