Honeywell 30 Series IP Cameras User Guide

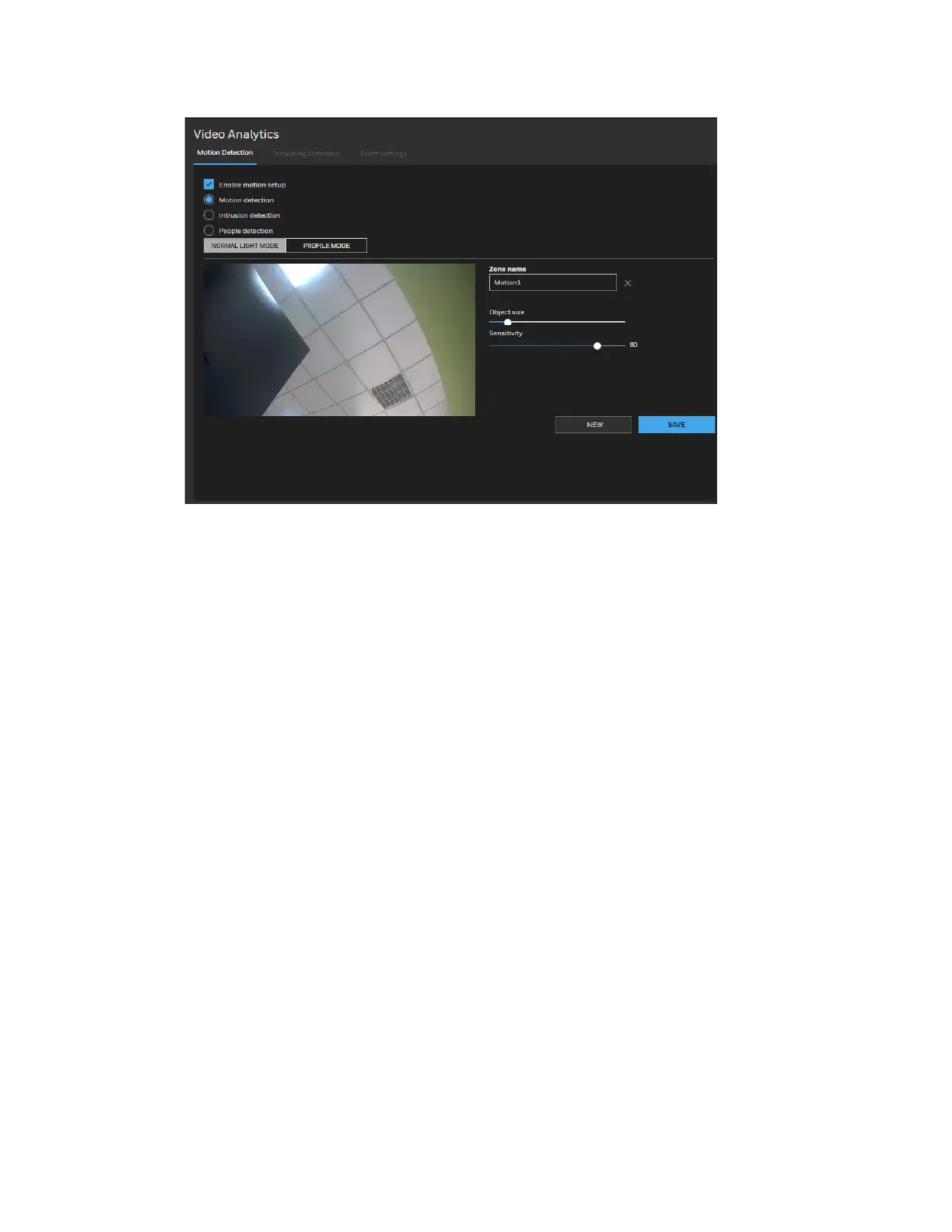

Figure 65 Configuring Motion Detection Settings

Intrusion Detection

Note: Fisheye model (HC30WF5R1) doesn’t support intrusion detection function.

The intrusion detection function detects people motions in customized windows. If a

people motion is detected, the frame of the customized window will become flashing

red.
