Honeywell 30 Series IP Cameras User Guide
time. By default, the start and end time of day mode are set to 07:00 and 18:00.
Sensitivity of IR: Adjust the responsiveness of the IR filter to lighting conditions as Low,
Normal, or High.
Configuring Video Settings
Go to Setup  Camera Setup  Video.
This section describes how to configure viewing window and video streaming properties
(format, resolution, frame rate, bit rate, I-frame interval and so on.).
Mode
Go to Setup  Camera Setup  Video  MODE.
In MODE tab, you can set the pixel mode for different cameras.
Note:
Changing the video mode will clear the following settings: privacy mask, exposure
widow, motion and focus window.

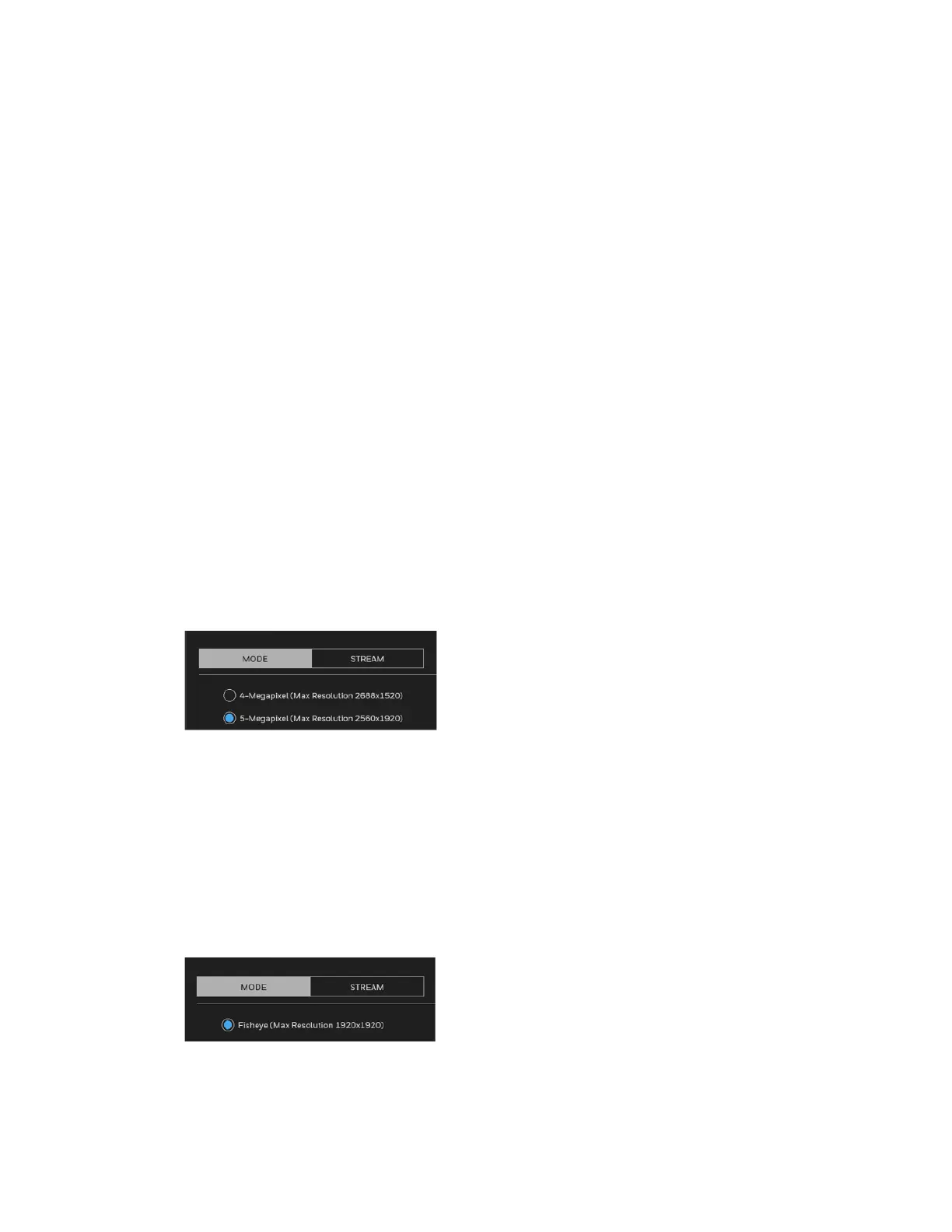

Figure 32 Mode Tab 1
4-Megapixel (Max Resolution 2688x1520): Select it and the maximum resolution will
be 2688x1520. The aspect ratio will be 16:9. This mode applies to
HC30W45R3/HC30W45R2/HC30WB5R1/HC30WB5R2/HC30WE5R3/
HC30WE5R2/HC30W25R3/HC30W25R3-12V cameras (see Figure 32).
5-Megapixel (Max Resolution 2560x1920): Select it and the maximum resolution will
be 2560x1920. The aspect ratio will be 4:3. This mode applies to
HC30W45R3/HC30W45R2/HC30WB5R1/HC30WB5R2/HC30WE5R3/
HC30WE5R2/HC30W25R3/HC30W25R3-12V cameras (see Figure 32).
Figure 33 Mode Tab 2
Fisheye (Max Resolution 1920x1920): Select it and the maximum resolution will be
1920x1080. This mode applies to HC30WF5R1 cameras (see Figure 33).

Honeywell HC30WF5R1 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \
Number of effective pixels (H x V)	2560 x 1920 pixels
Number of lenses	-
Night vision distance	20 m
Total megapixels	- MP
Maximum resolution	1920 x 1920 pixels
Video formats supported	H.264, H.265, M-JPEG
Thermal frame rate (NTSC)	30 Hz
Supported graphics resolutions	1536 x 1536, 1920 x 1920
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Maximum memory card size	256 GB
Ethernet LAN (RJ-45) ports	1
DC output voltage	12
Power source type	DC, PoE
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	59.7 mm
Weight	820 g
Diameter	159.95 mm
Package weight	1500 g
