19
Honeywell 30 Series IP Cameras User Guide

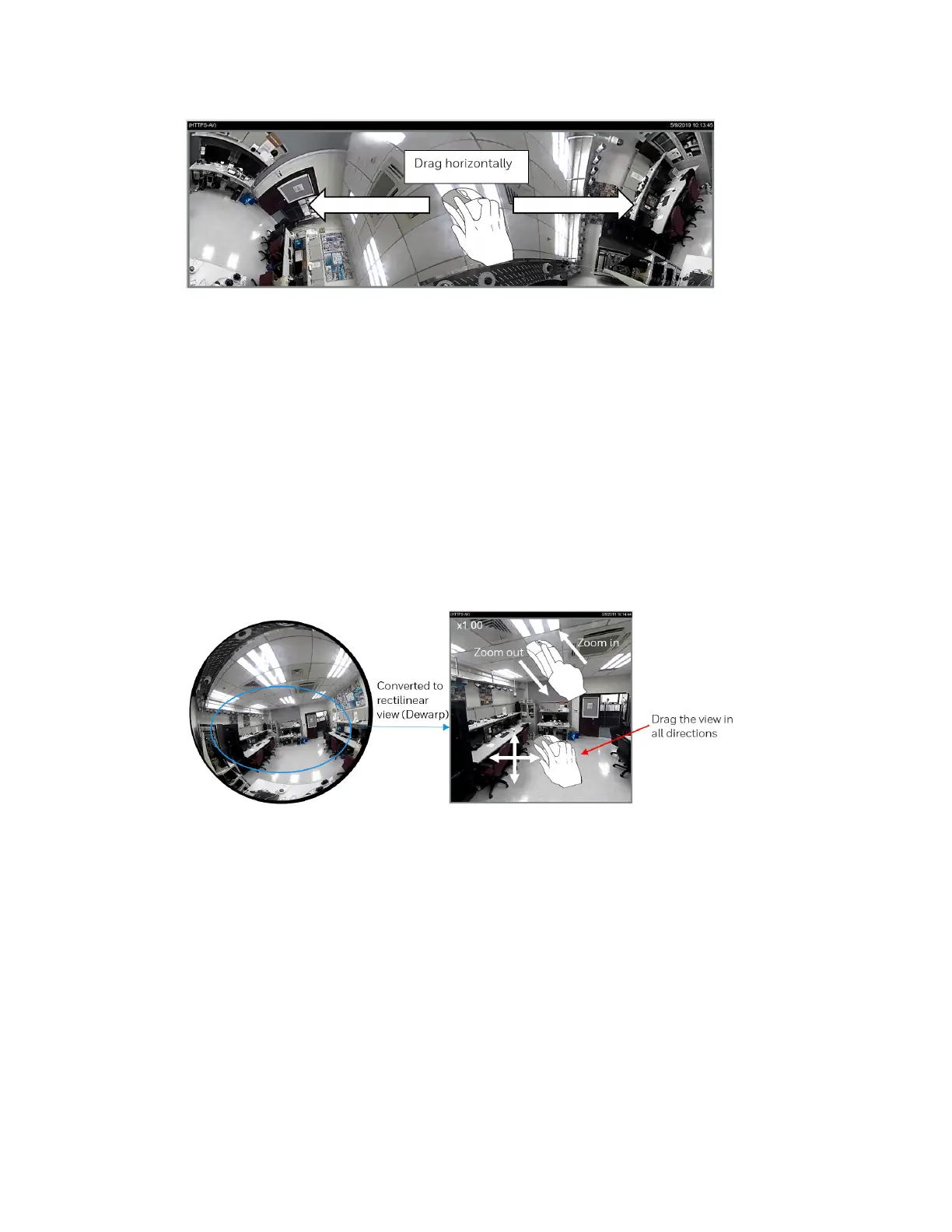

Figure 24 One Panoramic View
Note:
This layout is applicable to an overview, the Zoom in/out function does not apply in
this mode.
One Regional View
This layout provides access to one image section within the hemisphere. You can zoom
in or out (using the mouse wheel or PTZ panel) or move to other areas in the hemisphere
using mouse clicks and drags. A single click on an object can bring the object to the
center of your view window. Click and hold down the left mouse button, and you can
drag the view in all directions.
Figure 25 One Regional View
One Panoramic and Two Regional Views
This layout provides access to two regional views and the reference to their relative
positions on a panoramic view. This layout is available only when you select the Wall
mount type, see the Video Settings on page 25.
The operations of this layout is similar to the operations of the One Original and Three
Regional Views, see One Original and Three Regional Views on page 20.
Two Panoramic Views
This layout provides simultaneous access to both the left and right sections of a
hemisphere. Both panoramic views are corrected into a more viewable dewarped image.
