Honeywell 30 Series IP Cameras User Guide

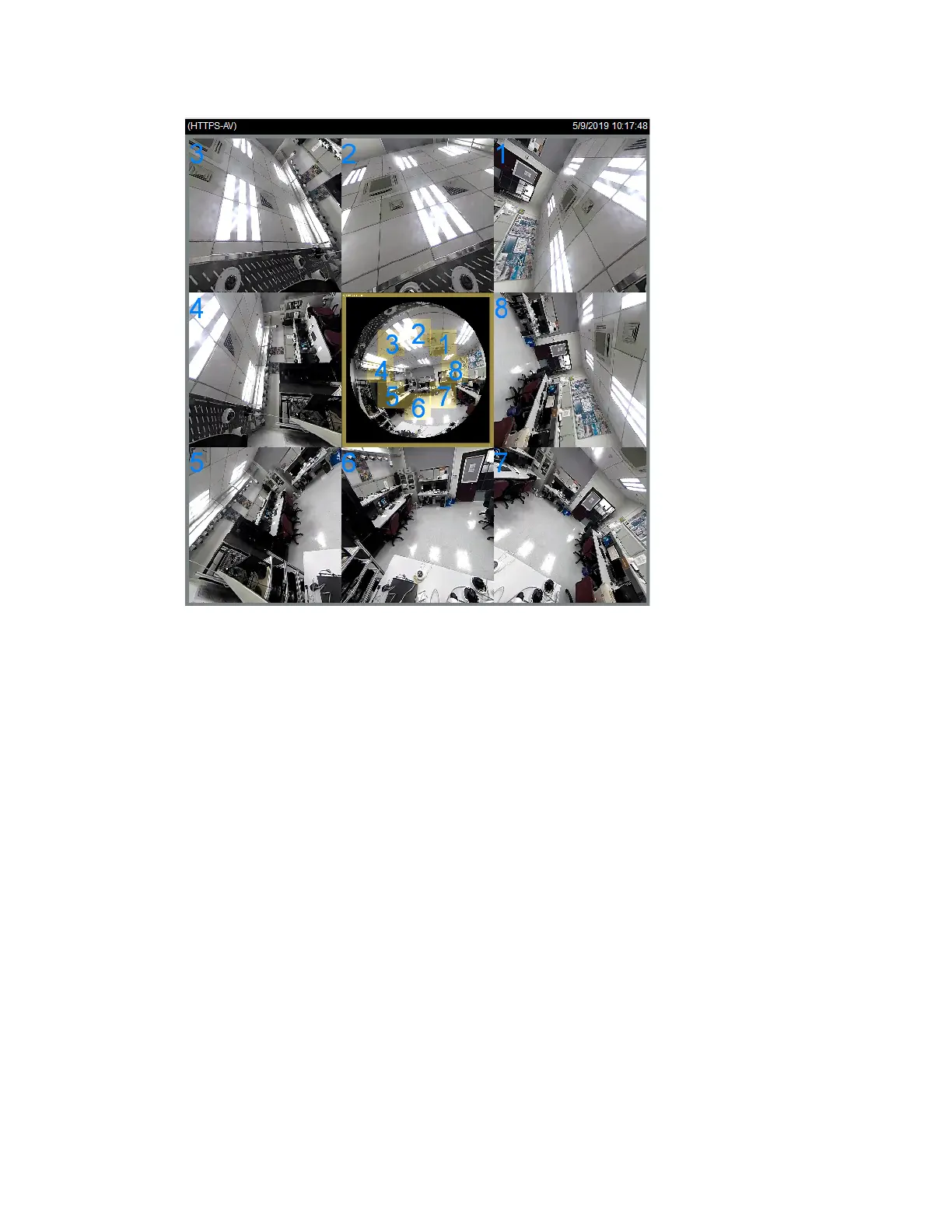

Figure 30 One Original and Eight Regional Views

Note:

If you change the position of a view in hemisphere, e.g., the #3 window, you will lose

the configuration change when switching to another display mode. The live view

window does not automatically save your view section layout.
