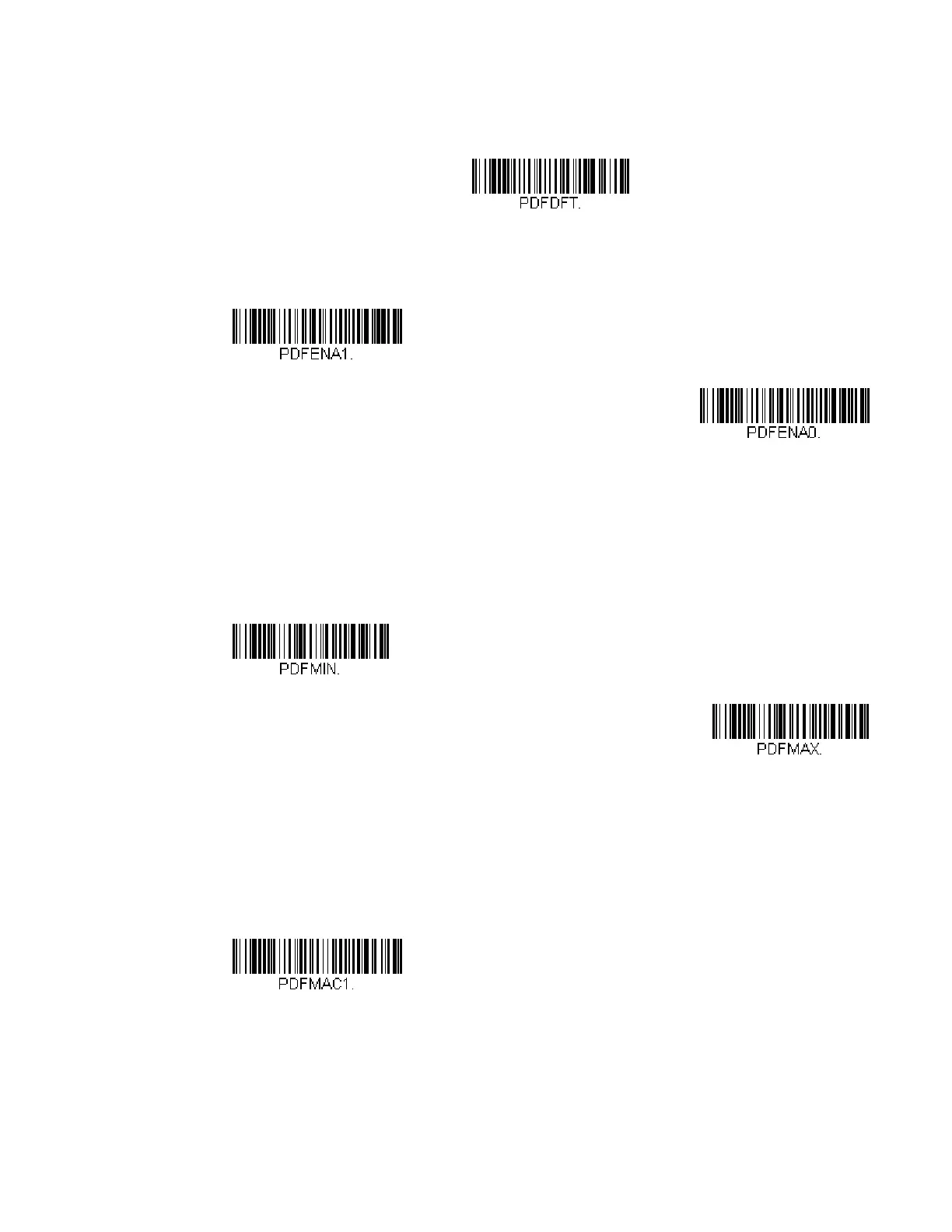

102 HF680 Series User Guide
PDF417
< Default All PDF417 Settings >
PDF417 On/Off
PDF417 Message Length
Scan the barcodes below to change the message length. Refer to Message Length
Description (page 68) for additional information. Minimum and Maximum lengths
= 1-2750. Minimum Default = 1, Maximum Default = 2750.
MacroPDF417
MacroPDF417 is an implementation of PDF417 capable of encoding very large
amounts of data into multiple PDF417 barcodes. When this selection is enabled,
these multiple barcodes are assembled into a single data string. Default = On.
* On
Off
Minimum Message Length
* On

Table of Contents

Other manuals for Honeywell HF680

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Honeywell HF680 and is the answer not in the manual?

Honeywell HF680 Specifications

General IconGeneral
Scan PatternArea Image (1280 x 800 pixel array)
Humidity0% to 95% relative humidity, non-condensing
Standby Power0.45 W (90 mA @ 5 VDC)
Light Levels0 to 100, 000 lux
Decode CapabilityReads standard 1D, PDF, 2D, Postal and OCR symbologies
InterfaceUSB, RS232, Keyboard Wedge
Operating Temperature0°C to 50°C (32°F to 122°F)
Storage Temperature-40°F to 158°F (-40°C to 70°C)
DropDesigned to withstand 1.5 m (5 ft) drops
Input Voltage4.0 V DC to 5.5 V DC
