74 HF680 Series User Guide
Full ASCII
If Full ASCII Code 39 decoding is enabled, certain character pairs within the
barcode symbol will be interpreted as a single character. For example: $V will be
decoded as the ASCII character SYN, and /C will be decoded as the ASCII character
#. Default = Off.
Character pairs /M and /N decode as a minus sign and period respectively.
Character pairs /P through /Y decode as 0 through 9.
Code 39 Code Page
Code pages define the mapping of character codes to characters. If the data
received does not display with the proper characters, it may be because the
barcode being scanned was created using a code page that is different from the
one the host program is expecting. If this is the case, scan the barcode below,

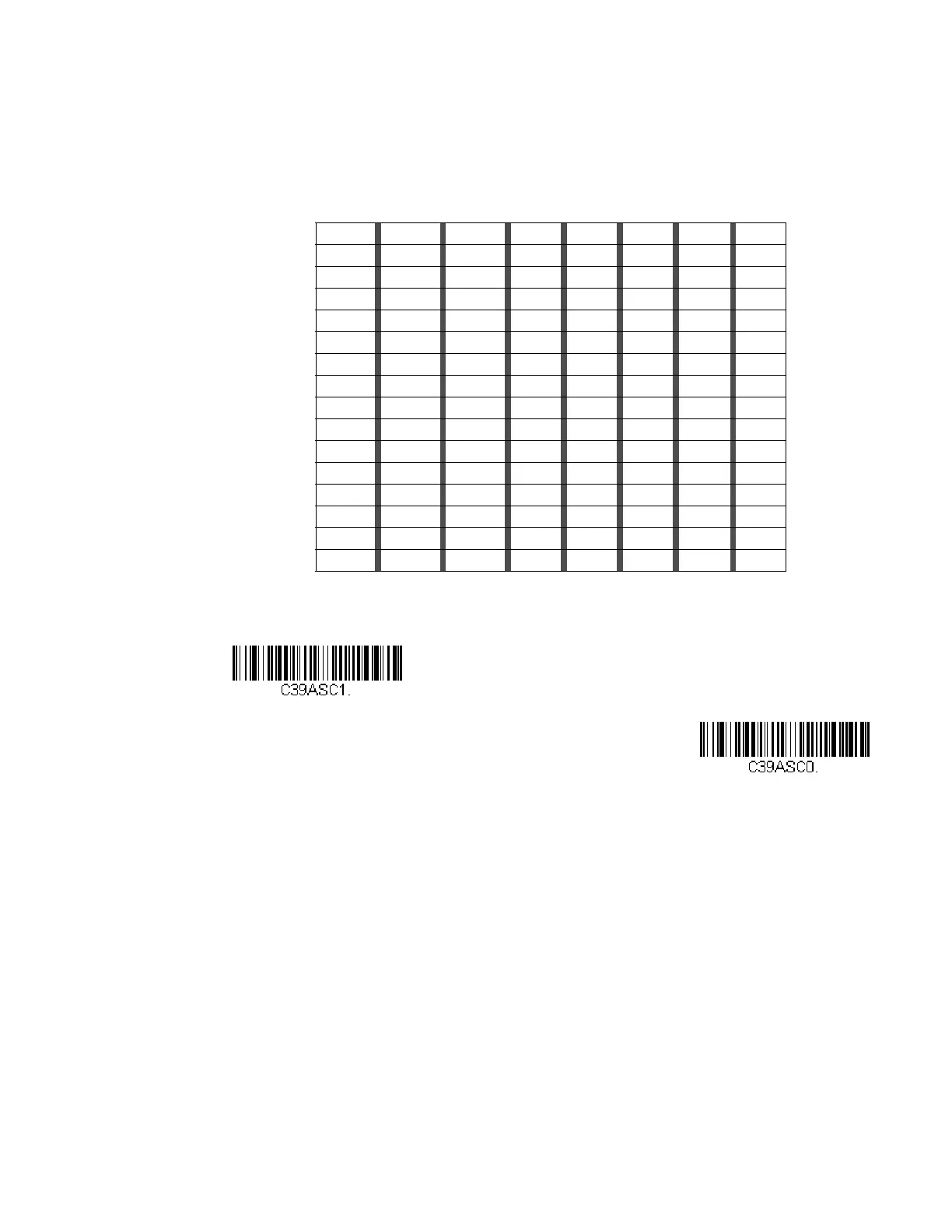

NUL %U DLE $P SP SPACE 00@%VPP‘%Wp+P
SOH $A
DC1 $Q !/A 11 AAQQ a+Aq+Q
STX $B
DC2 $R “/B 22BB RRb+Br+R
ETX $C
DC3 $S #/C 33CC SS c+Cs+S
EOT $D
DC4 $T $/D 44DD TTd+Dt+T
ENQ $E
NAK $U %/E 55EE UUe+Eu +U
ACK $F
SYN $V &/F 66FFVV f+Fv+V
BEL $G
ETB $W ‘/G77GGWWg+Gw+W
BS $H
CAN $X (/H 88HH XXh+Hx+X
HT $I
EM $Y )/I 99II YYi+Iy+Y
LF $J
SUB $Z */J :/ZJJ ZZj+Jz+Z
VT $K
ESC%A +/K ;%FKK[%Kk+K{%P
FF $L
FS %B ,/L <%GLL\%Ll+L|%Q
CR $M
GS %C -- =%HMM]%Mm+M}%R
SO$N
RS %D .. >%INN^%Nn+N~%S
SI$O
US %E //O ?%JOO_%Oo+ODEL %T
Full ASCII On
* Full ASCII Off

Honeywell HF680 Specifications

General

Scan Pattern	Area Image (1280 x 800 pixel array)
Humidity	0% to 95% relative humidity, non-condensing
Standby Power	0.45 W (90 mA @ 5 VDC)
Light Levels	0 to 100, 000 lux
Decode Capability	Reads standard 1D, PDF, 2D, Postal and OCR symbologies
Interface	USB, RS232, Keyboard Wedge
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Drop	Designed to withstand 1.5 m (5 ft) drops
Input Voltage	4.0 V DC to 5.5 V DC
